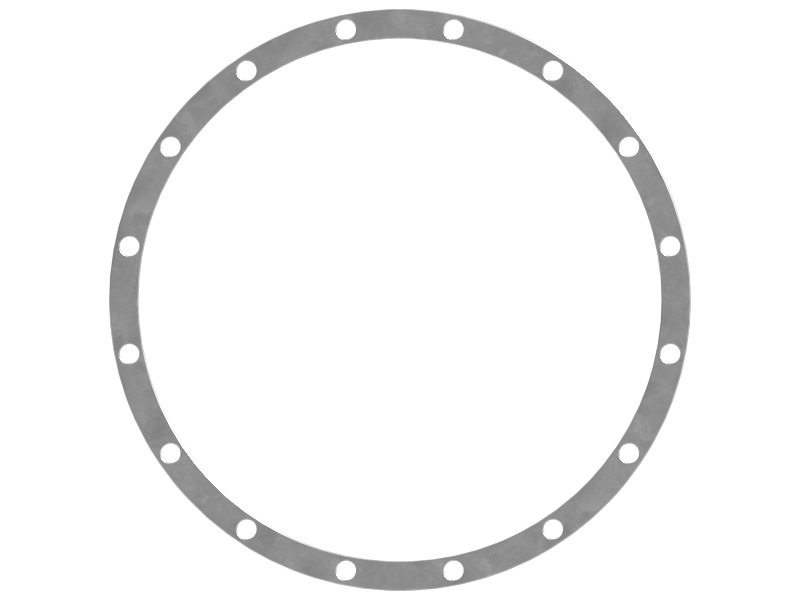

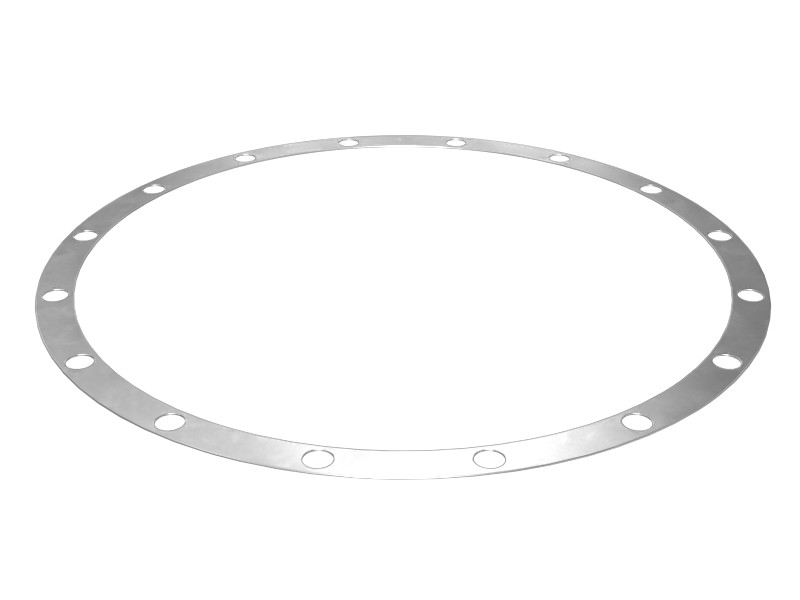

Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Hole Size | 13.5 (16X) mm (0.53 (16X) in) |
|---|---|
| Inside Diameter | 351.5 mm (13.84 in) |
| Material | Steel/Silicone Rubber |
| Outside Diameter | 390.3 mm (15.37 in) |
| Style | Flat Plate |
| Thickness | 0.6 mm (0.02 in) |
| Type | Round Standard |
Compatible Equipment
- Excavators: 320D L, 323D L, 320D2 GC, 320D GC, 320D2 L, 320D RR, 320E, 323D2 L, 320, 320 GX, 323 GX, 320 GC, 323, 323D, 323D2, 320D FM, 320D, 320D2
