Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications

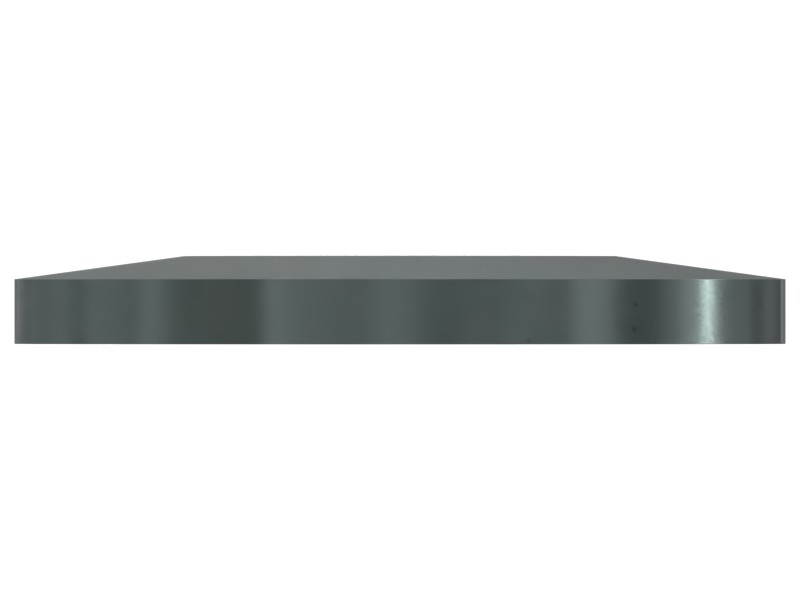

| Gasket Type | Conical (Disc) |
|---|---|
| Coating | None |
| Fits Bolt Size | M8 mm |
| Outside Diameter | 15 mm (0.591 in) |
| Inside Diameter | 8.4 mm (0.331 in) |
| Thickness | 1.7 mm (0.067 in) |
Compatible Equipment
- Track Loaders: 990K, 995, 994K, 972, 992, 982, 993
- Cold Planers: PL87, PL72, PL83
- Compactors: 814, 824K, 815, 825K, 816, CB10
- Engines: C175-16
- Excavators: 330, 316 GC, 313 GC, 313, 340, 352, 355, 320 GC, 333, 330GC, 326, 350, 323, 320, 315 GC, 325, 335, 326GC, 120 GC, 330 GC, 326 GC, 320 GX, 315, 323 GX, 312 GC, 3508B, 312 GX, 316 GX, 323GC, 336 GC, 323 GC, 336, 313 GX
- Skid Steer Loaders: 24
- Motor Graders: 140 GC, 18, 140K, 120, 14, 160K, 16M3, 14M, 16, 12K, 349 GC
- Wheel Excavators: M315, M315GC, M320
- Dozers: D8, D8T, D6T, D8R, D6R, D6N, D6R XL, D6R LGP, D7R, D7R II, D7E, D6T LGP, D7, D6R II, D9T
- Wheel Loaders: 950 GC, 972L, 966L, 950L, 980L, 966H, R1700 XE, 950, 966, 836, M314, 834, 980, 962L
- Off-Highway Trucks: 777, 796 AC, 798 AC, 794 AC, 773, 770G, 785, 797F, 789, 772G, 785D, 789D, 793D, 775G, 793
Additional information
| Machine Model | 120, 120 GC, 12K, 14, 140 GC, 140K, 14M, 16, 160K, 16M3, 18, 24, 312 GC, 312 GX, 313, 313 GC, 313 GX, 315, 315 GC, 316 GC, 316 GX, 320, 320 GC, 320 GX, 323, 323 GC, 323 GX, 323GC, 325, 326, 326 GC, 326GC, 330, 330 GC, 330GC, 333, 335, 336, 336 GC, 340, 349 GC, 350, 3508B, 352, 355, 770G, 772G, 773, 775G, 777, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 824K, 825K, 834, 836, 950, 950 GC, 950L, 962L, 966, 966H, 966L, 972, 972L, 980, 980L, 982, 990K, 992, 993, 994K, 995, C175-16, CB10, D6N, D6R, D6R II, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, D7R II, D8, D8R, D8T, D9T, M314, M315, M315GC, M320, PL72, PL83, PL87, R1700 XE |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines |
| Part Source | Genuine OEM |
