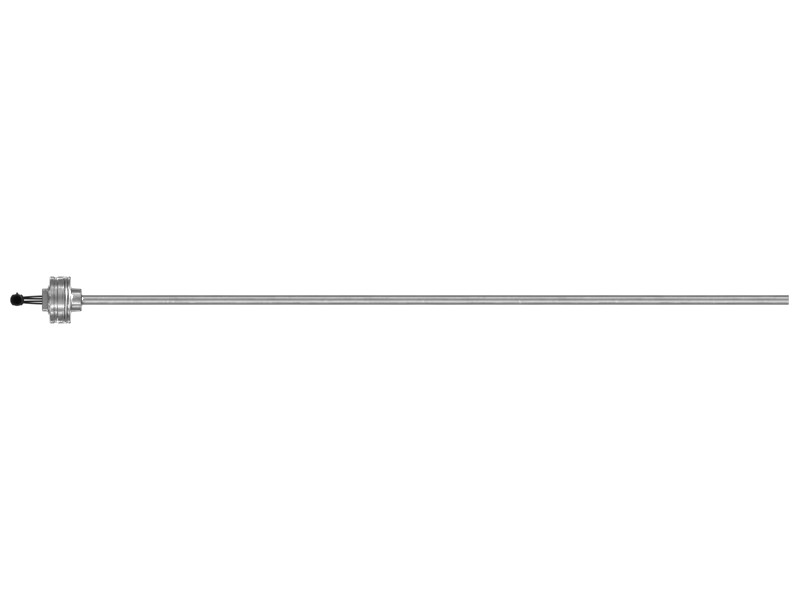

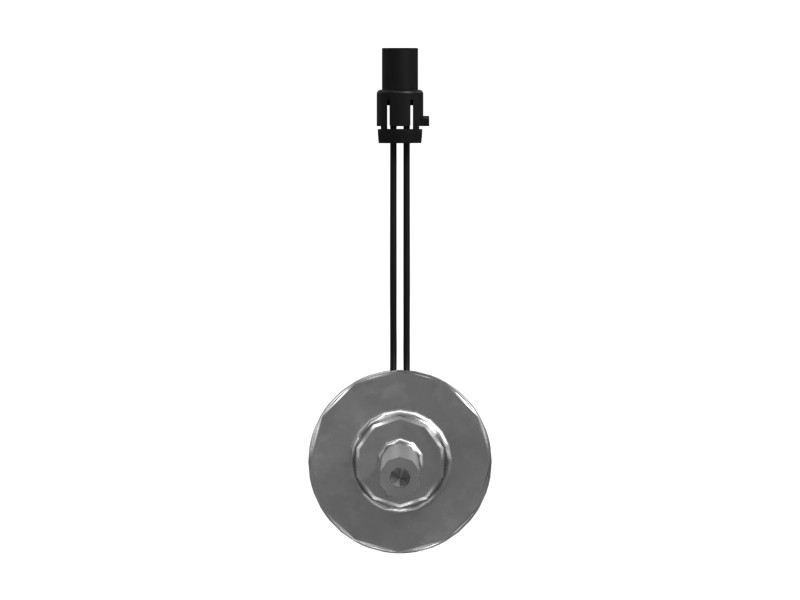

490-0656 In-Cylinder Linear Position Sensor
Cat® In-Cylinder Linear Position Sensor
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The position sensor (for example, part number 490-0656) measures the displacement of the hydraulic cylinder.
Features
- Sensor Type: Magnetostrictive
- Sensor Output: PWM
- Supply Voltage: 7-11 V
- Sensor Length: 740.5 mm (29.15 in)
- Stroke Length: 640 mm (25.20 in)
- Operating Temperature: -40° F to +248° F (-40° C to +120° C)
Applications
Cat sensors are suited to specific applications. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Stainless Steel |
|---|---|
| Shank Diameter | 48 mm (1.89 in) |
| Length | 740.5 mm (29.15 in) |
| Sensor Type | Magnetostrictive |
| Lead Length | 110 mm (4.33 in) |
Additional information
| Part Source | Genuine OEM |
|---|
