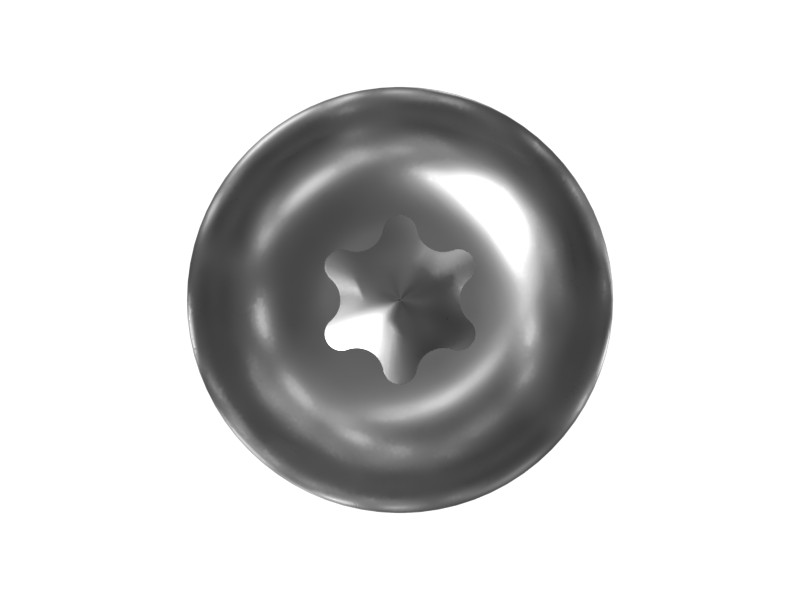

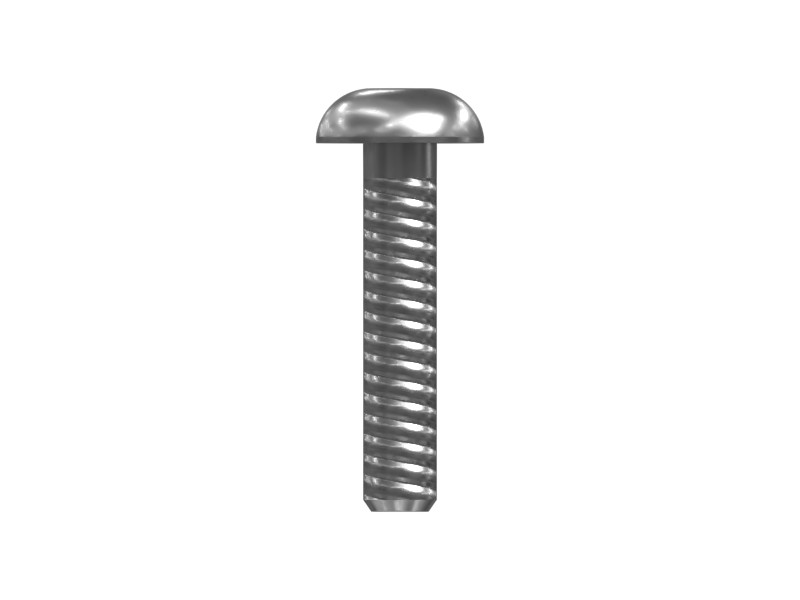

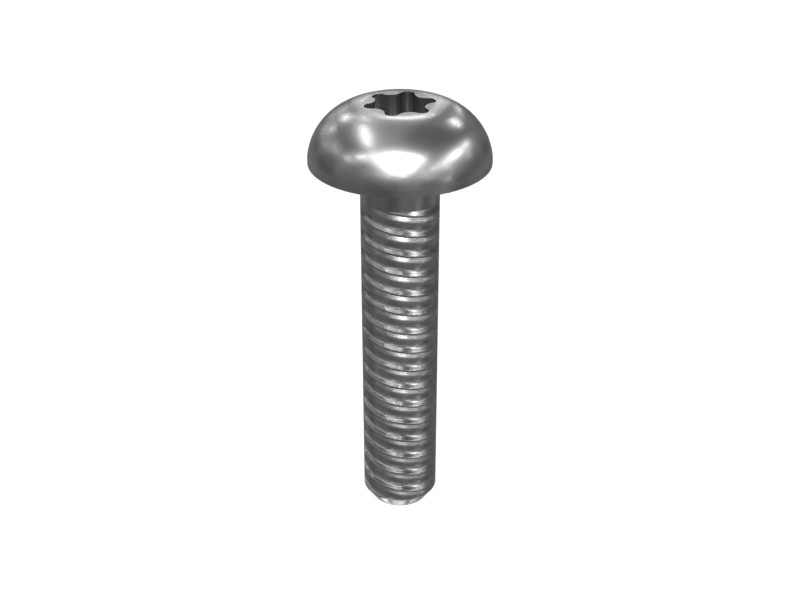

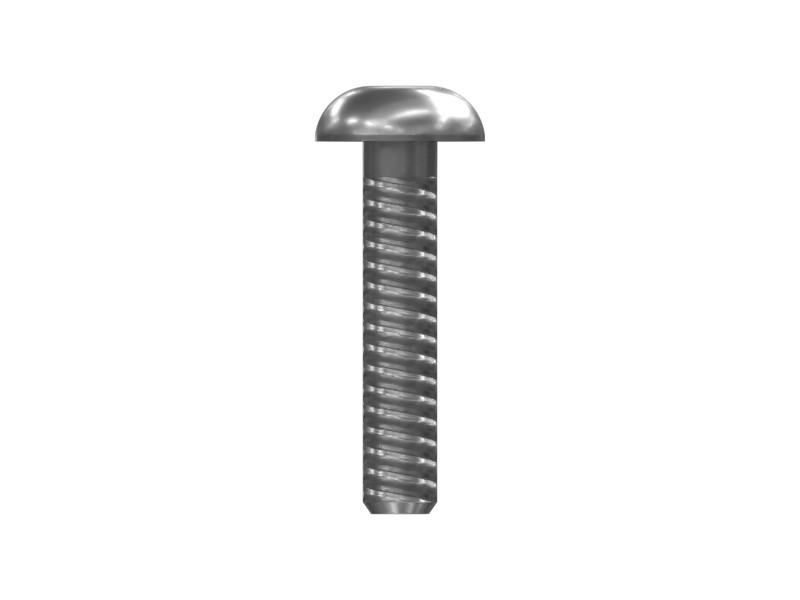

484-6703 M5x0.8 Thread Truss Head Screw
Cat® truss head screw low-profile fasteners provide secure, neat connections for components in the Diesel Exhaust Fluid system
Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Bolt Type | Rounded Head (Pan) |
|---|---|
| Thread Direction | RH |
| Thread Size | M5 mm (0 in) |
| Class or Grade | Austenitic ISO 3506-1-A2 |
| Bolt Length | 25 mm (0.984 in) |
| Head Type | Truss |
| Coating | Not Specified |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Length | 25 mm |
| Handle Length | None mm (0.094 in) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 963K, 982, 972, 953, 973K, 963, 826K, 953K
- Cold Planers: PL87, PM620, PL83, PM622, PL72
- Compactors: 825K, 824K, 834K, 816, 815, 814, C9.3B, C13B
- Engines: C15, C13, C18
- Excavators: 374F, 330, 390F L, 349F L, 374, 637K, 352F, 390F, 349, 621K, 352, 330 GC, 326, XQP200, 336, 340, 345 GC, 395, 350, 374F L, 3516B, 350MHPU, 355, 323, 335, 333, 336F, 330GC, 336F L, 336 GC, 336F L XE, 336F LN, 335F LCR, 3508B
- Asphalt Pavers: AD45
- Motor Graders: 140 GC, 349 GC, 120, 18, 16, 16M3, 14
- Wheel Excavators: MD6200
- Dozers: D7, D9, D8, D7E, D8T, D6T, D6T LGP, D6N, D9T
- Wheel Loaders: 938M, 988K, 980, 966, RM500B, 950, R2900 XE, 836, R1700K, RM400, 926M, 950 GC, 834
- Off-Highway Trucks: 772G, 730, 745C, 770G, 745, 725C2, 725, 735, 740 GC, 740
Additional information
| Machine Model | 120, 14, 140 GC, 16, 16M3, 18, 323, 326, 330, 330 GC, 330GC, 333, 335, 335F LCR, 336, 336 GC, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349, 349 GC, 349F L, 350, 3508B, 350MHPU, 3516B, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 621K, 637K, 725, 725C2, 730, 735, 740, 740 GC, 745, 745C, 770G, 772G, 814, 815, 816, 824K, 825K, 826K, 834, 834K, 836, 926M, 938M, 950, 950 GC, 953, 953K, 963, 963K, 966, 972, 973K, 980, 982, 988K, AD45, C13, C13B, C15, C18, C7.1, C9.3B, D6N, D6T, D6T LGP, D7, D7E, D8, D8T, D9, D9T, MD6200, PL72, PL83, PL87, PM620, PM622, R1700K, R2900 XE, RM400, RM500B, XQP200 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
