Description

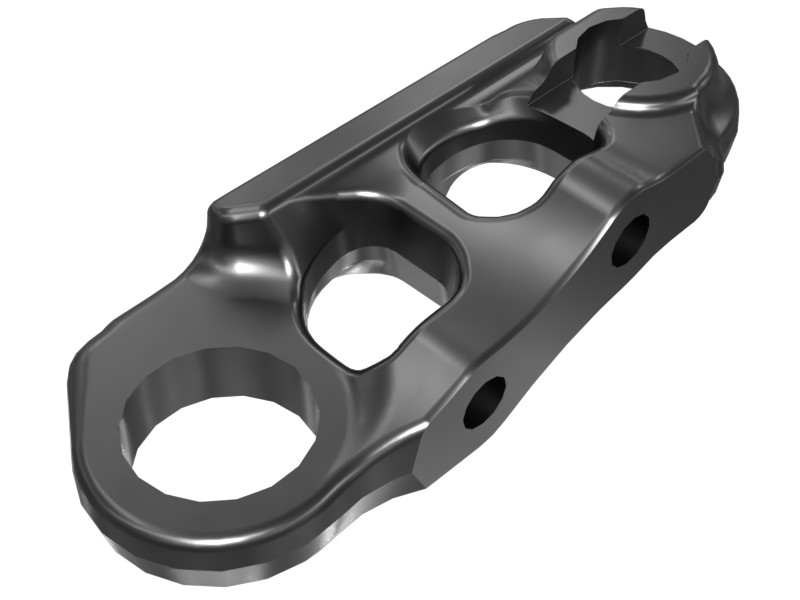

The track link is part of the link group and provides the running track for the machine. The quality is suited to equipment requirements and meets your expectations.
Features
Hardened Steel Track Link
Applications
Undercarriage system for Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Main Bolt Thread | M24 |
|---|---|
| Master Link Type | None |
| Overall Width | 129.4 mm (5.1 in) |
| Track Pin Bore Diameter | 47.35 mm (1.864 in) |
| Pin End Bar Thickness | 41.5 mm (1.634 in) |
| Hole to Rail | 70.05 mm (2.758 in) |
| Lug Thickness | 0 mm (0 in) |
| Bushing Bore Diameter | 71.07 mm (2.798 in) |
| Bolt Hole Diameter | 25 mm (0.984 in) |
| Rail to Pin Boss Outside Diameter | 37.6 mm (1.48 in) |
| Pin Retention System | Press Fit |
| Bushing End Bar Thickness | 28.3 mm (1.114 in) |
| Steel Grade | 1E0669 |
| Track Pitch | 215.9 mm (8.5 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Material | Boron Steel |
| Material Description | Steel |
| Overall Length | 317.5 mm (12.5 in) |
| Wear Sensor | No |
| Undercarriage System | GD |
| Overall Height | 59.7 mm (2.35 in) |
Compatible Equipment
- Excavators: 349F L, 349D L, 345D L, 349E, 345C, 352F, 349E L, 345D, 349D2 L, 349D, 349D2
