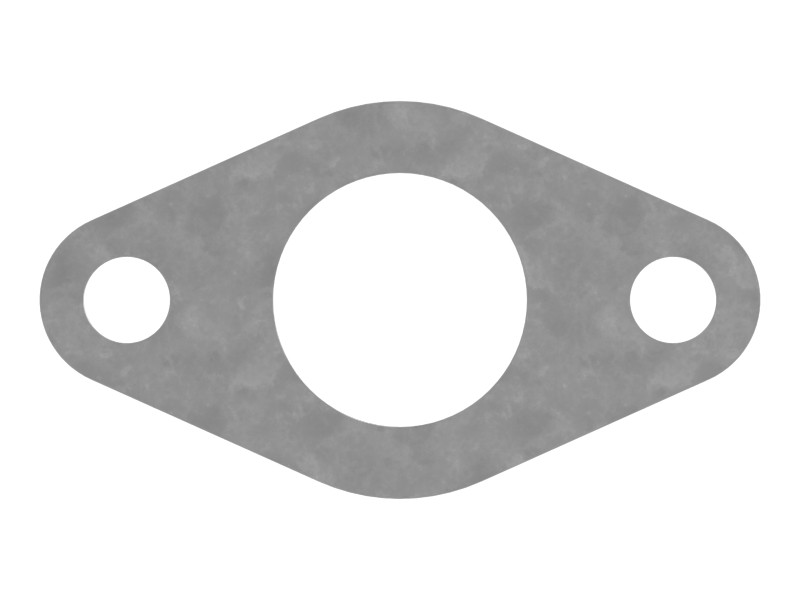

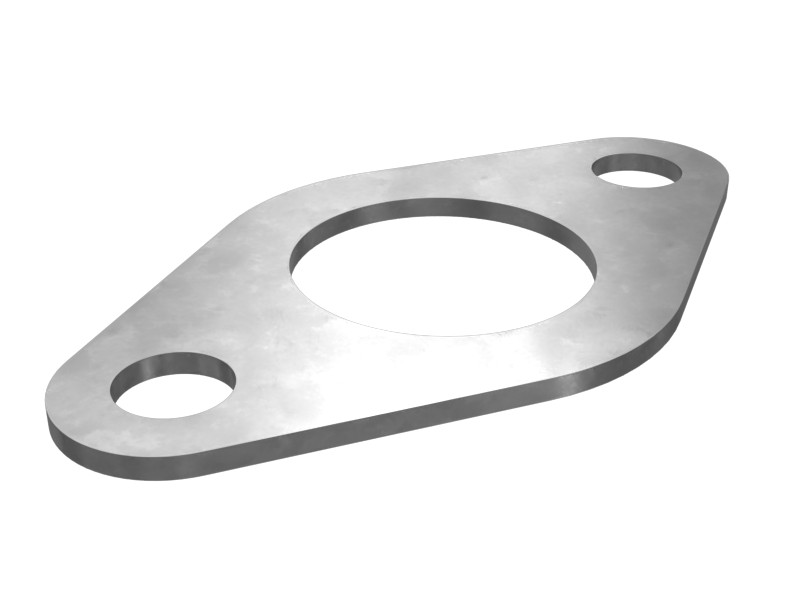

481-1650 1.5 mm Thick Flange Gasket
Cat® 1.5 mm thick flange gasket for engine oil filler caps and fuel filters
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Flange Hole Spacing | 44.0 mm (1.73 in) |
|---|---|
| Hole Size | 7.0 (2X) mm (0.28 (2X) in) |
| Inside Diameter | 20.5 mm (0.81 in) |
| Material | Steel |
| Outside Diameter | 32.0 mm (1.26 in) |
| Style | Flat Plate |
| Thickness | 1.5 mm (0.06 in) |
| Type | 2-Hole Flange |
Compatible Equipment
- Generator Sets: C2.2DE18E3
- Compactors: CB1.8, CB1.7, CB-34B, CC-34B, CB-24B, CB-36B, CB-14
- Mini Excavators: 301.5, 301.7CR, 302CR, 305.5 GC
- Excavators: 305 CR, 301.6, 301.8, 302.7CR, 303.5CR, 303CR
- Skid Steer Loaders: 226B3, 216B3, 232D3, 226B
Additional information
| Machine Model | 216B3, 226B, 226B3, 232D3, 301.5, 301.6, 301.7CR, 301.8, 302.7CR, 302CR, 303.5CR, 303CR, 305 CR, 305.5 GC, C2.2DE18E3, CB-14, CB-24B, CB-34B, CB-36B, CB1.7, CB1.8, CC-34B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Compactors, Generator Sets |
| Part Source | Genuine OEM |
