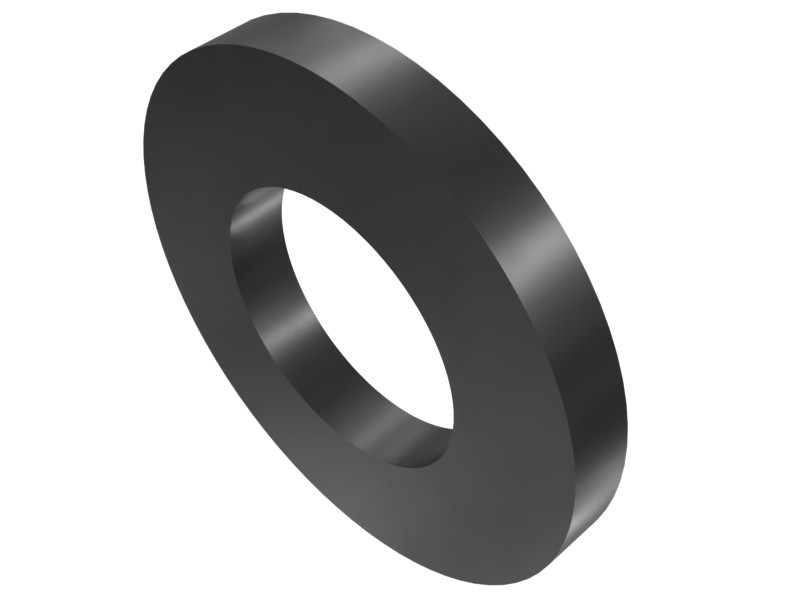

479-3260 1.2 mm Thick Hard Washer
Cat® 1.2 mm Thick Flat Hard Washer for Front Lighting, Fuel Tank, Access Doors, and Wiring Harness
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Gasket Type | Flat Washer |
|---|---|
| Outside Diameter | 13 mm (0.512 in) |
| Inside Diameter | 5.5 mm (0.217 in) |
| Thickness | 1.2 mm (0.047 in) |
| Coating | Zinc flake provides moderate to high corrosion protection and repeatable assembly performance through built-in lubrication. Salt spray resistance: 720 hours with no red rust. Coating color – black (M12 and smaller), gray (larger than M12). |
| Fits Bolt Size | M5 mm |
| Material | Low Alloy Steel |
Compatible Equipment
- Track Loaders: 982, 972
- Cold Planers: TH255C, SE50 VT
- Compactors: 824K, 825K, CP56B, CS68B, CS56B, CP54B, CS54B, CS12, 815, CS11, CS-54B, CS64B
- Compact Track Loaders: 299D3, 279D3
- Excavators: 320D3, 320D2 GC, 312D2 GC, 336D2 XE, 330D2, 313D2 GC, 313D2-GC, 312D2, 318D2 L, 320D2 L, 313D2, 621G, 340D2 L, 312D2 L, 318D2, 330D2 L, 336D2 GC, 336D2 L, 323D2 L, 313F LGC, 336D L, 6060, 326D2, 320D2, 349D2, 349D2 L, 336D2, 326D2 L
- Wheel Loaders: 972M, 966M, 982M, 980M
- Off-Highway Trucks: 7495
- Skid Steer Loaders: 246D3, 262D, 259D3, 232D3, 236D, 289D3, 236D3, 239D3, 299D3 XE, 262D3, 226D3, 272D3 XE, 272D3, 249D3, 242D3, 246D, 232D
Additional information
| Machine Model | 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 GC, 313D2-GC, 313F LGC, 318D2, 318D2 L, 320D2, 320D2 GC, 320D2 L, 320D3, 323D2 L, 326D2, 326D2 L, 330D2, 330D2 L, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D2 L, 349D2, 349D2 L, 6060, 621G, 7495, 815, 824K, 825K, 966M, 972, 972M, 980M, 982, 982M, CP54B, CP56B, CS-54B, CS11, CS12, CS54B, CS56B, CS64B, CS68B, SE50 VT, TH255C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
