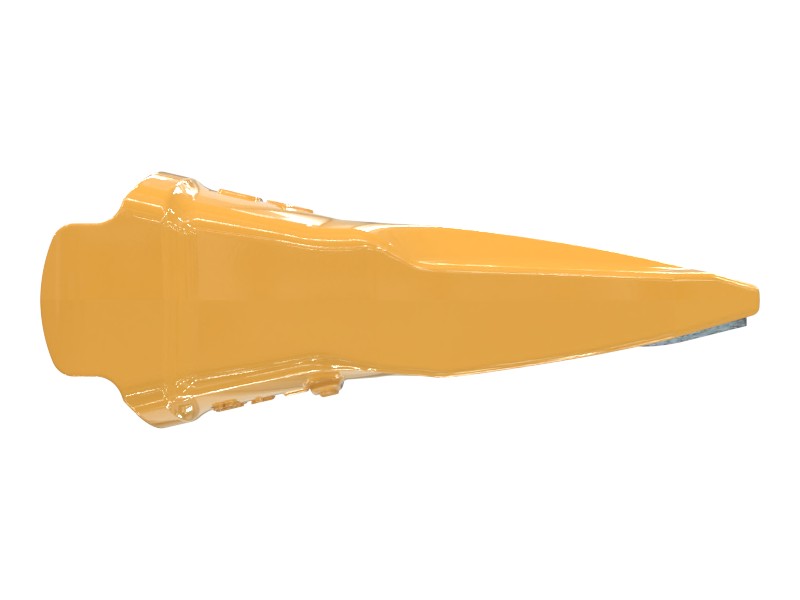

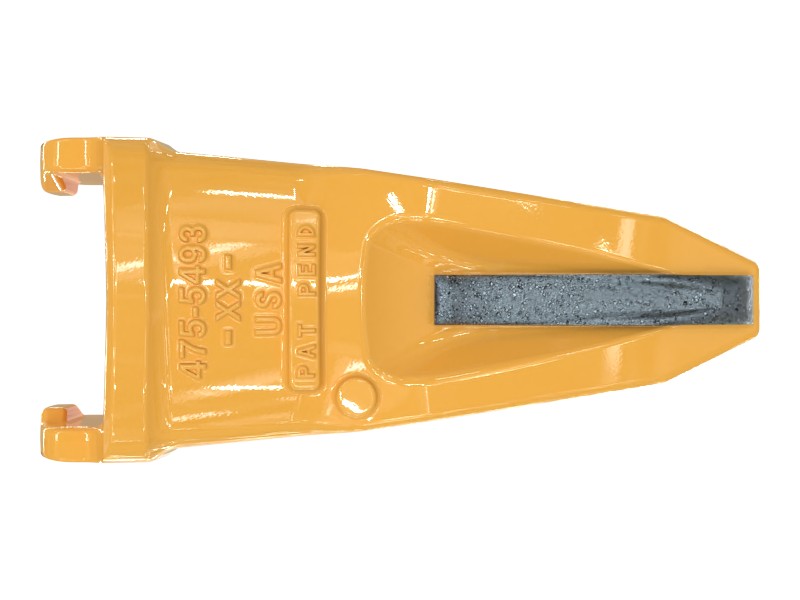

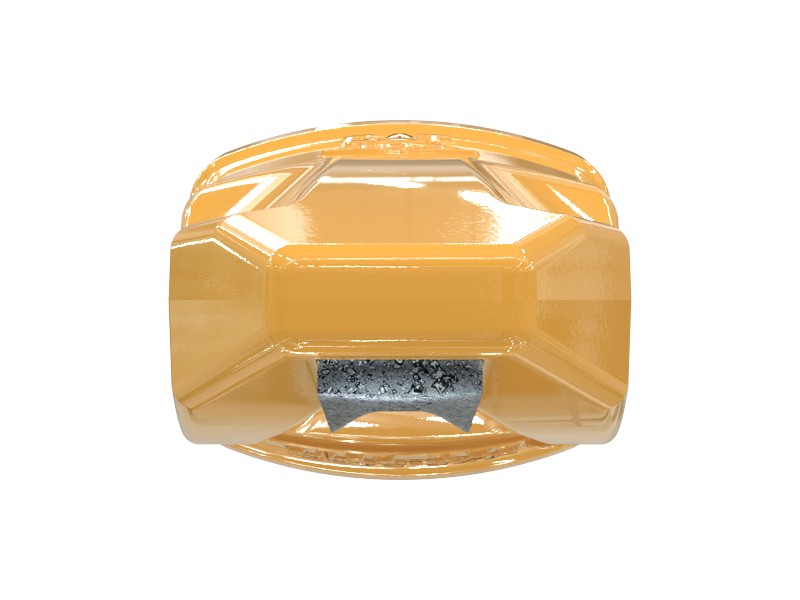

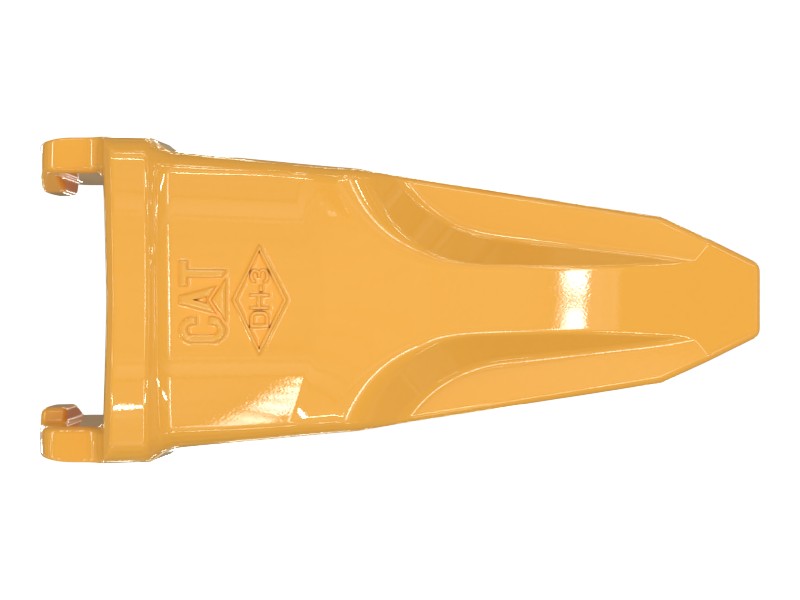

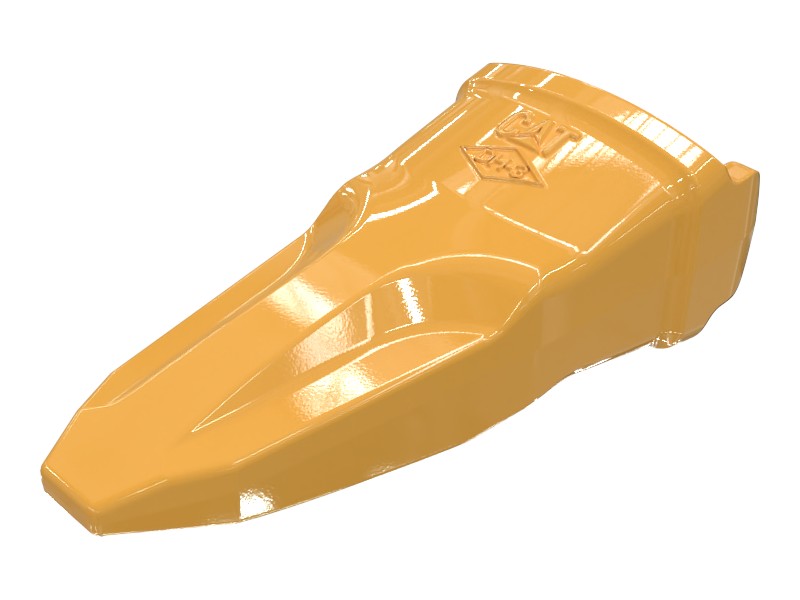

475-5502 Bucket Penetration Tip
K100 Penetration ARM Tip
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The Cat® K Series™ system uses a twist-on vertical retainer design that holds securely and is easy to install and remove. K Series tips are designed around the inherent characteristics of your Cat equipment and protect the machine's bucket from damage like no other tip can.
Penetration tips have a leading edge cross-sectional area reduced by 50% and use highly compacted material for maximum penetration. The single center rib self-sharpens as it wears, increasing wear life and reducing downtime. These Genuine Cat tips add approximately 60% more Abrasion Resistant Material (ARM) in the tip body. As a result, wear life is five times that of a standard tip.
MECHSC can help you select the right tip for your specific needs and job site conditions, striking the right balance between penetration and wear life. Choosing Genuine Cat parts is a smart business decision, both now and in the future.
Features
- 50% smaller leading edge cross-sectional area
- Single center rib self-sharpens as it wears
- ARM wrapped around the tip for improved penetration
Applications
- Highly abrasive, highly compacted material
Specifications
| Size | K100 |
|---|---|
| Series | K Series |
| Material | Alloy Mixed: Metal |
| Front Width | 30 mm (1.181 in) |
| Rear Width | 130 mm (5.118 in) |
| Rear Height | 111 mm (4.37 in) |
| Shape | Penetration |
| Overall Length | 296 mm (11.654 in) |
| Wear or Durability | ARM |
Additional information
| Part Source | Genuine OEM |
|---|
