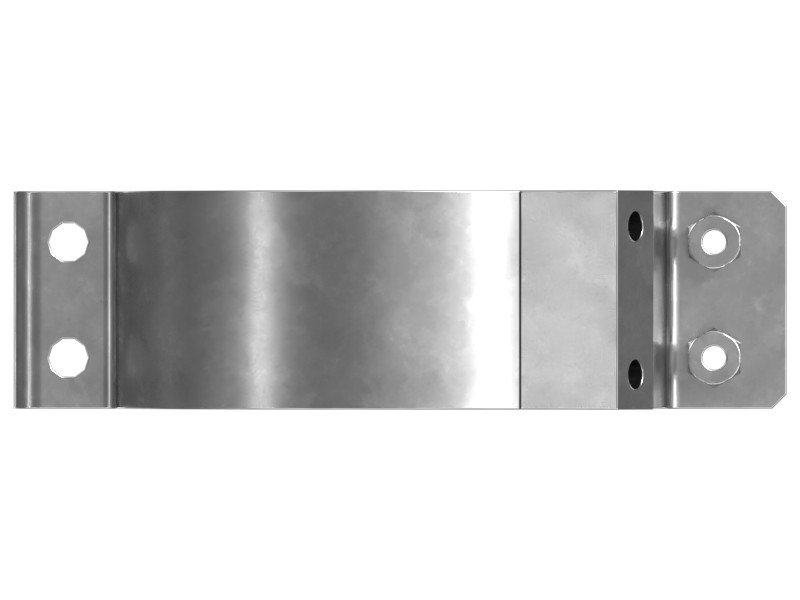

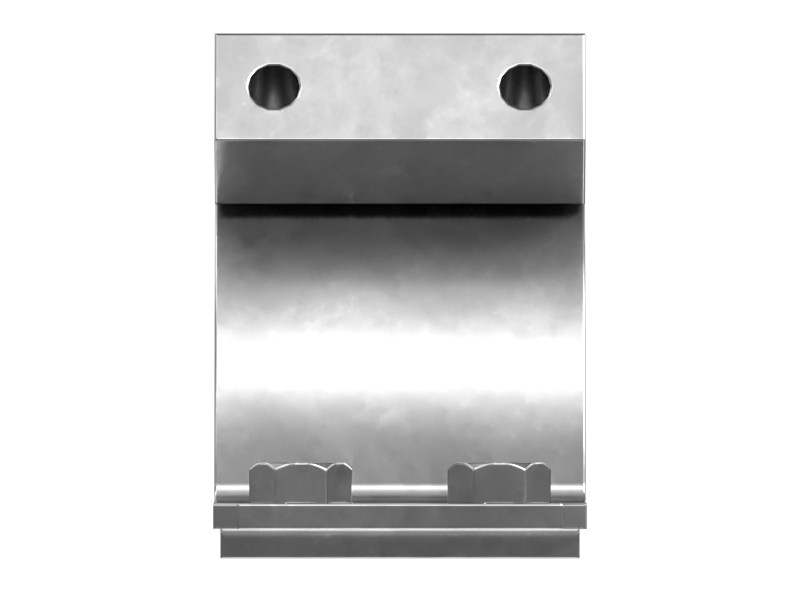

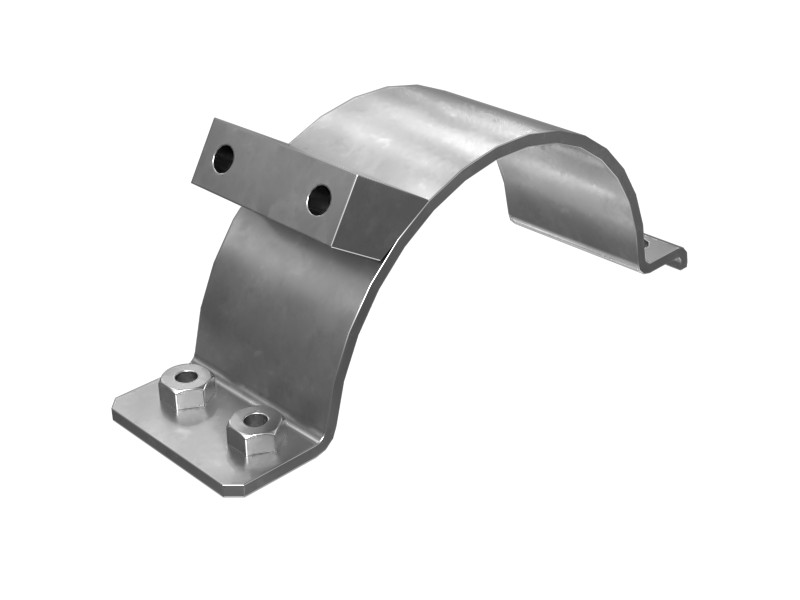

475-0557 Cylinder Support (Half Clamp)
Cat® Cylinder Support (Half Ring Clamp) for 182 mm OD Cylinders, M10 and M12 Threads
Description
The support (clamp) (part number 475-0057) is used to secure tube clips and brackets to the hydraulic cylinder. This support can be used in a variety of Cat product lines as needed.
Features
- M10 weld nut and M12 boss support
- Configuration: Hole and Tang
- Inside Diameter: 182 mm (7.15 in)
- Width: 75 mm (2.95 in)
- Thread: M10x1.5 (2X); M12x1.75 (2X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 182 mm (7.15 in) |
|---|---|
| Style | Hole and Tang |
| Thread Size | M10X1.5 (2X); M12X1.75 (2X) mm |
| Width | 75 mm (2.95 in) |
Compatible Equipment
- Excavators: 330D L, 340, 336E L, 336D L, 336D2 XE, 329E L, 336F L, 330 GC, 336F, 324D L, 325D L, 324D, 336D2 L, 329D L, 330D2, 329E, 336E LH, 336D2 GC, 330D, 336, 336F L XE, 325D, 336F LN, 336E, 330D2 L, 340D L, 385C L, 340D2 L, 385C, 345C L, 333, 395, 336E LN, 336E H, 330GC, 326D L, 330, 326D2 L, 329D2, 336D, 329D2 L, 326D2, 336D2, 329D
Additional information
| Machine Model | 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345C L, 385C, 385C L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
