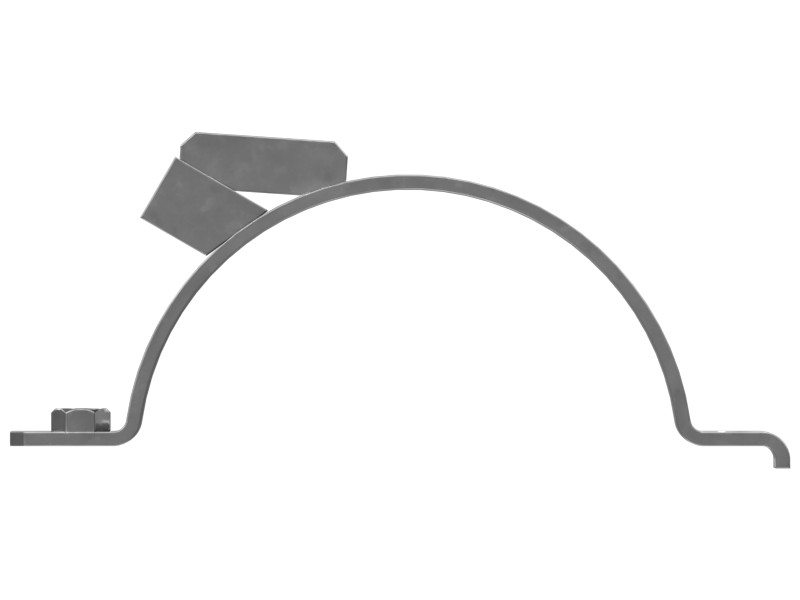

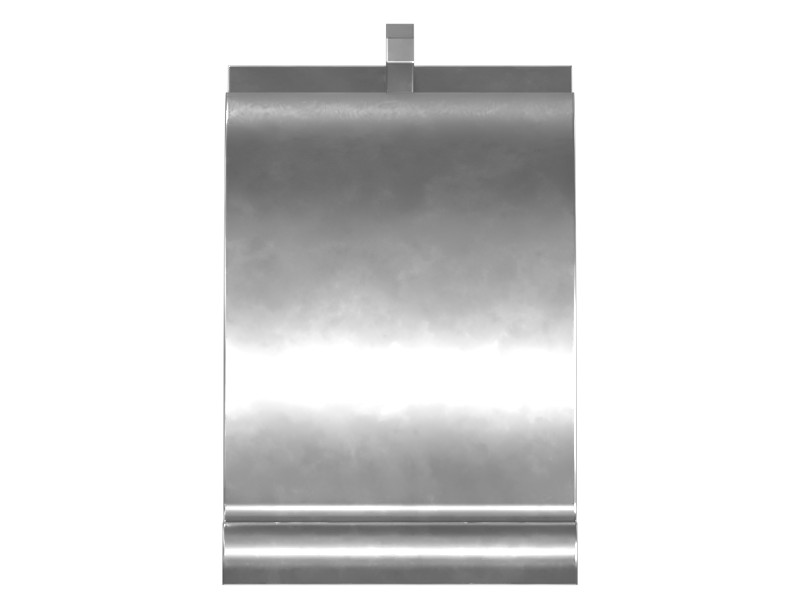

474-7168 193.6 mm ID Hydraulic Cylinder Support
Cat® hydraulic bucket cylinder line support ensures stability and proper positioning of hydraulic lines.
Description
Hydraulic cylinder supports provide a consistent interface for the cylinder.
Features
- Steel support
- Finish: Medium-gloss black paint
- Inside Diameter: 193.6 mm (7.62 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 194 mm (7.62 in) |
|---|---|
| Width | 75 mm (2.95 in) |
| Thread Size | M10X1.5 (2X); M12X1.75 (2X) mm |
| Hole Size | 14 (2X) mm (0.55 (2X) in) |
Compatible Equipment
- Excavators: 330D L, 349F L, 352, 340, 349, 336, 355, 336D L, 336D2 L, 324D L, 349D L, 340D2 L, 330C, 336E L, 336F L, 325C, 336F LN, 330C L, 329D L, 336E, 336F, 336F L XE, 330D, 336E LN, 325C L, 345D L, 345C L, 349E, 345C, 349E L, 352F, 349E L VG, 385B, 345D, 340D L, 349D2 L, 349D2, 336D2, 349D, 336D
Additional information
| Machine Model | 324D L, 325C, 325C L, 329D L, 330C, 330C L, 330D, 330D L, 336, 336D, 336D L, 336D2, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 355, 385B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
