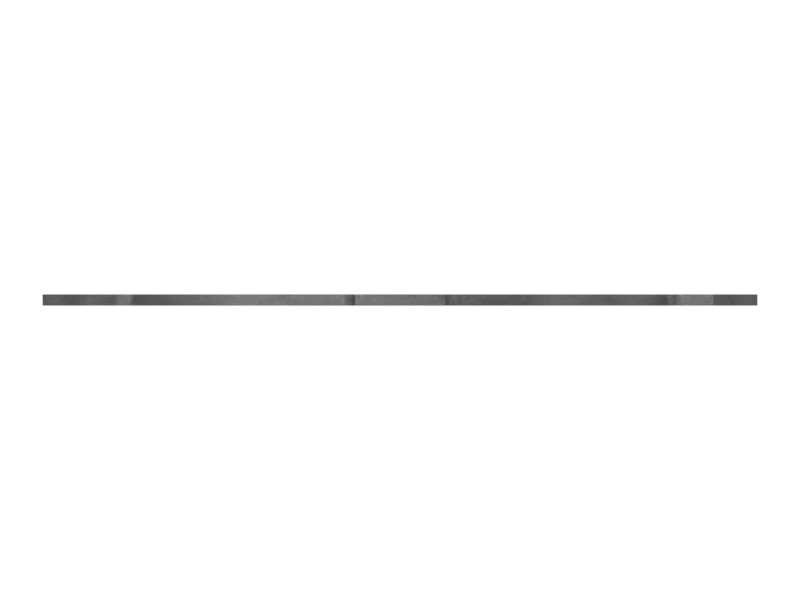

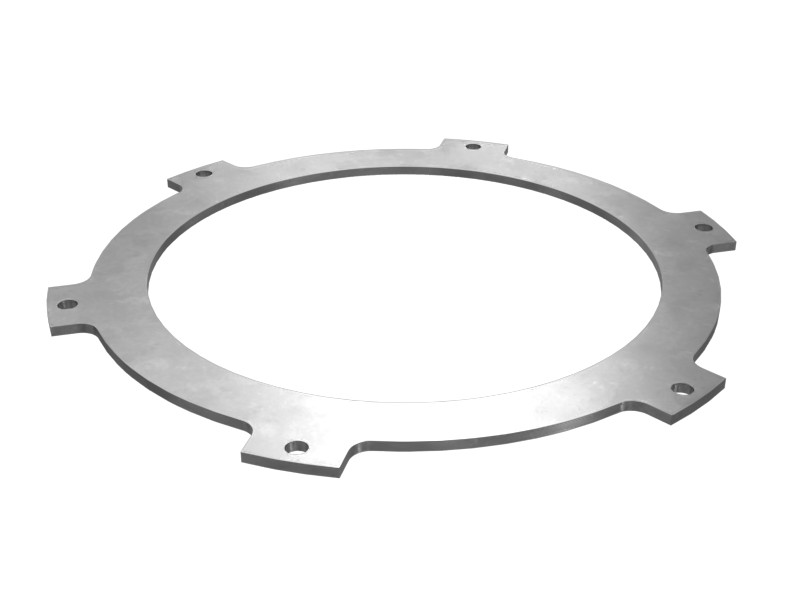

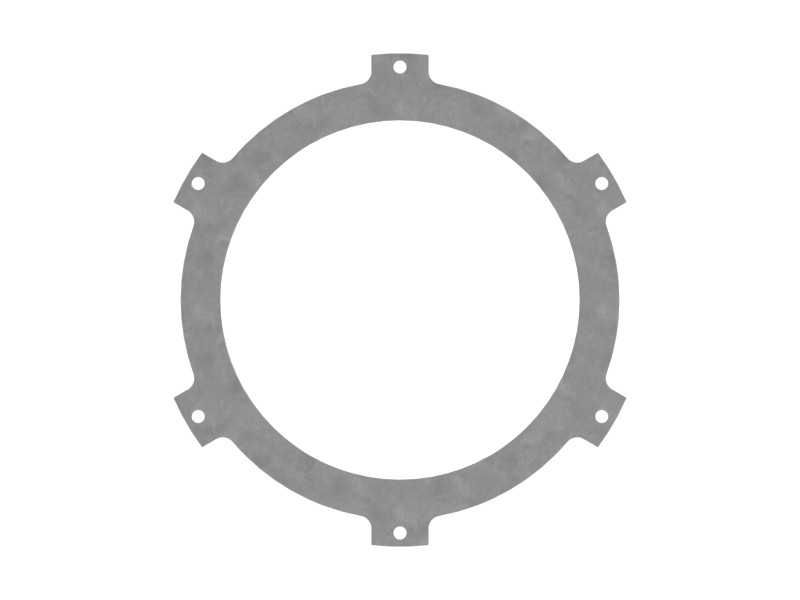

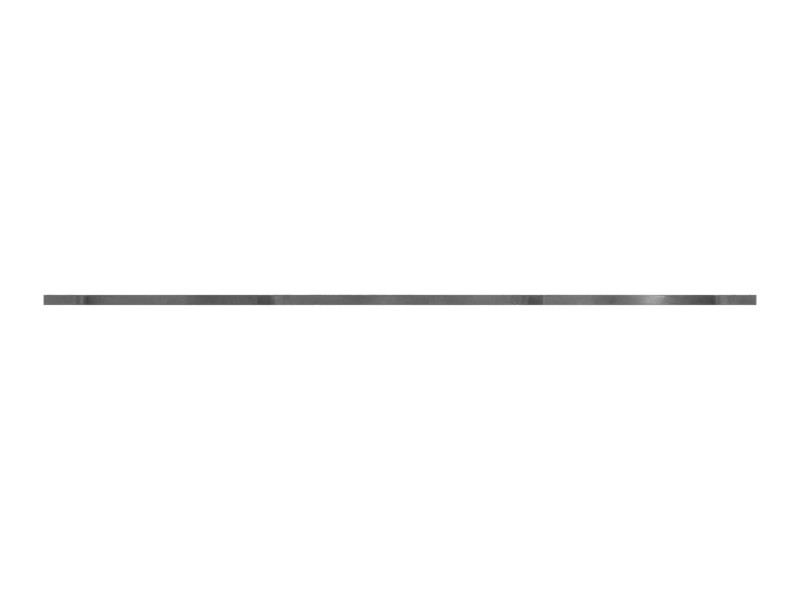

473-4855 6.73 mm Thick Clutch Plate
Cat® transmission planetary clutch plate, used for smooth shifting by engaging the planetary gear set
Description
Cat power train components must withstand extremely high torque, high shock loads and frequent directional shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving power train durability and performance over the life of the machine.
Features
- Hardened steel clutch plate
- Inside Diameter: 355.6 mm (14 in)
- Thickness: 6.73 mm (0.264 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Oil Fluid |
|---|---|
| Inside Diameter | 355.6 mm (14.000 in) |
| Outside Diameter | 487 mm (19.173 in) |
| Thickness | 6.73 mm (0.264 in) |
Compatible Equipment
- Dozers: D9R, D9T, D9
