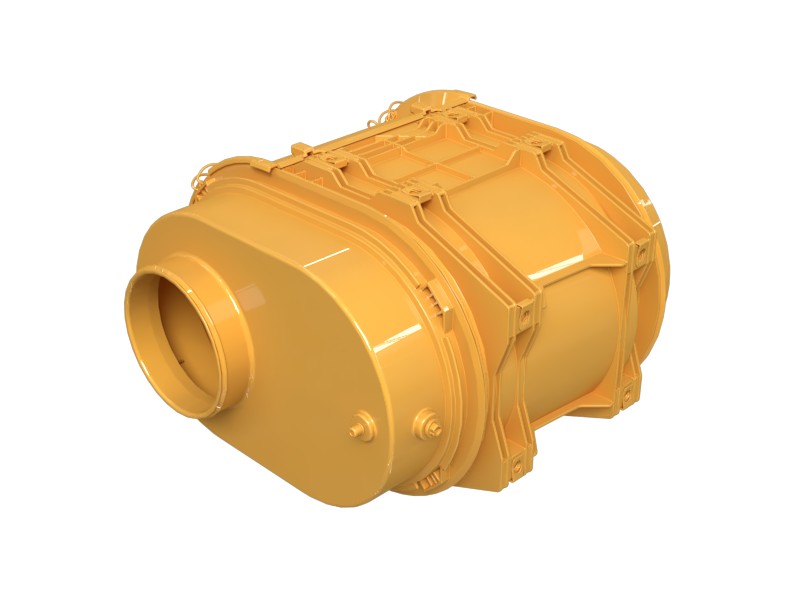

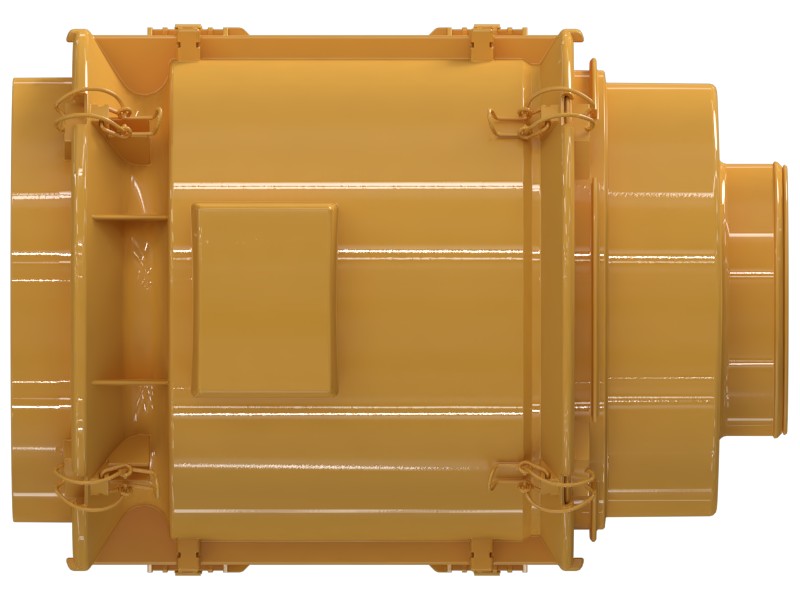

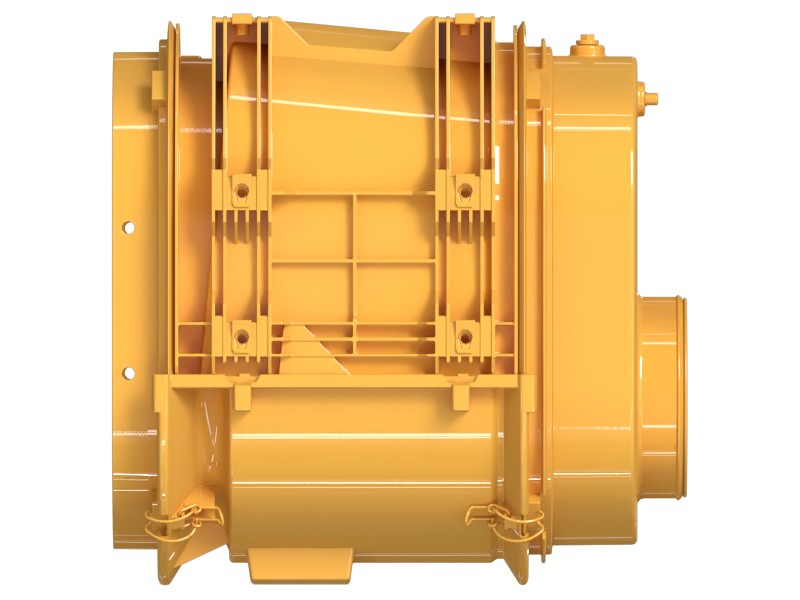

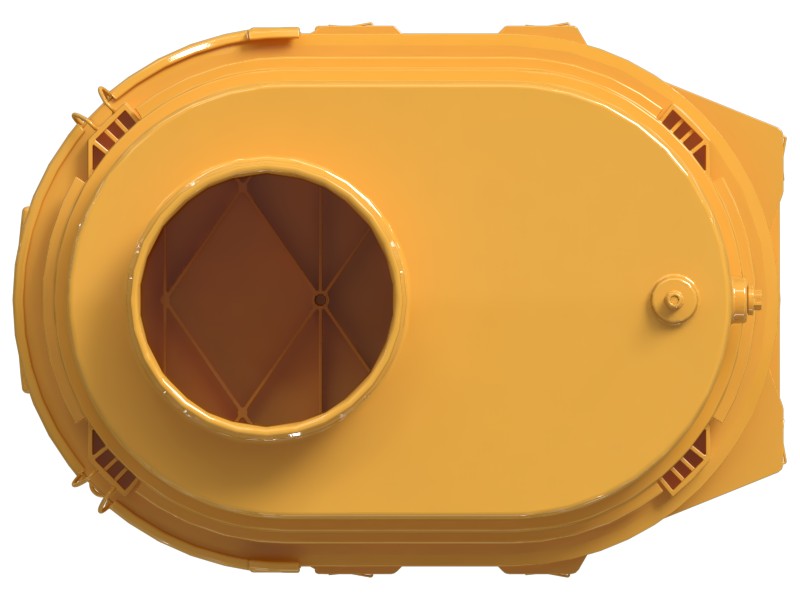

470-8495 Air Filter Group
Cat® air filter groups are devices in the intake system that filter and clean air before it enters the engine.
Description
The air filter group is a device used to remove contaminants, particles, dust, pollen and other impurities from the air before the air is used by an internal combustion engine or other equipment. It consists of several components, including the air filter and a housing or enclosure, and sometimes additional features such as an airflow sensor, seals and mounting brackets.
Attributes
- The core of the air filter group is the air filter, which captures particulates and contaminants.
- Enclosed in a housing designed to provide structural support.
- Designed for easy installation in the engine air intake system.
Applications
The air filter group is installed in the engine air intake system to filter the air before it enters the engine cylinders. This improves engine performance and extends engine life.
Specifications
| Overall Length | 434 mm (17.087 in) |
|---|---|
| Type | Non-Round |
| Overall Width | 306 mm (12.047 in) |
| Overall Height | 430 mm (16.929 in) |
| Mounting | Bottom |
| Outlet Size | 152.4 mm (6 in) |
| Material | Polyolefin Plastic |
| Length | 434 mm (17.087 in) |
| Width | 306 mm (12.047 in) |
| Height | 430 mm (16.929 in) |
Compatible Equipment
- Engines: C32
