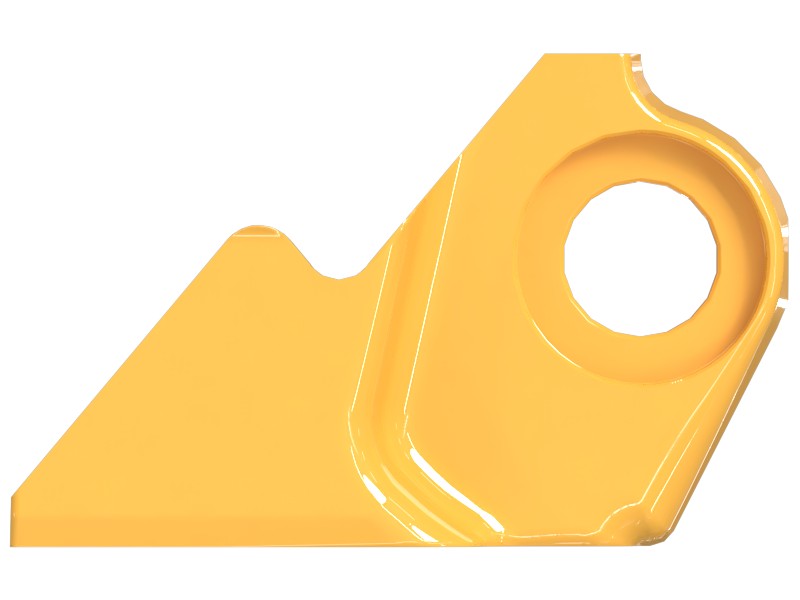

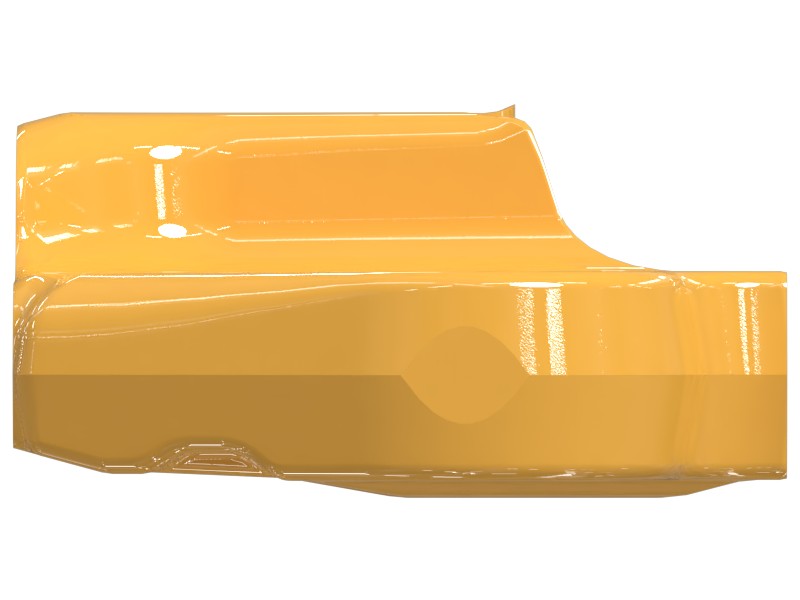

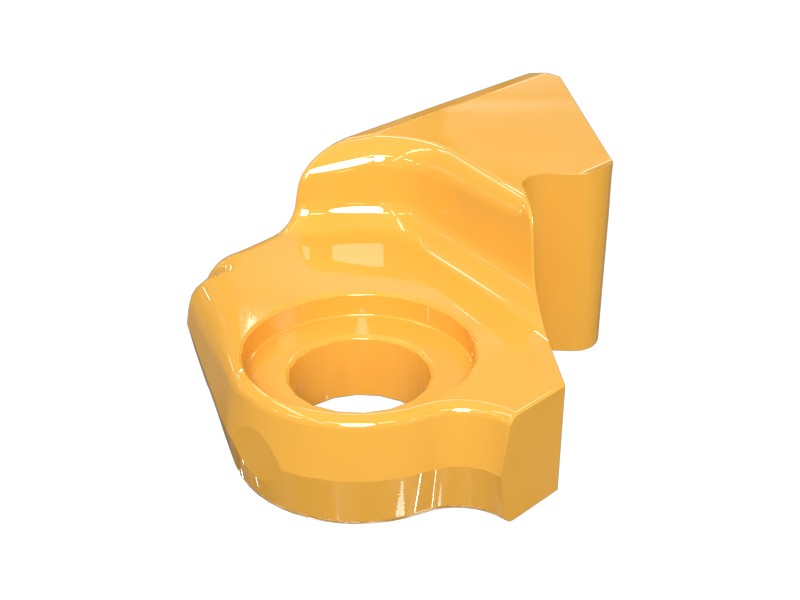

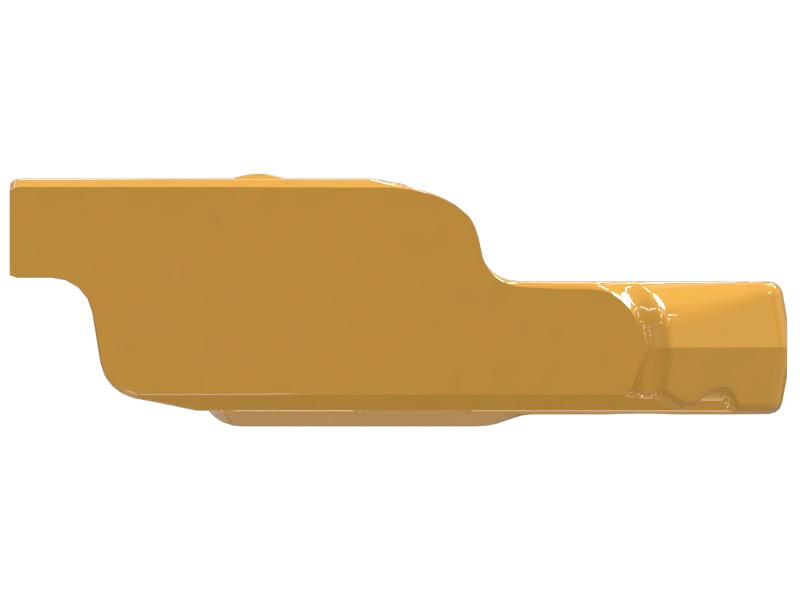

Skip to content467-1382 Master Track Chain Block
Description
Specifications
| Material | ALLOY Steel |
|---|
| Wear Sensor | No |
|---|
| Main Bolt Thread | 1.125 |
|---|
| Master Link Type | 1 Tooth Master |
|---|
| UC System – Designed For | Heavy Duty Extended Life |
|---|
| Steel Grade | 1E4146 |
|---|
| Lug Thickness | 0 mm (0 in) |
|---|
| Track Link Crown Height | 0 mm (0 in) |
|---|
| Bolt Hole Diameter | 31 mm (1.22 in) |
|---|
| Track Pitch | 261 mm (10.276 in) |
|---|
| Pin Retention System | PPR |
|---|
| Overall Height | 180 mm (7.087 in) |
|---|
| Hole to Rail | 105 mm (4.134 in) |
|---|
| Rail to Pin Boss Outside Diameter | 60 mm (2.362 in) |
|---|
| Track Pin Bore Diameter | 56.9 mm (2.24 in) |
|---|
| Pin End Bar Thickness | 48.5 mm (1.909 in) |
|---|
| Track Shoe Type | Rock/General Purpose |
|---|
Compatible Equipment
