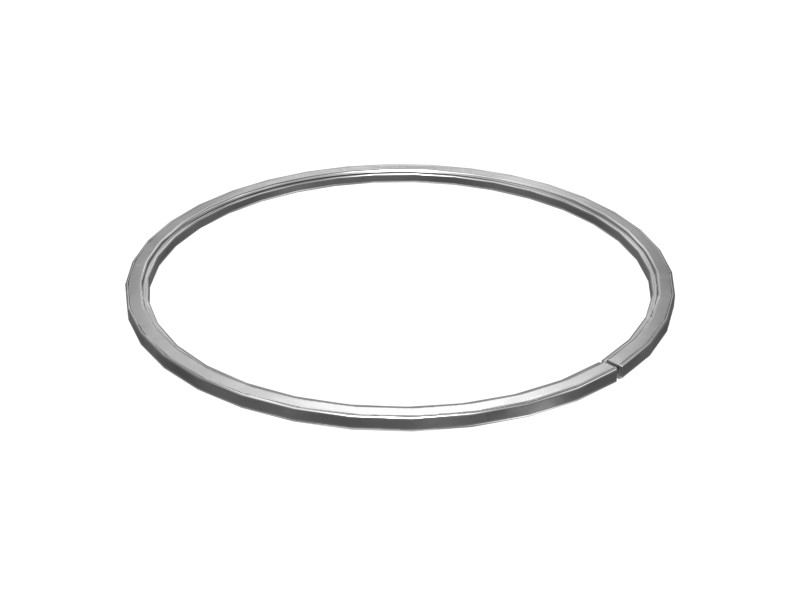

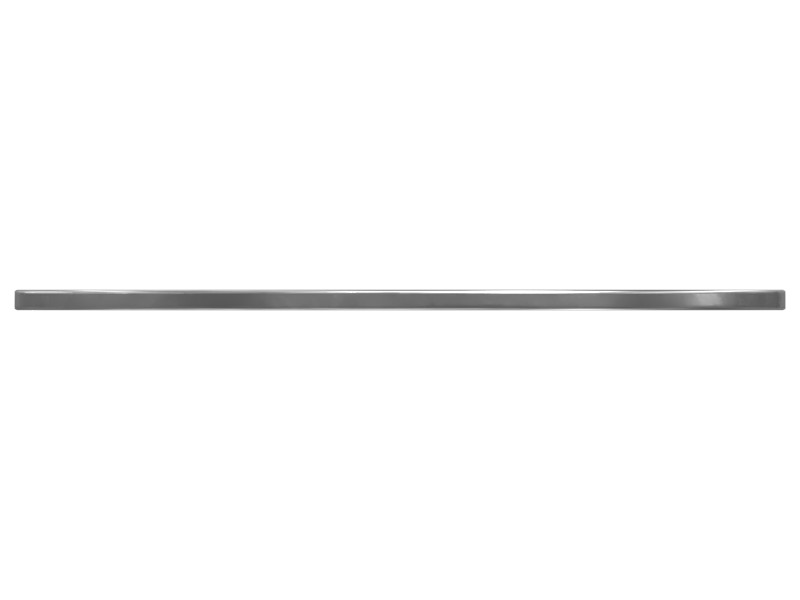

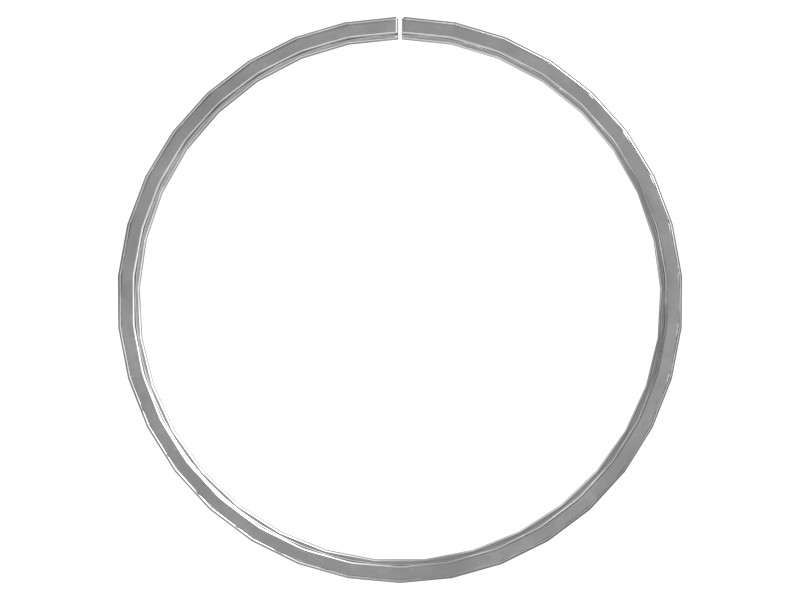

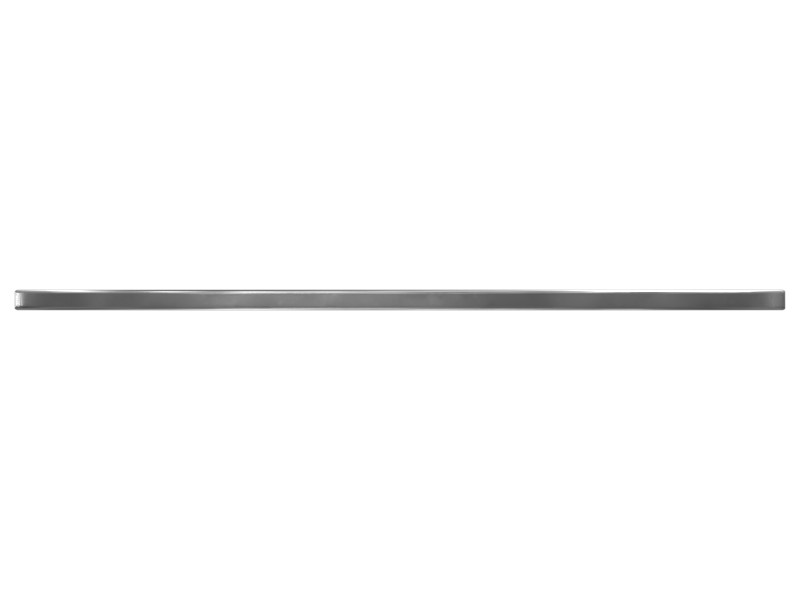

467-1177 115 mm OD Piston Ring
Cat® 115 mm OD Intermediate Piston Ring
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The piston ring is located between the top ring and the second ring of the engine piston. It controls oil flow around the piston and forms a seal between the piston and the cylinder wall. It is typically made of high-strength materials designed to withstand pressure and temperature changes and to control oil flow around the piston.
Features
- The piston ring has a phosphate-coated surface finish, which enhances lubricity and corrosion resistance.
- Rockwell hardness scale value of 95-107 HRB, indicating excellent resistance to deformation.
Applications
Piston rings act as a seal between the piston and the cylinder wall.
Specifications
| Material | Cast Iron |
|---|---|
| Outside Diameter | 115 mm |
| Overall Height | 1.59 in |
| Pitch Diameter | 115 mm (4.528 in) |
| Overall Length | 43.34 in |
| Overall Width | 2.56 in |
| Thickness | 4.5 mm |
| Weight | 0.03 kg |
| Width | 2.98 mm (0.177 in) |
Compatible Equipment
- Track Loaders: 973K
- Cold Planers: PL72
- Dozers: D6T, D6T LGP, D7E
- Excavators: 637K, 336F LN, 336F, 336F L XE, 336F L
- Wheel Loaders: 966M, 972M
- Off-Highway Trucks: 725C2, 725
Additional information
| Machine Model | 336F, 336F L, 336F L XE, 336F LN, 637K, 725, 725C2, 966M, 972M, 973K, D6T, D6T LGP, D7E, PL72 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Cold Planers |
| Part Source | Genuine OEM |
