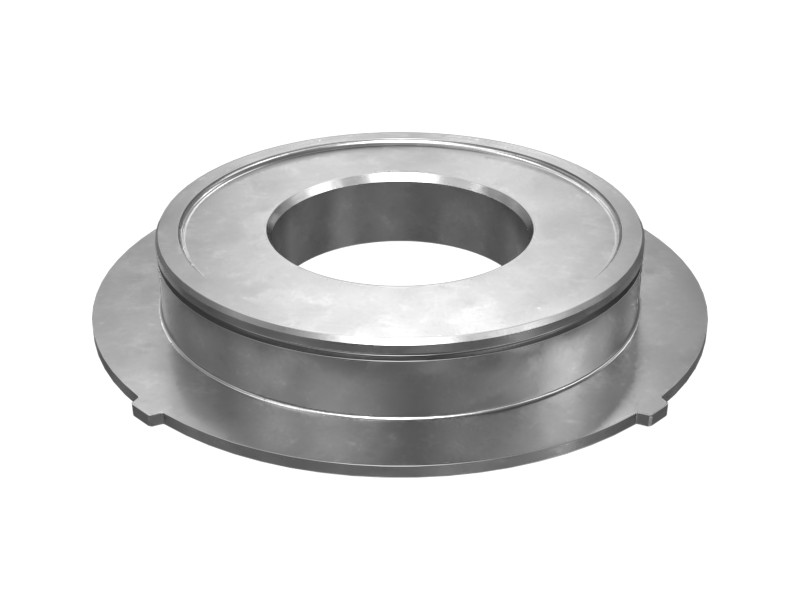

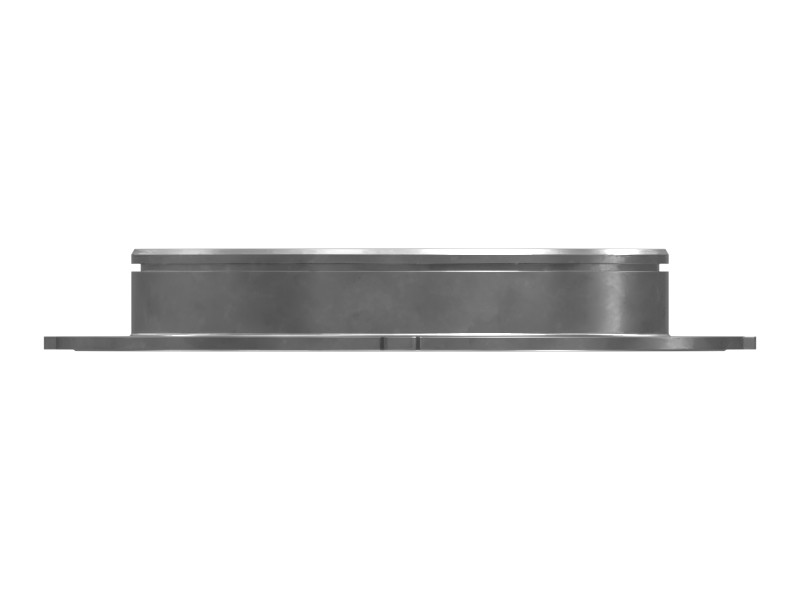

466-3030 90.2 mm ID Transmission Clutch Piston
Cat® 90.2 mm ID Steel Transmission Clutch Piston
Description
The Cat clutch piston is a key component in the planetary gear group that powers the rugged Cat transmission, converting engine power into the precise combination of speed and force each machine requires.
Features
- Hardened Steel Clutch Piston
- Four external lock tabs ensure an accurate OEM fit
- Width: 32.1 mm (1.2637 in)
- Inside Diameter: 90.2 mm (3.551 in)
- Outside Diameter: 224.8 mm (8.850 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Structural Steel |
|---|---|
| Material Description | Steel |
| Width | 32.1 mm (1.2637 in) |
| Inside Diameter | 90.2 mm (3.551 in) |
| Outside Diameter | 224.8 mm (8.850 in) |
Compatible Equipment
- Motor Graders: 16M3, 14, 14M, 18, 16M, 16
