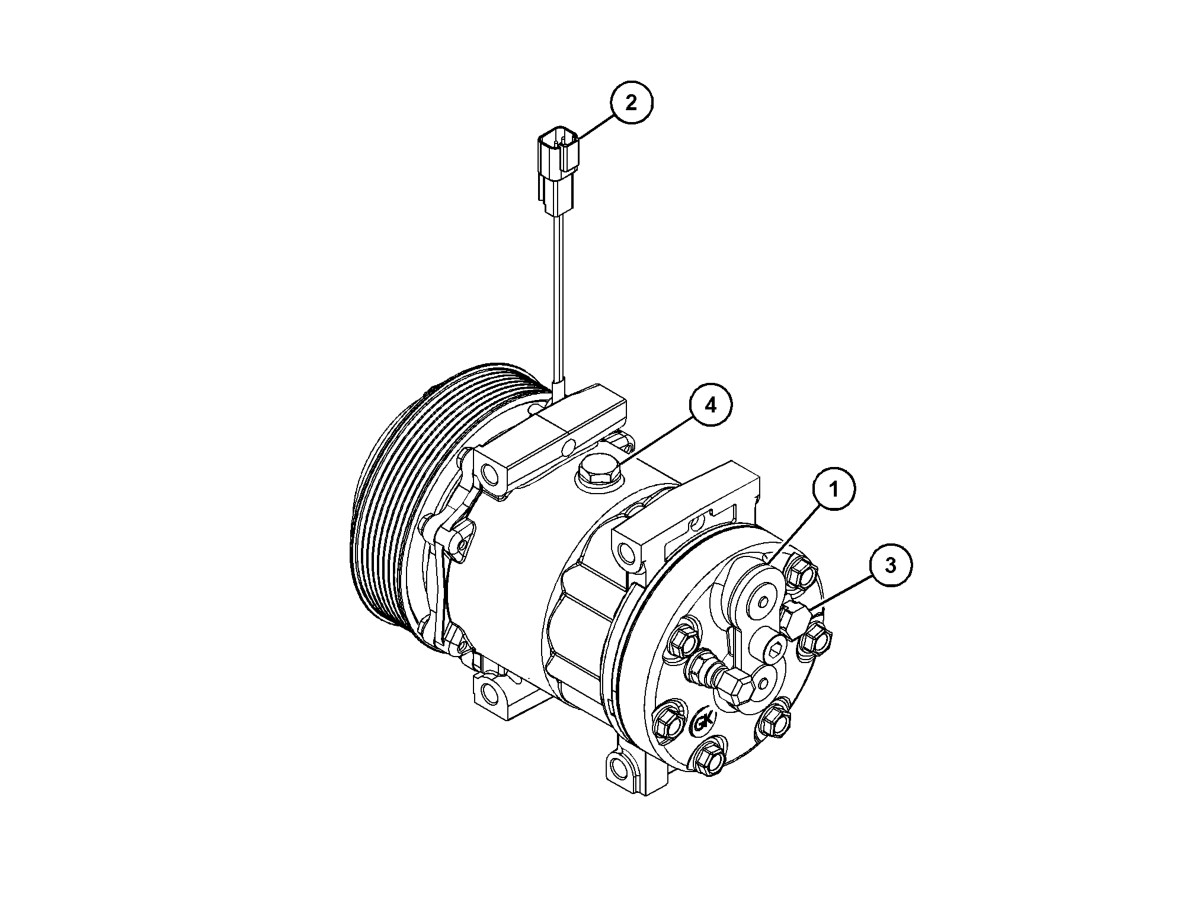

464-9988 24 Volt Base Clutch and Refrigerant Compressor
Cat® Refrigerant Compressor (24 V Clutch)
Description
HVAC systems provide heating, cooling, and filtration of fresh and/or recirculated air within the operator station of Cat machines. Cat compressors pressurize the fluid to maintain flow rate and increase the pressure required by the application.
Features
- 7-Cylinder Compressor
- Cast aluminum body
- Clutch Type: Extra Heavy Duty
- Clutch Voltage: 24V
- Pulley Type: PV-8
- Refrigerant Compatibility: R134a
- Includes pigtail harness with 2-pin DT connector
- Recommended RPM: 2500±200
- Maximum RPM: 4000
- For use only with systems that provide a low-pressure shutoff switch on the high-pressure side
Applications
A compressor that circulates refrigerant throughout the HVAC system of Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Cast Aluminum |
|---|---|
| Pin | 2 |
| Overall Width | 150 mm (5.9 in) |
| Hole Diameter | 29.3 mm (1.2 in) |
| Length | 32.8 (Stroke) mm (1.3 (Stroke) in) |
| Connector Type | 2-Pin DT |
| Overall Length | 248.3 mm (9.8 in) |
| Voltage | 24 (VDC) VAC |
| Outside Diameter | 133 mm (5.2 in) |
| Material | Alloy Aluminum |
Compatible Equipment
- Motor Graders: 14, 160K, 12K, 140K, 140 GC, 120H
- Engines: C11, C13
- Compactors: C-9
- Excavators: 120 GC
- Wheel Loaders: 950 GC, R1300G, 950H, 972H, 966H
- Off-Highway Trucks: 796 AC, 797F, 793F, 798 AC, 730, 777D, 794 AC
- Asphalt Pavers: AD63
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120 GC, 120H, 12K, 14, 140 GC, 140K, 160K, 3126B, 730, 777D, 793F, 794 AC, 796 AC, 797F, 798 AC, 950 GC, 950H, 966H, 972H, AD63, C-9, C11, C13, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
