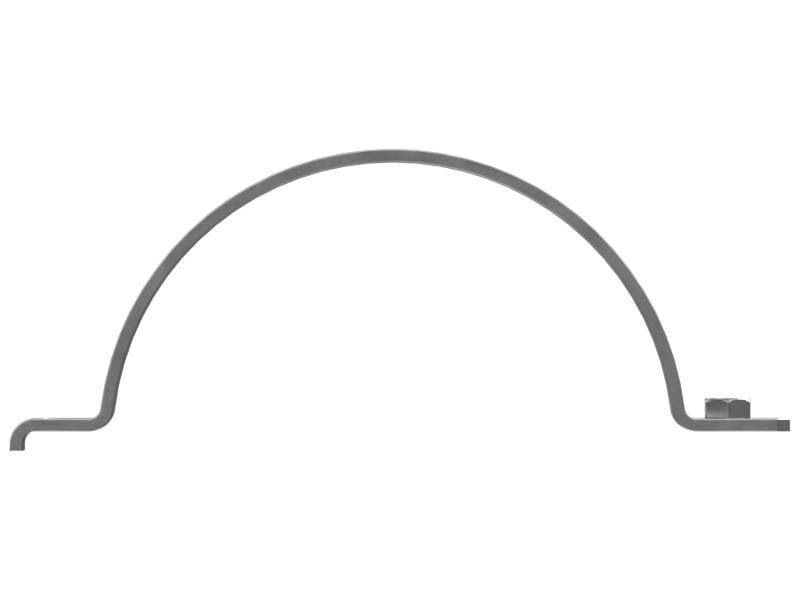

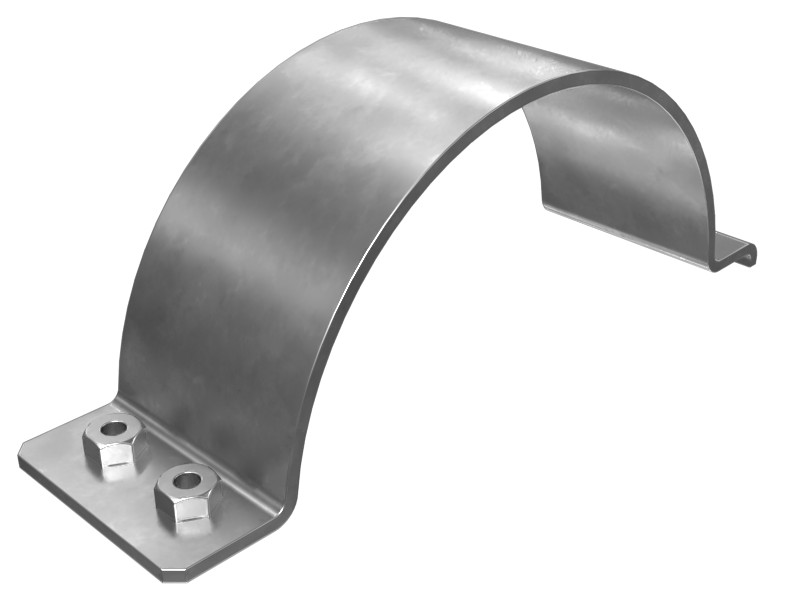

462-3574 229.6 mm ID Hydraulic Cylinder Support
Cat® Hydraulic Stick Cylinder Line Support ensures hydraulic line stability and proper positioning.
Description
Hydraulic cylinder supports provide a consistent interface for the cylinder.
Features
- Steel bracket with weld nut
- Finish: Medium-gloss black paint
- Inside Diameter: 230 mm (9.06 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 230 mm (9.06 in) |
|---|---|
| Width | 90 mm (3.54 in) |
| Material Thickness | 5 mm (0.20 in) |
| Thread Size | M10X1.5 (2X) mm |
| Hole Size | 14 (2X) mm (0.55 (2X) in) |
Compatible Equipment
- Excavators: 349F L, 352, 340, 355, 349D L, 345C L, 345D L, 349, 345C, 345B, 352F, 349E L, 349E L VG, 349E, 345D, 330, 349D2 L, 349D, 349D2
