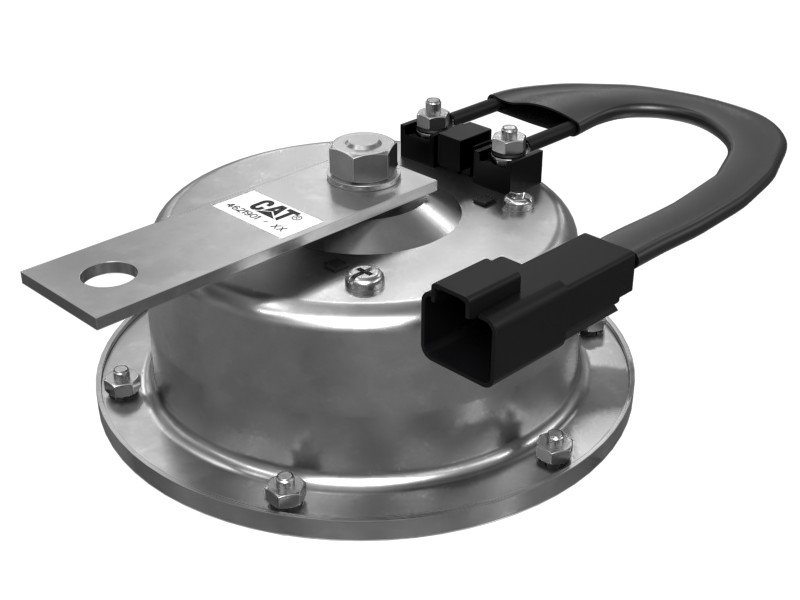

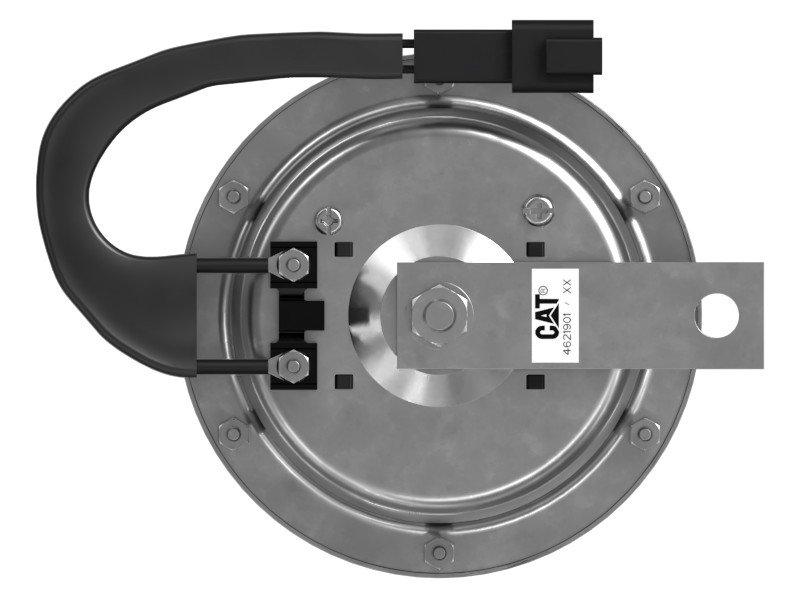

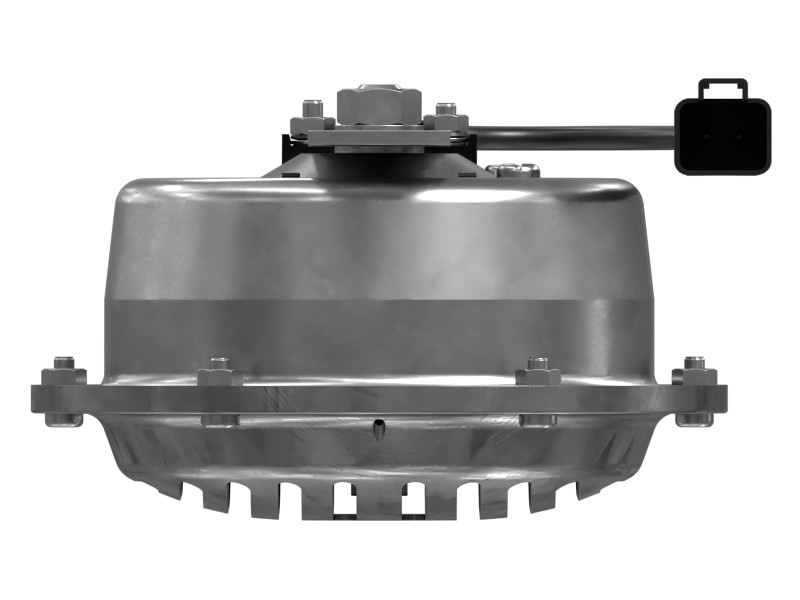

462-1901 24 VDC High Tone Disc Horn
Cat® steel 24 VDC high tone disc horn withstands an operating temperature of -40 to 85 °C
Description
The Cat horn group is an audible warning device used to warn that a Cat machine is present or approaching.
Features
- High-pitch horn with pigtail connector
- Voltage: 24 V
- Decibel output: 115-125 dBa
- Duty: Intermittent
- Connector: 2-Pin DT
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Diameter | 125 mm (4.9 in) |
| Voltage | 24 VDC Volts |
| Height | 80 mm (3.1 in) |
Compatible Equipment
- Wheel Excavators: MD6310, MD6250, MD6200
- Excavators: 374, 6015B, 6015, 395, 3101
- Wheel Loaders: R1700K, R1600H, R1700 XE, R2900 XE
- Asphalt Pavers: AD30, AD45, AD63
