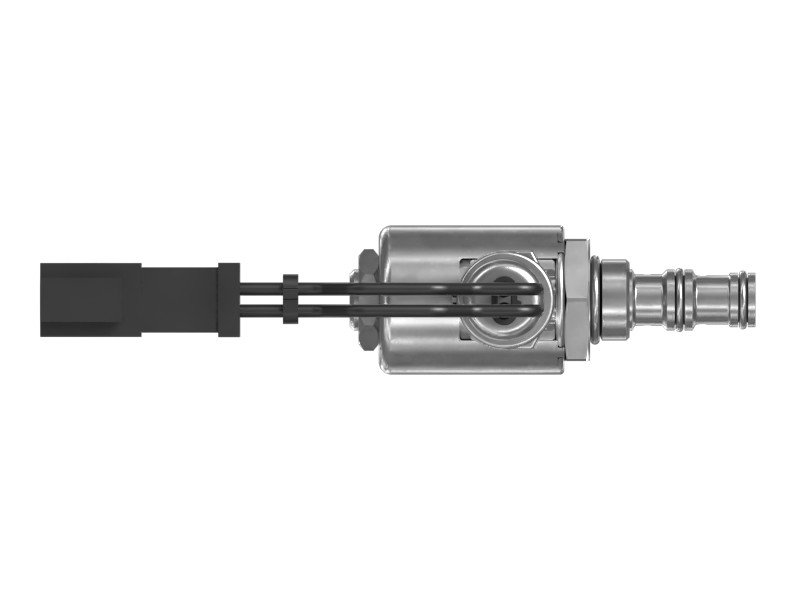

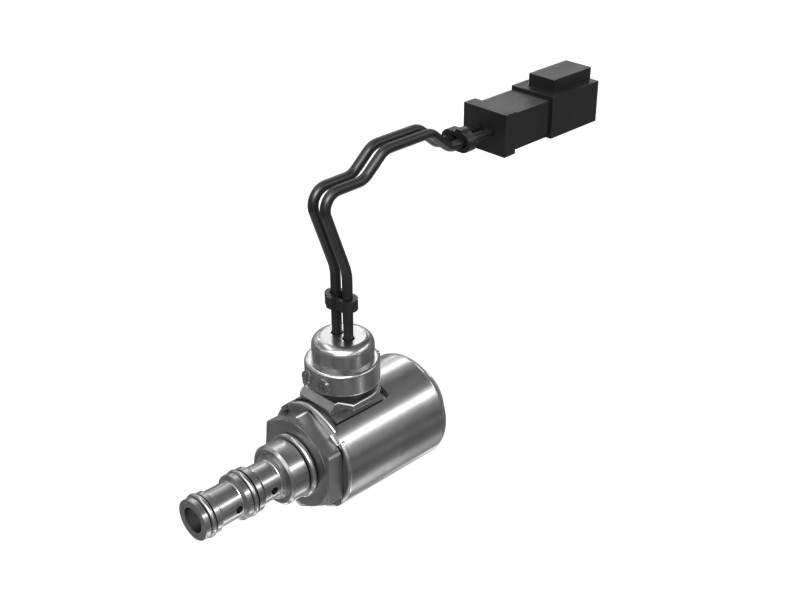

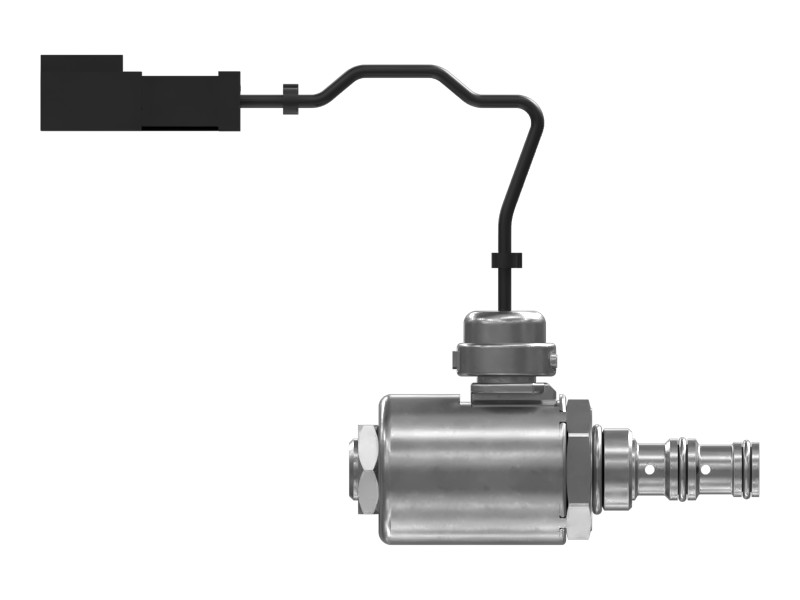

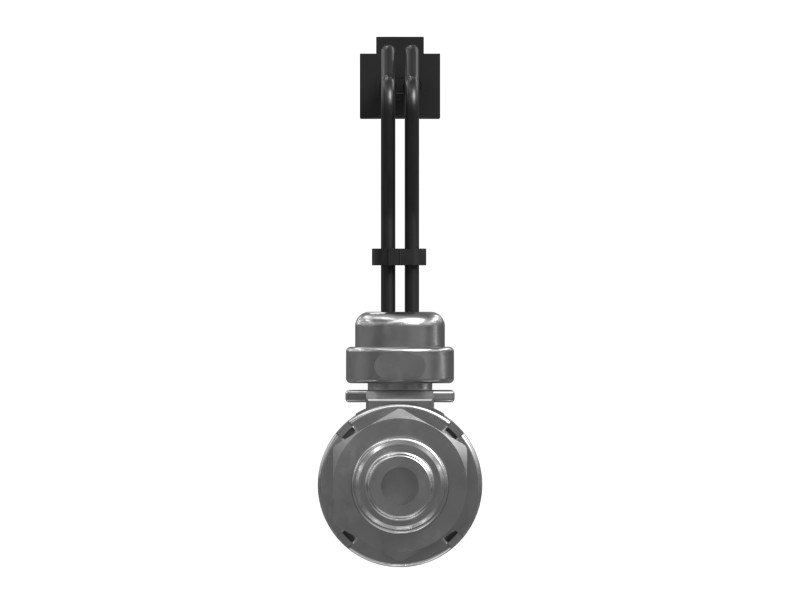

460-7612 24 Volt DC Brake Solenoid Valve
Cat® Solenoid Valve controls hydraulic pressure to apply and release the vehicle brakes, ensuring safe operation
Description
Cat solenoid valve groups are electromechanical devices used to open or close valves in the fluid systems of Cat heavy-duty equipment.
Features
- Voltage: 24 VDC
- 3 Way 2 Position
- Normally Closed
- Fluid Type: Air
- Thread Size: 3/4-16
- Connector Type: 2-Pin DT
- Lead Length: 130 mm (5.11 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Voltage | 24 VDC Volts |
| Length | 93.3 mm (3.67 in) |
| Thread Size | 42433 in |
Compatible Equipment
- Excavators: 3512C
- Off-Highway Trucks: 773, 773E, 777D, 773D, 777E, 771D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
