Description

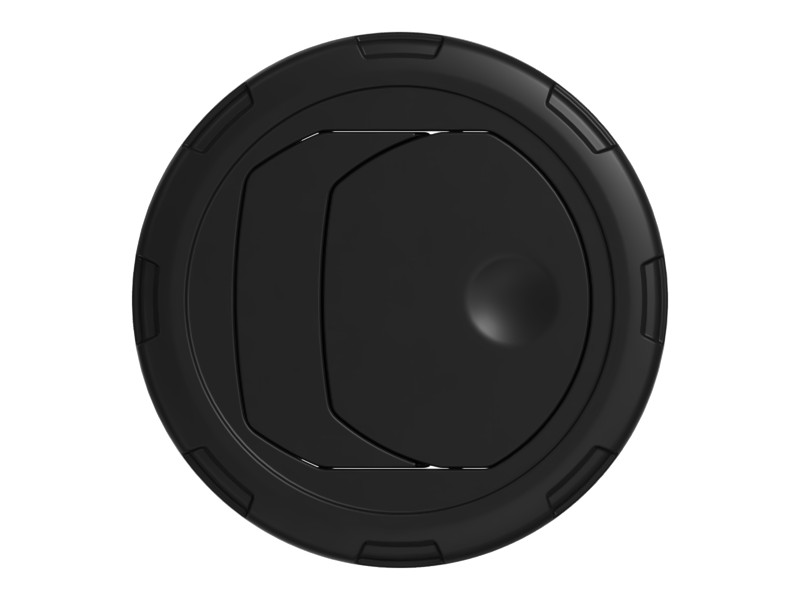

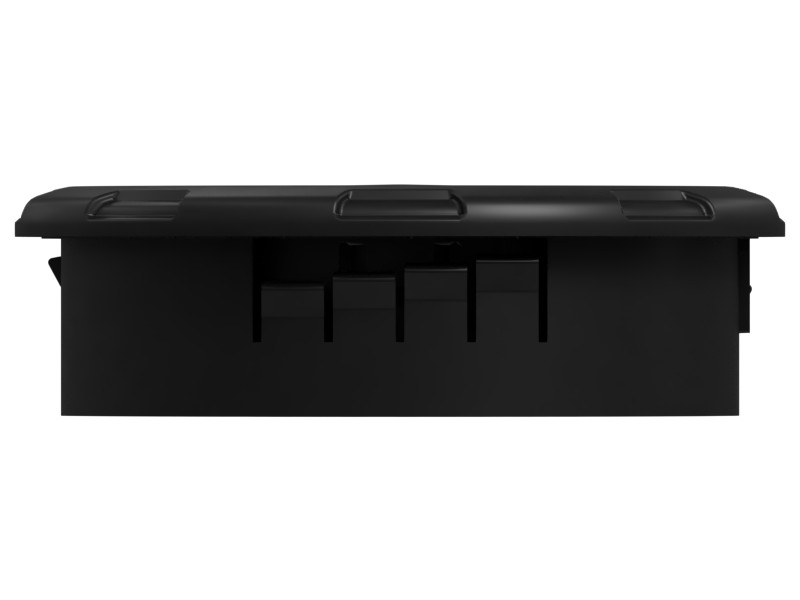

The louver (for example, part number 460-4738) is designed to ensure proper air discharge from the HVAC system of heavy duty equipment. Louvers can be adjustable or fixed. This louver improves vane control at higher airflow. It is used across various Cat product families as needed.
Features
- Heavy-Duty Black Nylon Louver
- Adjustable
- Flange Diameter: 87 mm (3.43 in)
- Outside Diameter: 76.6 mm (3.02 in)
- Height: 26 mm (1.02 in)
- Panel Opening Diameter: 77 mm (3.03 in)
- Easy to install
Applications
Cat louver groups direct airflow in the operator stations of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Color | Medium Gloss Black |
|---|---|
| Flange Diameter | 87 mm (3.43 in) |
| Height | 25.9 mm (1.02 in) |
| Outside Diameter | 76.6 mm (3.02 in) |
Compatible Equipment
- Motor Graders: 120, 14
- Track Loaders: 963, 953, 992, 995
- Compactors: CS11, CS12, CP12 GC, CS12 GC, CP11 GC
- Dozers: D6T, D9T, D4, D7, D8
- Mini Excavators: 308, 308.5, 310, 306, 302CR, 306.5, 305.5 GC, 307
- Excavators: 301.6, 301.8, 302.7CR, 303.5CR, 303CR, 305 CR, 307.5, 305
- Off-Highway Trucks: 785, 793, 789, 735, 725, 730, 740 GC, 745, 740
- Asphalt Pavers: AD63
Additional information
| Machine Model | 120, 14, 301.6, 301.8, 302.7CR, 302CR, 303.5CR, 303CR, 305, 305 CR, 305.5 GC, 306, 306.5, 307, 307.5, 308, 308.5, 310, 725, 730, 735, 740, 740 GC, 745, 785, 789, 793, 953, 963, 992, 995, AD63, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, D4, D6T, D7, D8, D9T |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
