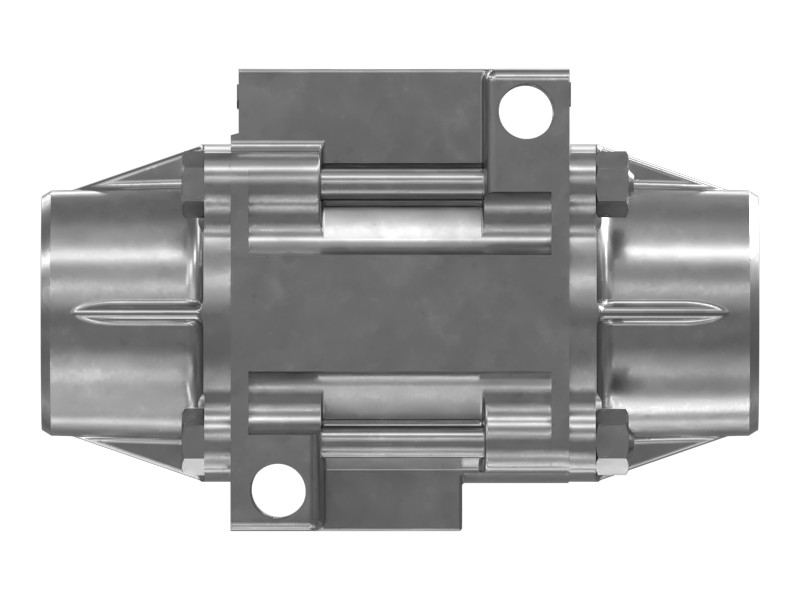

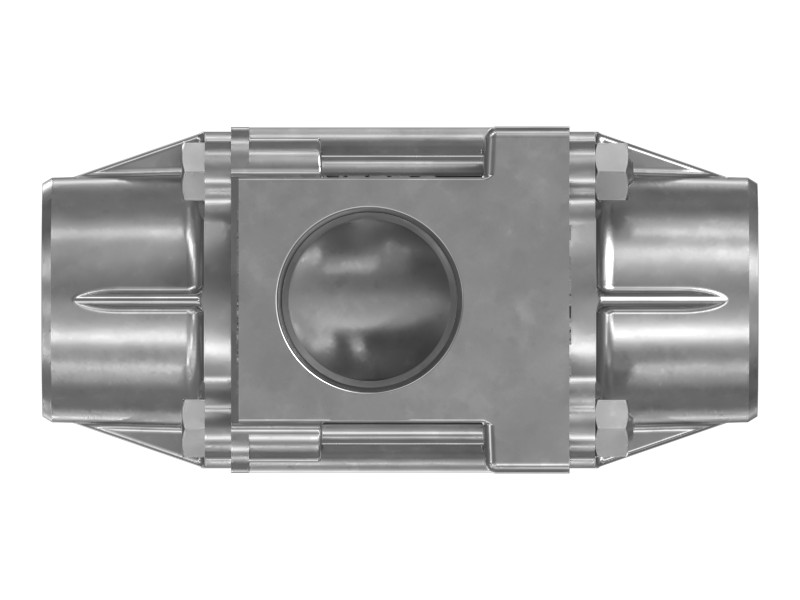

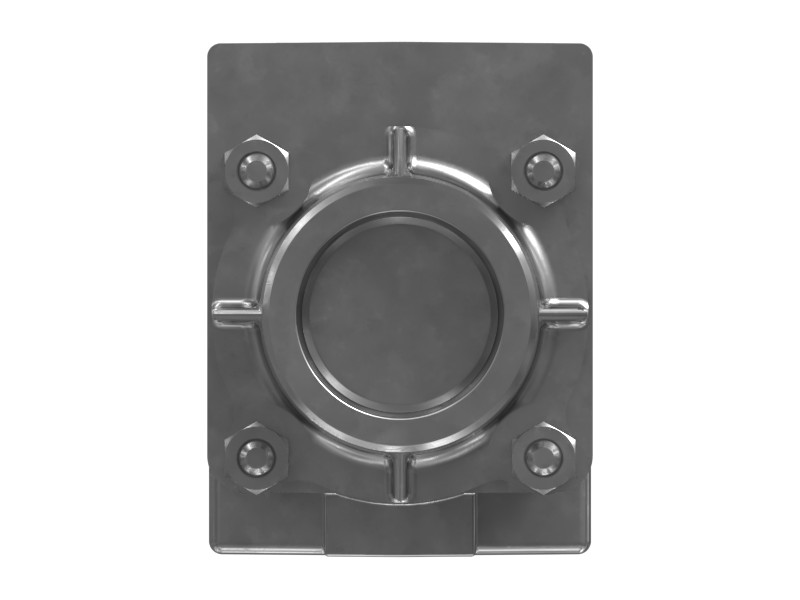

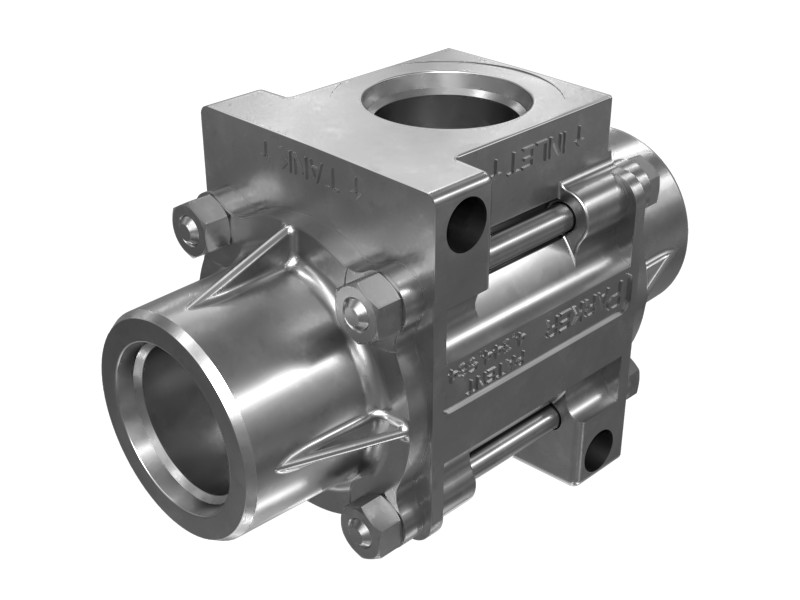

459-1718 1-5/16-12-2B Hydraulic Oil Cooler Bypass Valve
Cat® Hydraulic Oil Cooler Bypass Valve controls oil flow to the cooler, regulating temperature and ensuring optimal hydraulic system performance
Description
The Cat thermal bypass valve regulates fluid temperature by directing return line flow to the cooler or bypassing it directly into the tank.
Features
- Aluminum bypass valve
- Opening Pressure: 60 psi (413 kPa)
- SAE -16 STOR Port
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Material Description | Aluminum |
| Length | 138.2 mm (5.44 in) |
| Width | 66.5 mm (2.618 in) |
| Height | 89.2 mm (3.511 in) |
Compatible Equipment
- Track Loaders: 990K
- Wheel Excavators: MD6200
- Compactors: 834K
- Wheel Loaders: 836, 834, R1700K, 988K, R1700 XE
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
