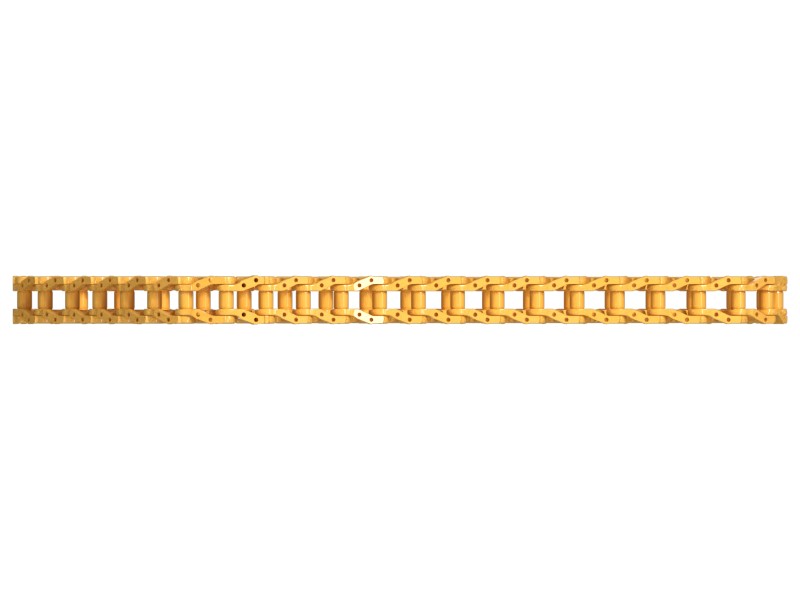

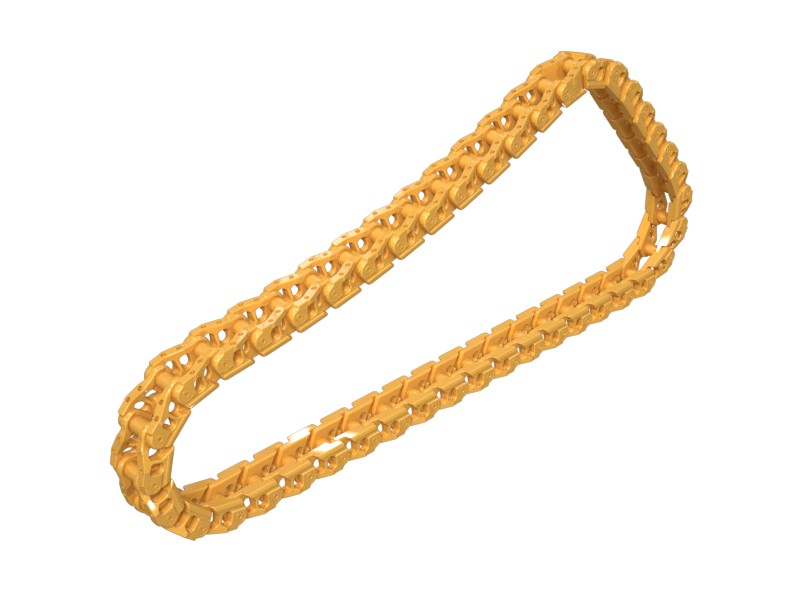

Description
The link group is driven by the sprocket and final drive. It supports the weight of the machine, provides a rail for the machine to travel on, and provides a place for the track shoes to attach.
Features
General duty tracks are designed to be an affordable option for machines at the end of their life cycle or with low utilization. Their lower initial price allows them to be run until failure. All Cat® undercarriage is backed by the Undercarriage System Guarantee. Manufactured by Caterpillar, they are hardened and quality tested to meet the productivity and performance demands of the work site.
Specifications
| Track Shoe Bolt Hole Spacing C | 230 mm (9.055 in) |
|---|---|
| Link Outside Spacing | 257 mm (10.118 in) |
| Number of Links | 43 |
| Link Height | 166 mm (6.535 in) |
| Link Inside Spacing at Roller | 121 mm (4.764 in) |
| Bushing Outside Diameter | 85 mm (3.346 in) |
| Track Pitch | 240 mm (9.449 in) |
| Rail to Bushing Outside Diameter | 55.5 mm (2.185 in) |
| Track Shoe Bolt Hole Spacing B | 170 mm (6.693 in) |
| Bolt Hole Diameter | 26.39 mm (1.039 in) |
| Pin Retention System | PPR |
| Link Inside Spacing at Sprocket | 105 mm (4.134 in) |
| Rail to Pin Boss Outside Diameter | 60.5 mm (2.382 in) |
| Pin Length | 273.5 mm (10.768 in) |
| Rotating Bushing Track | No RBT |
| Track Shoe Bolt Hole Spacing A | 74.5 mm (2.933 in) |
| Wear Sensor | No |
| Undercarriage System | GD |
| Number of Track Links | 43 |
| Seal and Lubrication Type | SALT |
| Track Reinforcement System | Not Applicable |
| Track Bolt Thread | 1 |
| Grease Lubricated Track Type | Not Applicable |
| Main Bolt Thread | 1 |
| Master Link Type | 5 Tooth Master |
Compatible Equipment
- Dozers: D9R, D9T, D9
