Description

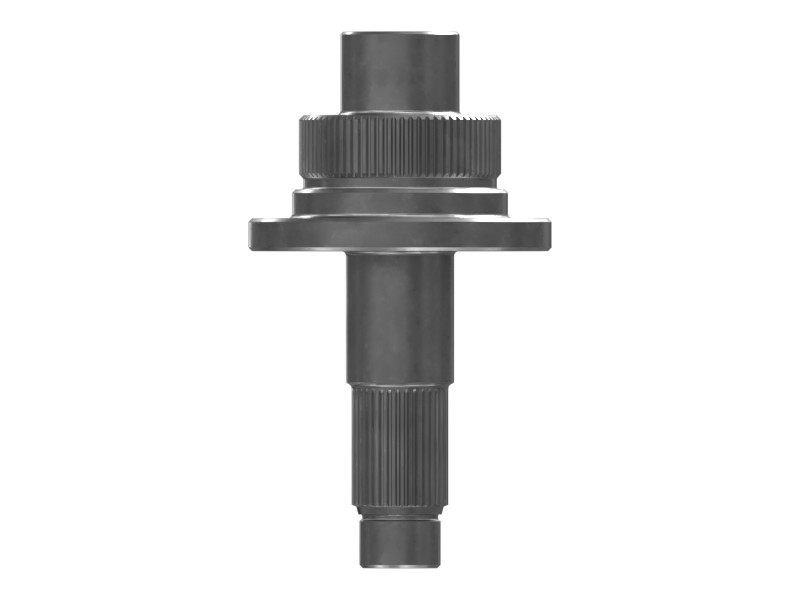

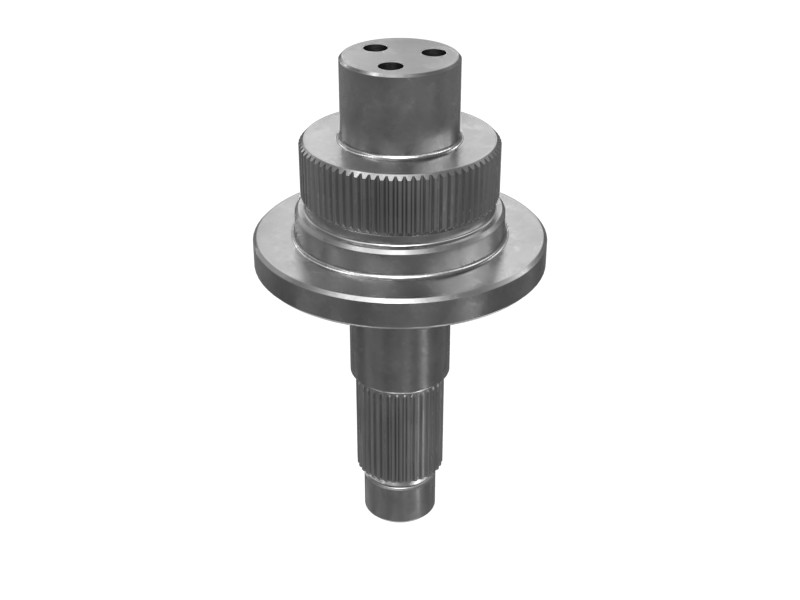

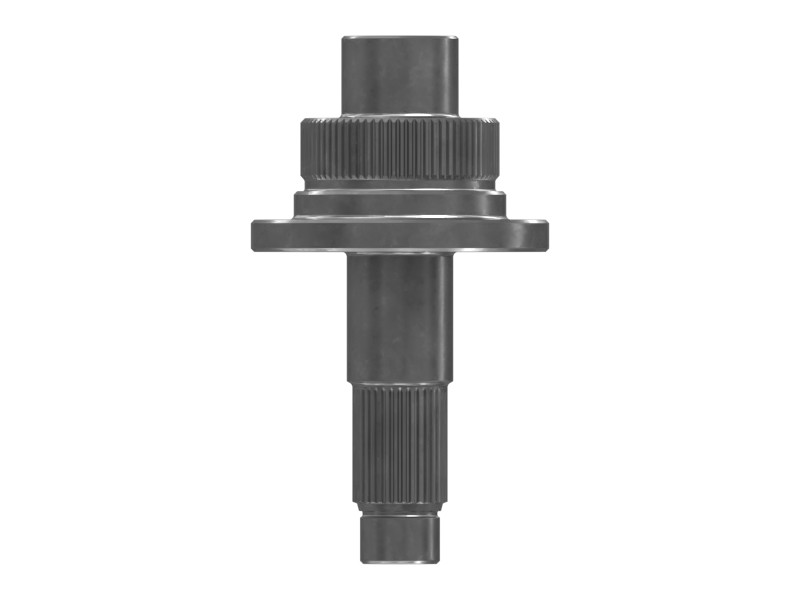

The Cat turntable drive shaft must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. It connects to the clutch group to engage and disengage the turntable drive.
Features
- Hardened steel shaft
- Two external splines, 35 and 74 teeth
Applications
The Cat turntable drive shaft is used in Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Shaft Diameter | 69.7 (Outer) mm (2.7 (Outer) in) |

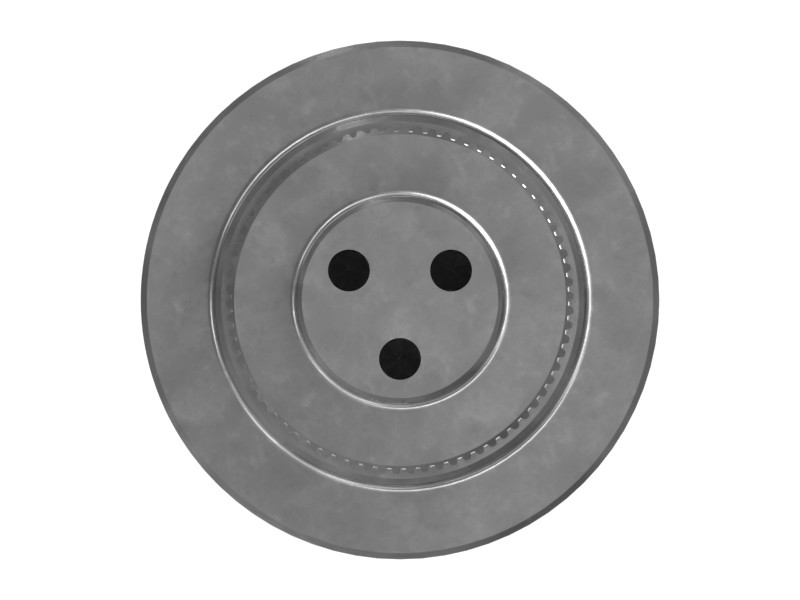

| Hole Thread Size | (3x)M16 X 2-6H mm |
| Outside Diameter | 177.6 mm (6.99 in) |
| Overall Length | 314.5 mm (12.38 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Motor Graders: 120, 14, 140K, 140G, 12K, 160K, 120H
