Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M6 mm (0 in) |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 100 mm (3.937 in) |

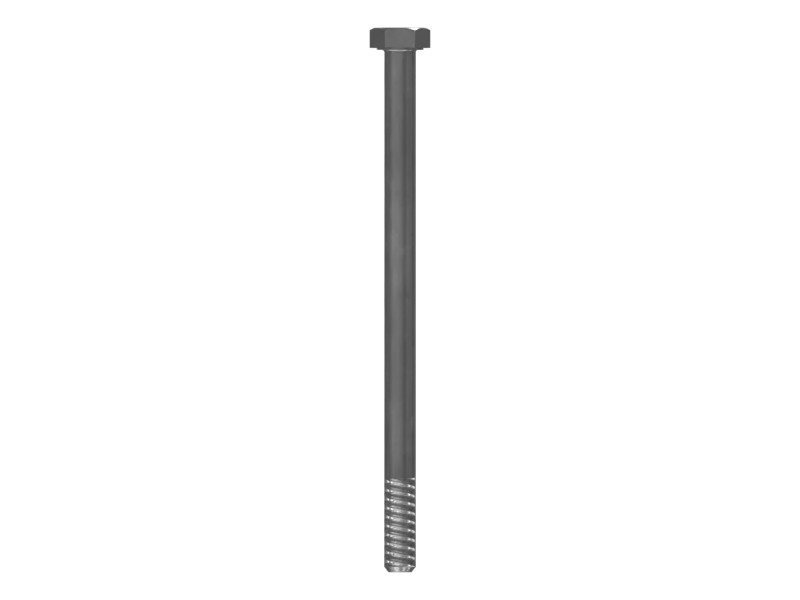

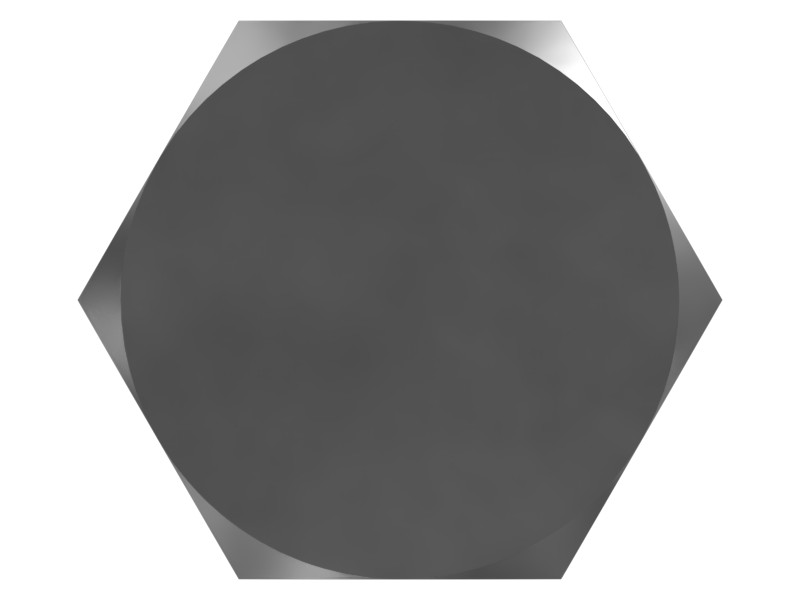

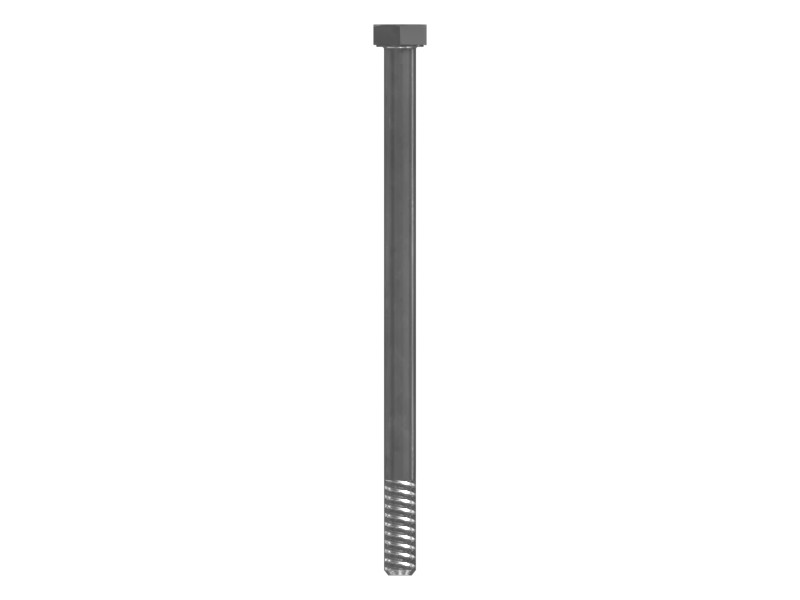

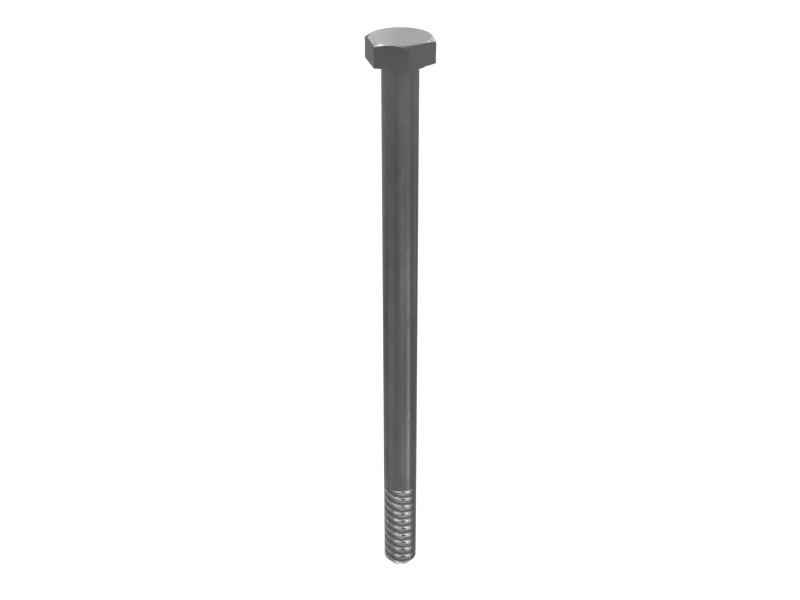

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 82 mm (3.228 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C
- Track Loaders: 982
- Engines: C15, C13, C32, C175-16, C18
- Skid Steer Loaders: 249D3, 239D3, 299D3 XE, 289D3, 259D3
- Motor Graders: 120, 140 GC, 14
- Wheel Excavators: MD6200
- Dozers: D10, D11
- Excavators: 374, 3516E, 395, 6040, 6015, 120 GC, 3516B
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 303.5
- Wheel Loaders: R1700K, 980, R2900 XE, RM400, 980L, R1700 XE
- Off-Highway Trucks: 797F, 793, 785, 793F, 789D, 793D, 785D, 789
Additional information
| Machine Model | 120, 120 GC, 14, 140 GC, 239D3, 249D3, 259D3, 279D3, 289D3, 299D3, 299D3 XE, 303.5, 3516B, 3516C, 3516E, 374, 395, 6015, 6040, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 980, 980L, 982, C13, C15, C175-16, C18, C32, D10, D11, MD6200, R1700 XE, R1700K, R2900 XE, RM400 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
