Description

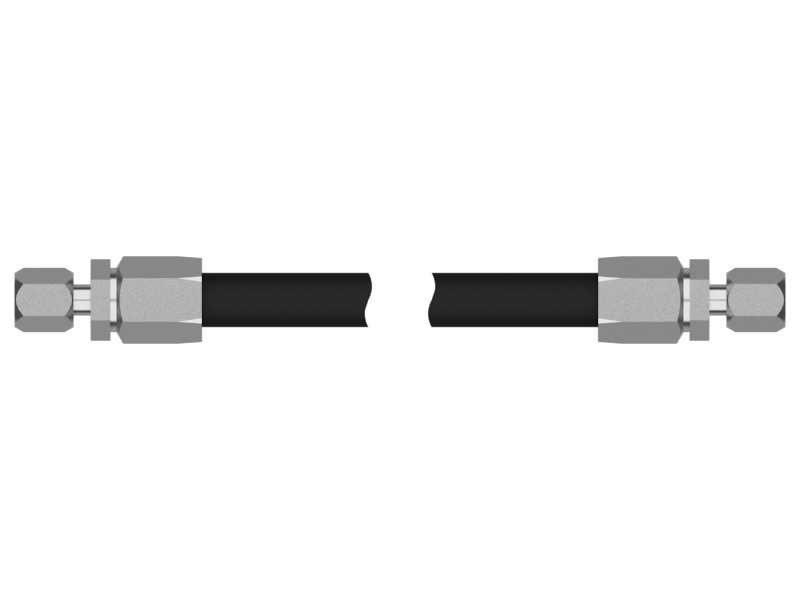

Cat high-temperature, medium-pressure engine and brake hose.
Features
- Bulk Unit of Measure: CM
- Hose Inside Diameter: 25.4 mm (1.0 in)
- Hose Dash Size: -16
- Hose Outside Diameter: 34.2 mm (1.34 in)
- Blue cover
- Minimum Burst Pressure: 27579 kPa (4000 psi)
- Maximum Working Pressure: 6895 kPa (1000 psi)
- Minimum Bend Radius: 150 mm (5.9 in)
- Temperature Range: -40°C to +121°C (-40°F to +250°F)
- Fabric-reinforced synthetic rubber tube; four or six spiral-wrapped layers of high-tensile steel wire reinforcement separated by synthetic rubber layers. Oil-, weather- and abrasion-resistant synthetic rubber cover
- For use with collet-type reusable skive couplings or crimp-type permanent skive couplings
Applications
High-temperature, medium-pressure applications. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Bulk Unit of Measure | CM |
| Inside Diameter | 25.4 mm (1 in) |
| Dash Size | -16 in |
| Material Description | Fabric-reinforced synthetic rubber tube; four or six spiral-wrapped plies of high-tensile steel wire reinforcement separated by synthetic rubber layers. Oil-, weather- and abrasion-resistant synthetic rubber cover |
| Outside Diameter | 34.2 mm (1.34 in) |
| Operating Pressure | 13800 kPa (2001 psi) |
| Operating Temperature | -40°C to 150°C |
| Pressurization Capability | 27600 psi |
| SAE | SAE 100R5 |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 3516B
- Wheel Loaders: 988K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
