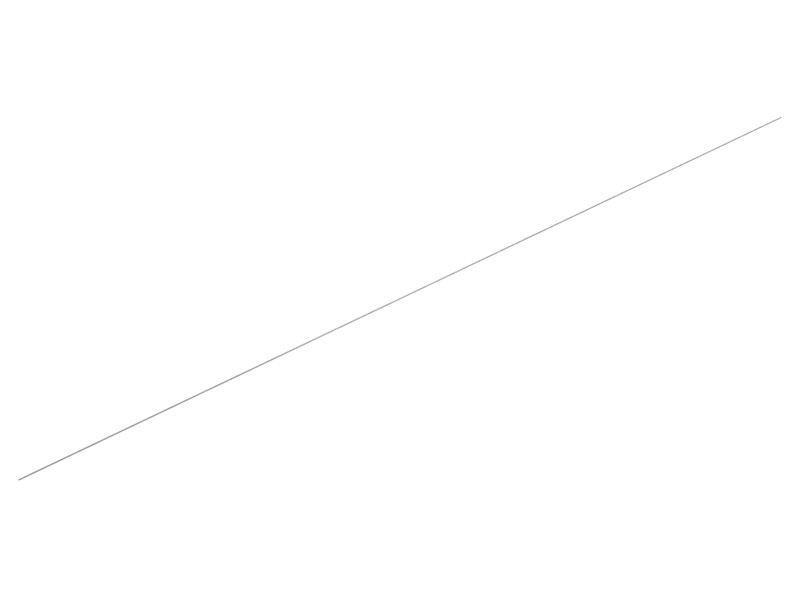

456-8537 15.90 mm ID Bulk Hose
Cat® Hose for Skid Steer Loader Hydraulic Lines
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.
Cat ToughGuard™ hose features an abrasion-resistant cover for use in extremely harsh operating conditions. Tested to more than 2000,000 SAE abrasion cycles, it offers outstanding resistance to the leading cause of hose failure — abrasion.
The hose construction consists of an oil-resistant synthetic rubber inner tube, two layers of braided wire reinforcement and a synthetic rubber cover with a special ToughGuard film outer sheath, providing high abrasion resistance. Reinforcement layers woven or braided from suitable materials may be used over the tubing and/or wires.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Pressurization Capability | 112000 psi |
| Bulk Unit of Measure | CM |
| Inside Diameter | 15.88 mm (0.63 in) |
| Dash Size | -10 in |
| Outside Diameter | 25.5 mm (1 in) |
| Operating Pressure | 28000 kPa (4061 psi) |
| Operating Temperature | -40°C to 121°C |
| SAE | SAE 100R19 |
Additional information
| Part Source | Genuine OEM |
|---|
