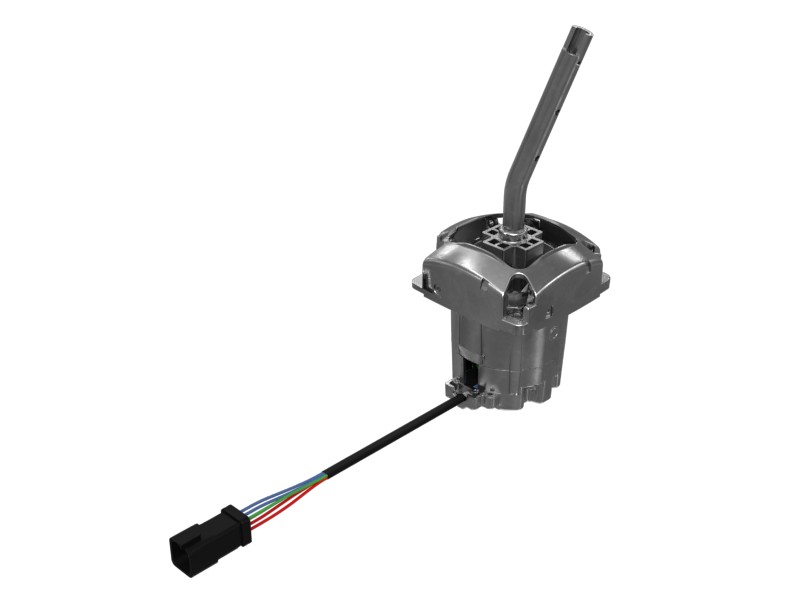

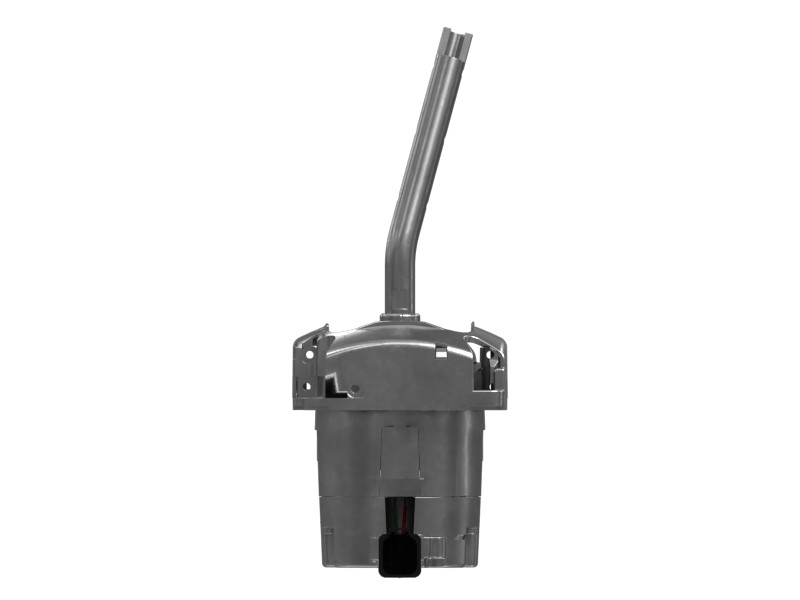

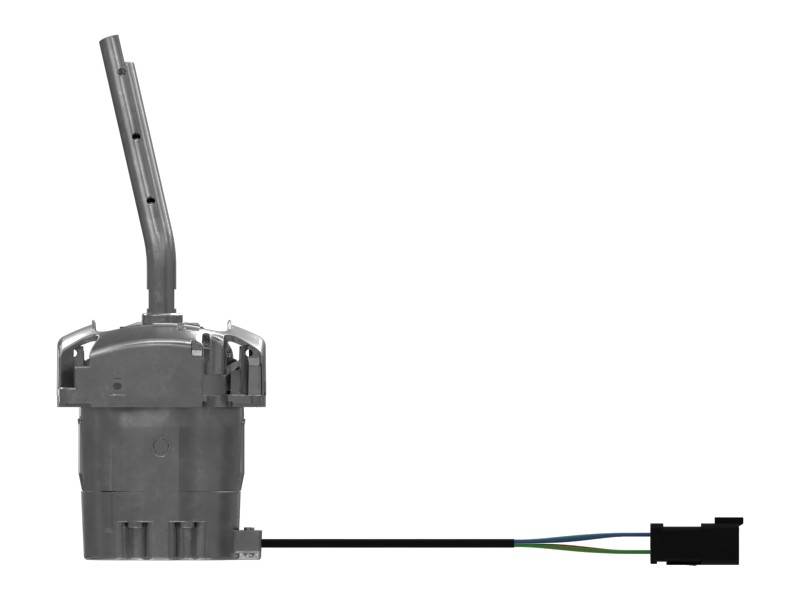

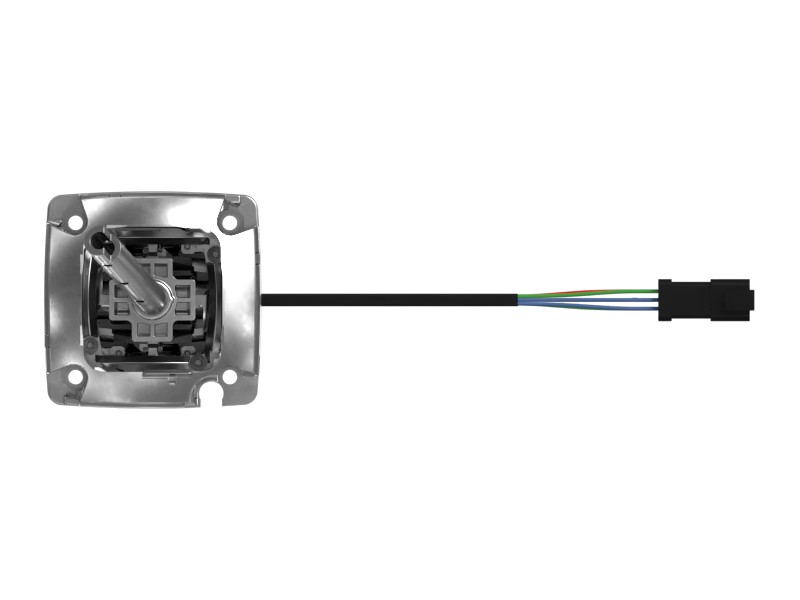

Description
Cat joystick base groups are ergonomically designed for operator ease of use. Operators use them to precisely control specific Cat heavy equipment and implement functions.
Features
- Left-hand joystick base group and wiring harness
- 6-Pin DT connection
- Corner-mount tube
- Aluminum casting
Applications
Base Groups are used to mount joystick controls on Cat heavy equipment and to provide three-dimensional movement of the input handle. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Connector Type | 6-Pin DT |
| Overall Length | 271.6 mm (10.7 in) |
| Overall Width | 108 mm (4.25 in) |
| Overall Height | 108 mm (4.25 in) |
| Pin | 6 |
| Lead Length | 200 mm (7.87 in) |
Compatible Equipment
- Skid Steer Loaders: 246C, 262C, 262D, 279C, 246D, 236D
