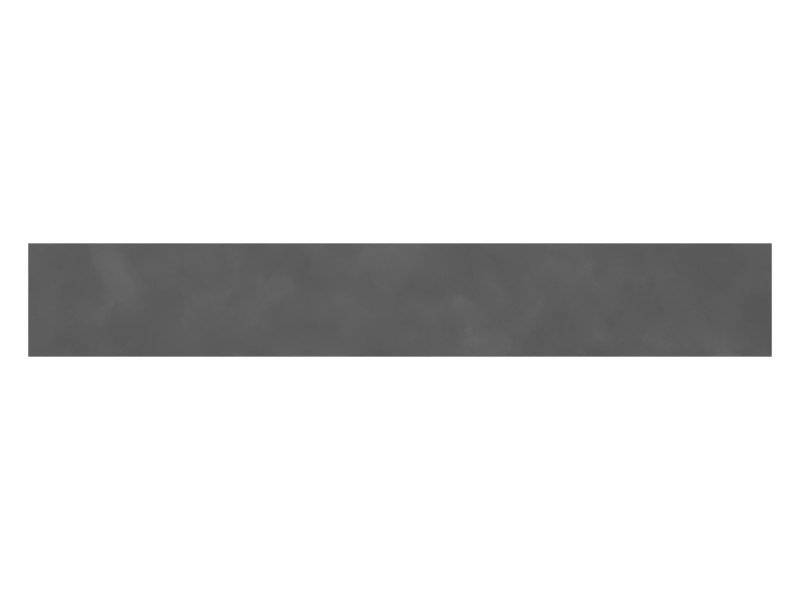

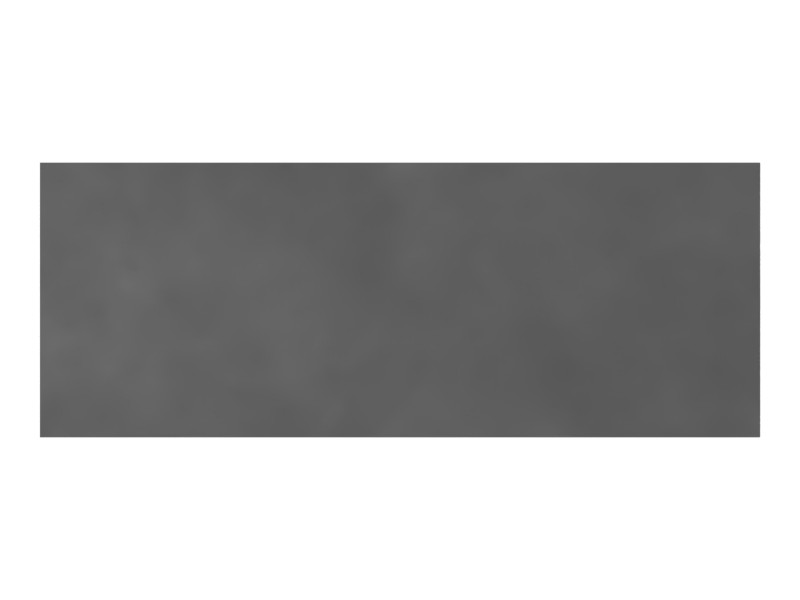

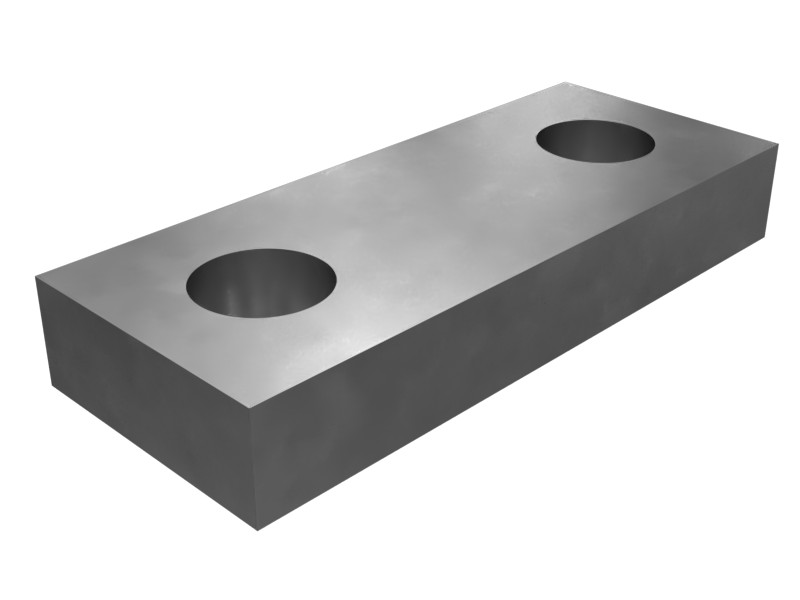

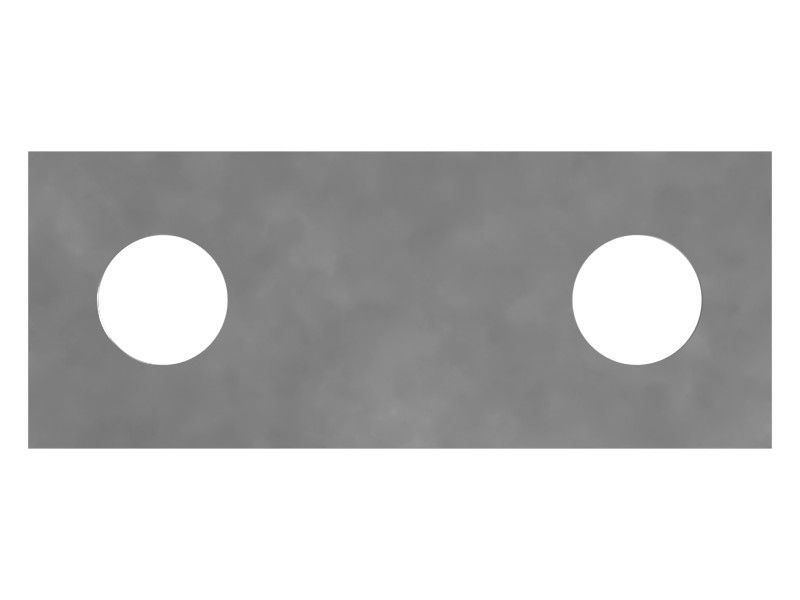

455-9745 9.53 mm Thick Support Plate
Cat® Steel Support Plate, 9.53 mm Thick, for Track Adjusters
Description
Cat® plates are used to secure and support various components in Cat machines. Service part for hydraulic track adjuster assemblies.
Material yield strength range is limited to a minimum of 330 MPa and a maximum of 405 MPa.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information
Specifications
| Length | 62.6 mm (2.5 in) |
|---|---|
| Height | 25 mm (1 in) |
| Thickness | 9.53 mm (0.375 in) |
| Width | 9.53 mm (0.4 in) |
| Hole Size | 11 (2X) mm (0.039 (2X) in) |
| Material | Structural Steel |
| Weight | 0.103 kg (0.2 lb) |
Compatible Equipment
- Dozers: D5K LGP, D5K XL, D3K2 LGP, D5K2 XL
