Description

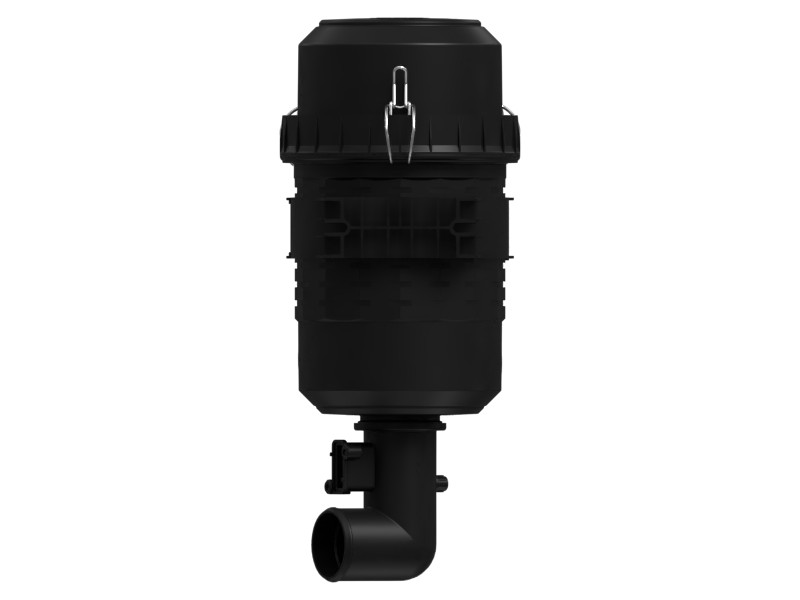

The air filter, also known as an air cleaner or intake filter, filters the air entering the engine, removing contaminants and preventing them from entering the combustion chamber. It is located between the air intake unit and the engine intake manifold and consists of two separate filter elements installed inside the air cleaner. The main purpose of the air filter is to capture and retain airborne particles such as dust, dirt, pollen and debris, preventing them from entering the engine.
Attributes
- Withstands harsh operating conditions
- Helps reduce emissions and promote cleaner air
Applications
The air filter acts as a filtration device that helps prevent damage and wear to engine parts such as cylinders, pistons, valves and piston rings.
Specifications
| Type | Round |
|---|---|
| Overall Height | 269.9 mm (10.626 in) |
| Overall Length | 464.9 mm (18.303 in) |
| Overall Width | 198 mm (7.795 in) |
| Length | 0 mm (18.303 in) |
| Height | 269.9 mm (10.626 in) |
| Width | 198 mm (7.795 in) |
| Mounting | Top |
| Outlet Size | 60 mm (2.362 in) |
| Material | Polypropylene Plastic |
Compatible Equipment
- Mini Excavators: 305.5E2, 305E2
- Excavators: 305E2 CR
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
