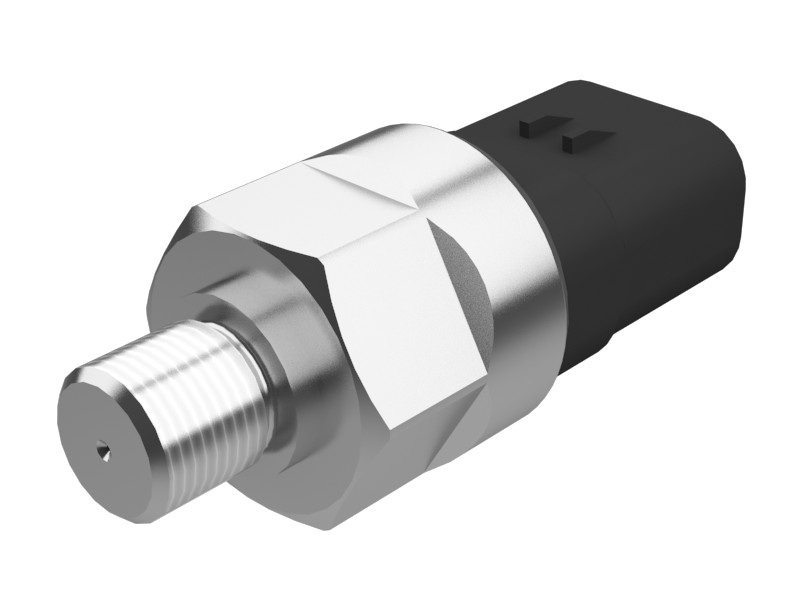

453-5523 3-Pin Ratiometric Pressure Sensor
Cat® 3-Pin Proportional Air Pressure Sensor for Hydraulic Pilot Control Valve Lines
Description
Cat high pressure sensors use strain gauge-based technology to generate an output signal (analog, PWM (Pulse Width Modulation), or variable frequency) proportional to the applied pressure. Sensors are available with a variety of electrical connector and process connection types.
Features
- Compact size
- Easy to install
- Can be used with integral connectors or a variety of harness lengths
Applications
- High pressure sensors are widely used in various machine applications, such as brake systems, steering systems, and hydraulic systems.
- Cat pressure sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Voltage | 5 DC Regulated VAC |
|---|---|
| Hole Thread Size | SAE #4M in |
| Connector Type | 3-Pin Ampseal |
| Material | Stainless Steel |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 349F L, 320D3 GC, 330D2, 336F, 336F L, 352F, 313F L, 320D3, 320D2 L, 323D2 L, 336F LN, 335F LCR, 330D2 L, 323D2, 312F, 320D2, 326D2, 326D2 L
