Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M8 mm (0 in) |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 20 mm (0.787 in) |

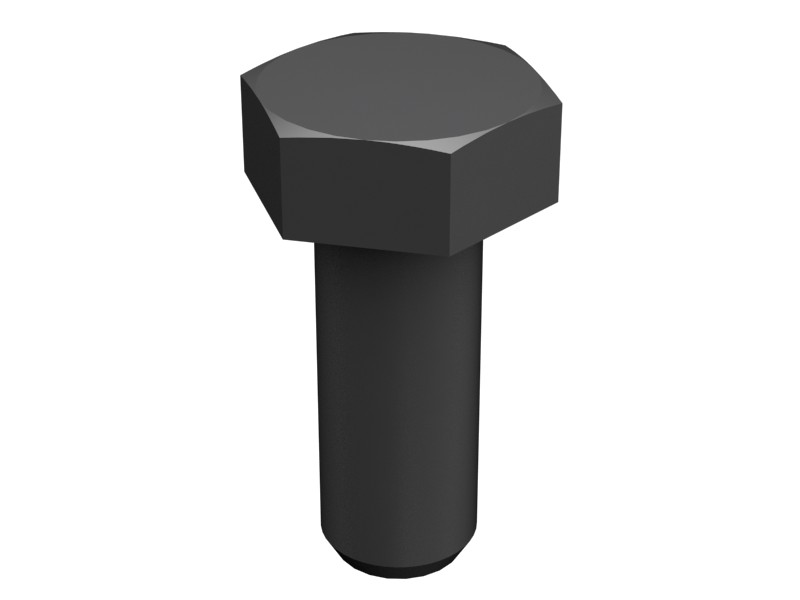

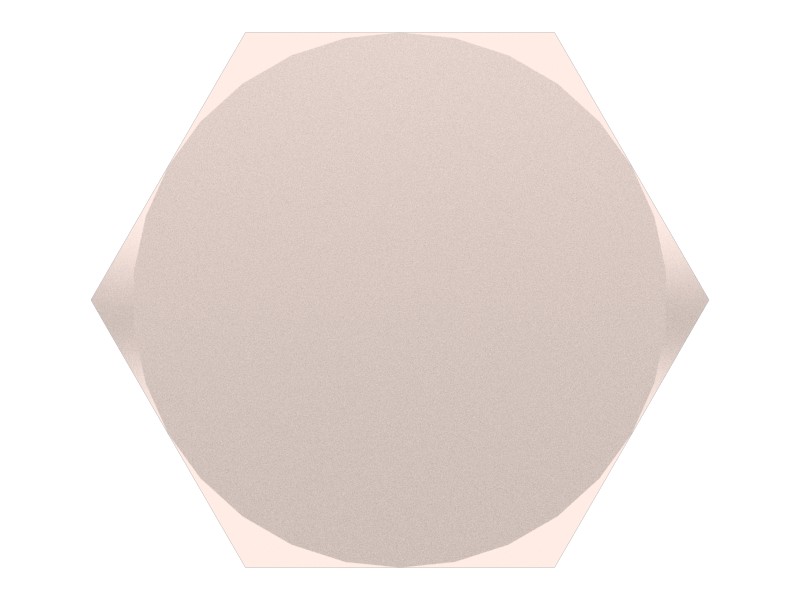

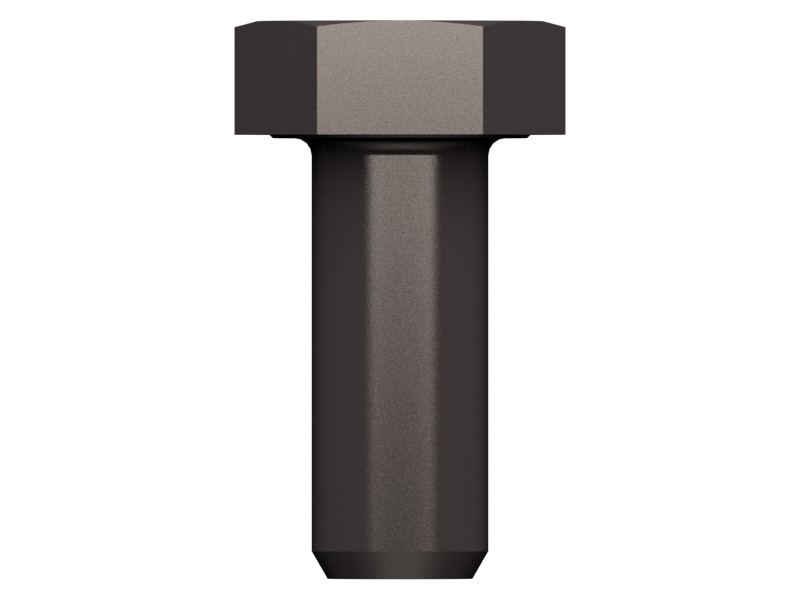

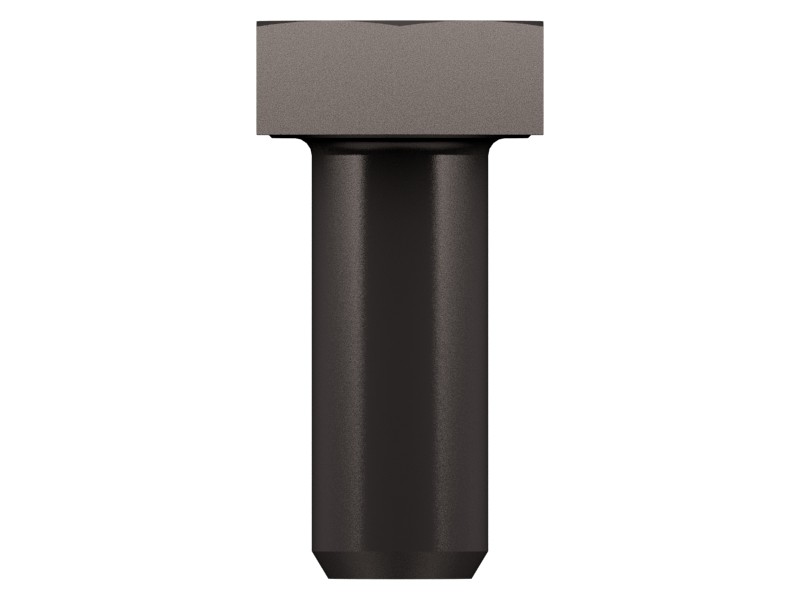

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 4 mm (0.148 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 326 GC, 323 GC, 320, 320 GC, 336, 333, 320 GX, 320D3, 326, 336 GC, 340, 320D3 GC, 323, 335, 325, 330 GC, 320D L, 323 GX, 329E L, 336D2 GC, 336D2 L, 340D2 L, 320D2 L, 325D L, 329D L, 330GC, 320E, 330D2, 315F LCR, 324D L, 323GC, 323D2 L, 326D L, 330D2 L, 325D, 324D, 336D2 XE, 323D2, 320D2 GC, 329E, 326GC, 374F L, 390F, 333 GC, 330, 320D2, 336D2, 320D, 329D, 326D2, 326D2 L, 329D2 L, 329D2, 374F, 390F L
- Off-Highway Trucks: 7495
Additional information
| Machine Model | 315F LCR, 320, 320 GC, 320 GX, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323 GC, 323 GX, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 336, 336 GC, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340, 340D2 L, 3512B, 374F, 374F L, 390F, 390F L, 7495 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
