Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

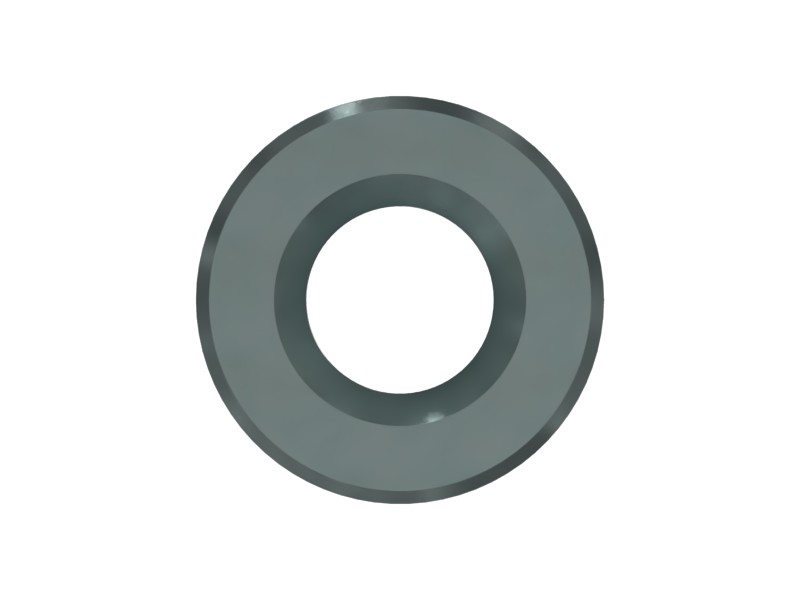

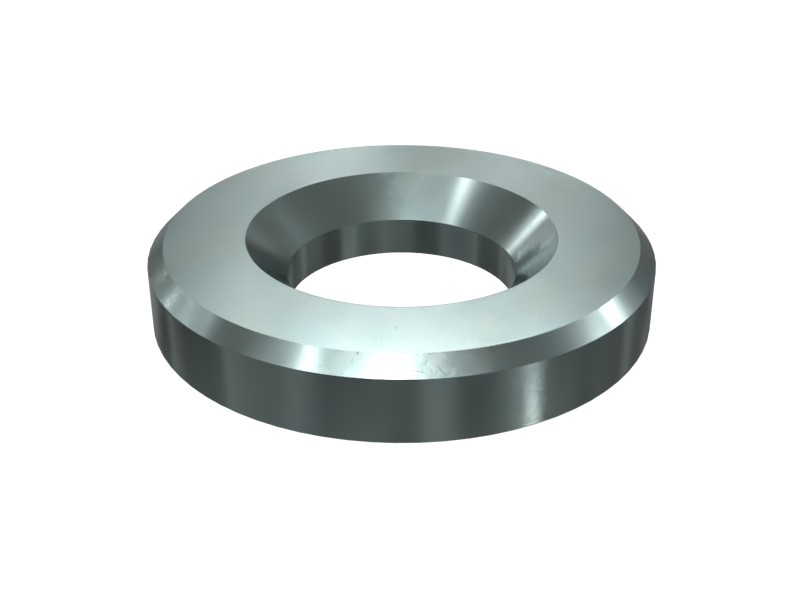

Specifications
| Material | Alloy Zinc |
|---|---|
| Gasket Type | Flat Washer |
| Outside Diameter | 38 mm (1.496 in) |
| Inside Diameter | 17.5 mm (0.689 in) |
| Fits Bolt Size | M16 mm (5/8 in) |

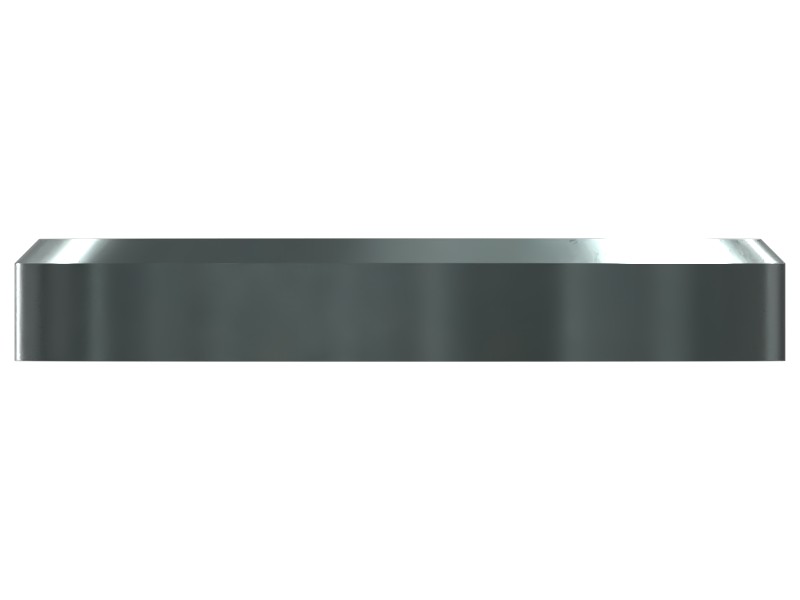

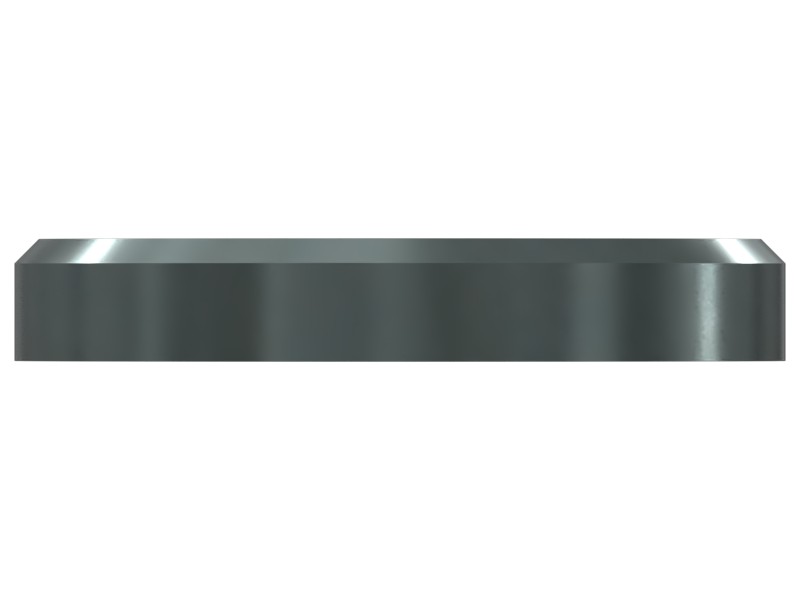

| Thickness | 6 mm (0.236 in) |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
Compatible Equipment
- Motor Graders: 349 GC
- Generator Sets: 3512B
- Wheel Excavators: MD6310
- Excavators: 374, 330D L, 349F L, 350, 352, 349D L, 3101, 355, 349, 395, 340, 336, 312E, 320E, 315F LCR, 320C, 325C, 323D L, 336D2 L, 330D2 L, 320D RR, 330 GC, 324D, 329D L, 320D L, 330C, 312F, 324D L, 323D2 L, 336D L, 336F, 320D2 L, 325D L, 330D, 335F LCR, 330C L, 320B, 320D2 GC, 328D LCR, 320C L, 325C L, 320D FM, 336E L, 326, 325D, 345D L, 385C FS, 349E L, 345C L, 385B, 385C, 345C, 390D, 374F L, 352F, 349E, 385C L, 390F, 349E L VG, 340D L, 345D, 320D2, 320D, 336D, 326D2 L, 329D, 329D2 L, 336D2, 329D2, 390D L, 390F L, 349D2 L, 374D L, 349D2, 374F, 349D
Additional information
| Machine Model | 3101, 312E, 312F, 315F LCR, 320B, 320C, 320C L, 320D, 320D FM, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D L, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330 GC, 330C, 330C L, 330D, 330D L, 330D2 L, 335F LCR, 336, 336D, 336D L, 336D2, 336D2 L, 336E L, 336F, 340, 340D L, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 3512B, 352, 352F, 355, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, MD6310 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
