Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Locking Feature | None |
| Thread Size | M16 mm (0 in) |
| Material | STEEL |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 40 mm (1.575 in) |

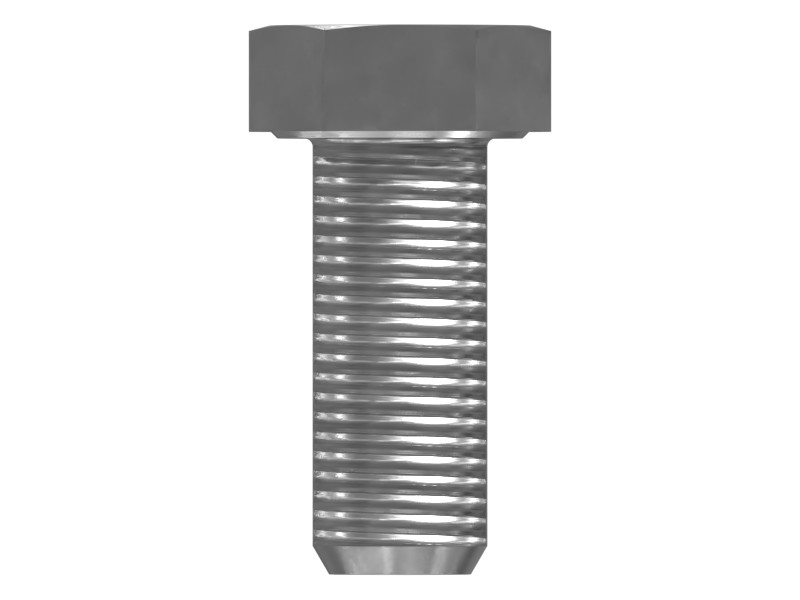

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 6 mm (0.236 in) |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Motor Graders: 316F
- Wheel Excavators: M315, M315GC
- Mini Excavators: 307C, 307D
- Excavators: 374, 330D L, 349F L, 316 GC, 313, 313 GC, 395, 313D2, 315 GC, 352, 350, 336D2 L, 374F L, 340, 336, 320D3 GC, 320 GX, 323 GX, 315, 316 GX, 312 GX, 320 GC, 336 GC, 320D2 L, 320C, 312D, 320D L, 312E, 329D L, 311D LRR, 336F L, 336D2 XE, 315C, 323, 336D L, 336E LH, 312D L, 330D, 336F LN, 314D CR, 330D2, 320, 335F LCR, 329E L, 312C, 323D L, 336F, 318D2 L, 325C, 312D2 L, 345C, 385C, 349D L, 345D L, 365B, 345D, 390F, 365C, 365C L, 349E, 352F, 349E L VG, 349E L, 385B, 385C L, 390D, 345C L, 340D2 L, 385C FS, 340D L, 365B L, 313 GX, 320D3, 320E, 330GC, 312C L, 323D2 L, 323D, 336E H, 312D2 GC, 313F L, 315D L, 312E L, 330D2 L, 313D2-GC, 324D, 318D2, 312D2, 330C L, 336D2 GC, 323GC, 325D L, 320D RR, 336E LN, 320D FM, 320D2 GC, 313F LGC, 336E L, 314D LCR, 313D, 336F L XE, 328D LCR, 324D L, 336E, 325D, 318D L, 313D2 GC, 323D2, 320D GC, 329E, 326D L, 315F LCR, 312F, 311C, 325C L, 325, 326, 330C, 312 GC, 333, 350MHPU, 323 GC, 3101, 320D, 330, 320D2, 329D, 326D2, 326D2 L, 336D2, 374D L, 390F L, 349D2 L, 349D, 374F, 390D L, 349D2, 329D2 L, 336D, 329D2
- Skid Steer Loaders: 313D2 LGP
