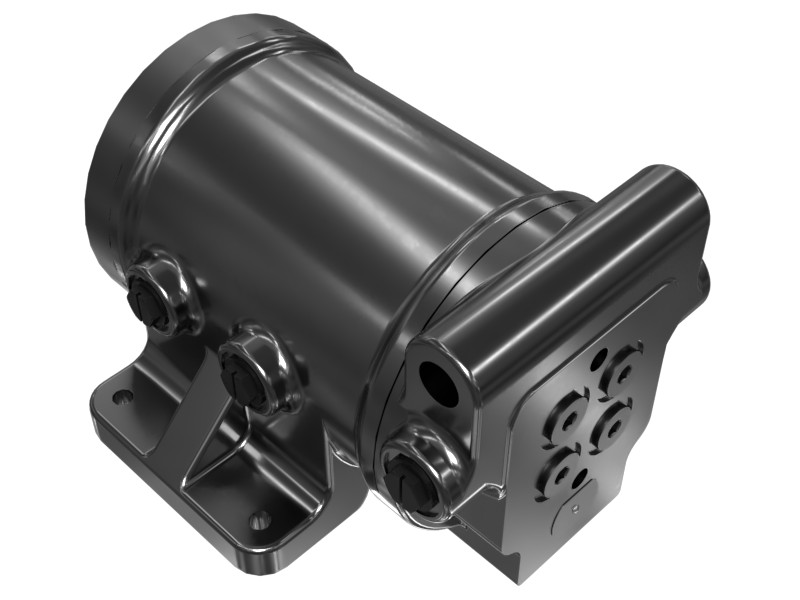

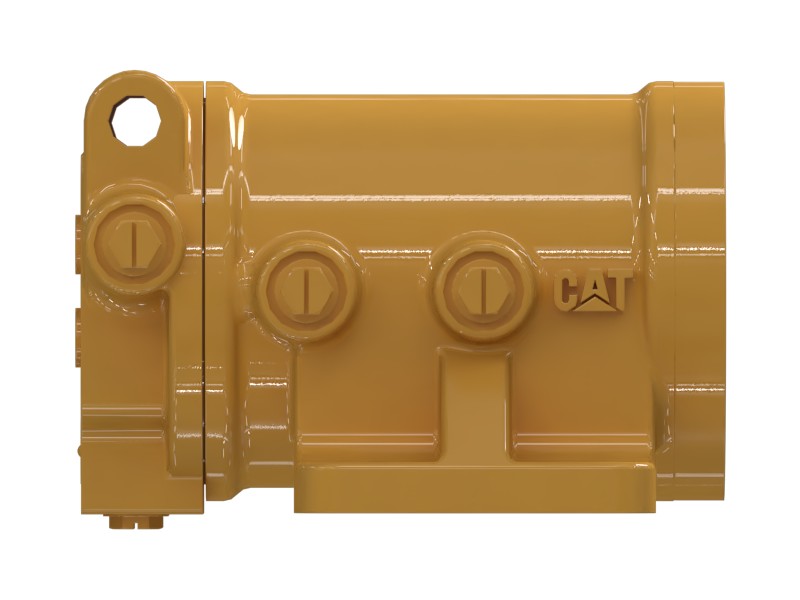

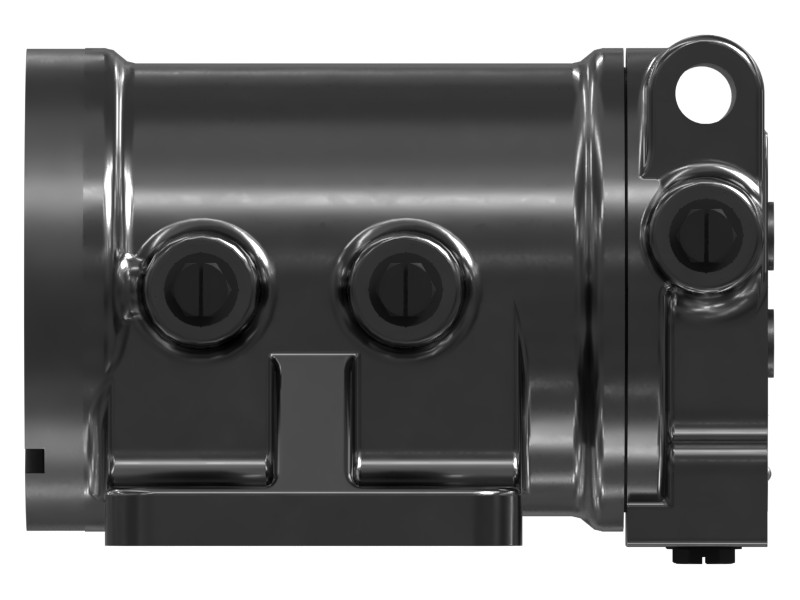

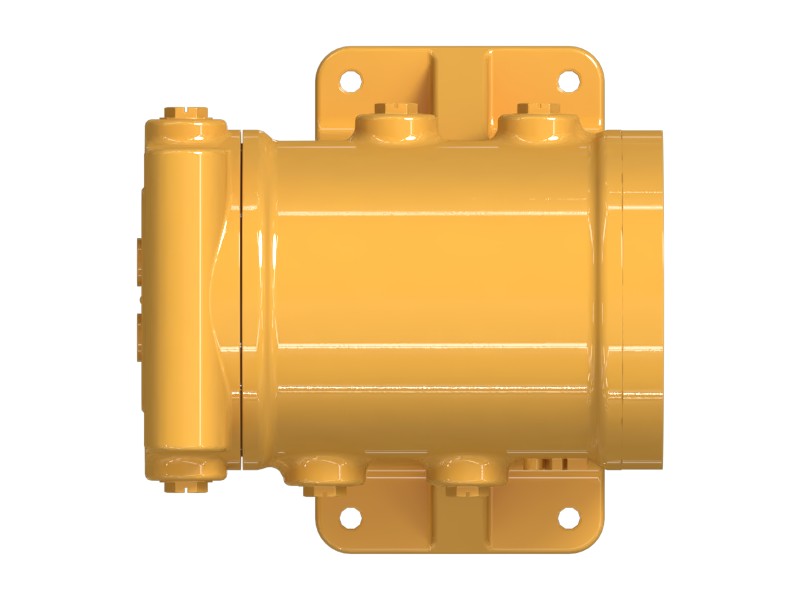

452-9419 Hydraulic System Circle Drive Rotation Unit
Cat® Rotary Joint for Motor Grader Circle Drive
Description
452-9419 is a rotary joint used to direct nitrogen flow in the accumulator line, allowing the circle drive to control the blade angle relative to the machine.
Features
- Circle drive rotary joint assembly
- Ports: -8 STOR (4X)
- Color: Yellow
- Thread: M12 (4X)
Applications
Fits certain motor grader models. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Hole Spacing | 102 (2X); 203 (2X) mm (4 (2X); 8 (2X) in) |
|---|---|
| Length | 7.05 mm |
| Material | Cast Iron (Body) |
| Thread Size | M12 (4X) mm |
Compatible Equipment
- Motor Graders: 120, 16M3, 14M, 16M, 18, 14, 16
- Skid Steer Loaders: 24
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
