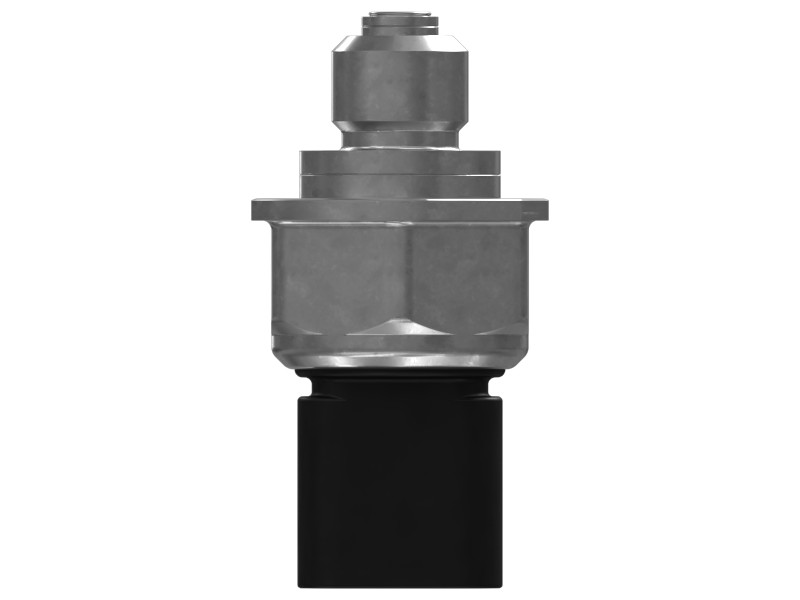

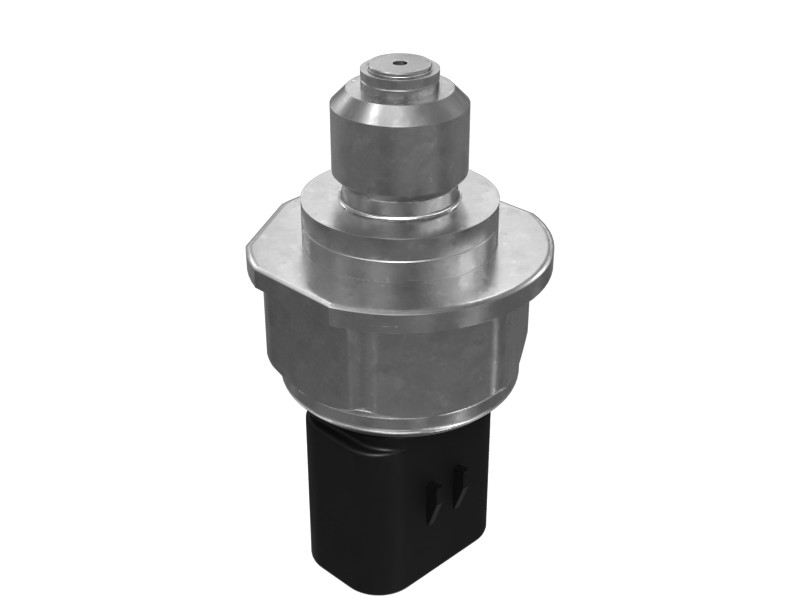

451-2625 10 MPa Pressure Sensor
Cat® pressure sensor measures the pressure of gases or liquids and converts the measurement into an electrical signal for real-time monitoring and control
Description
Cat high pressure sensors use strain gauge-based technology to generate an output signal (analog, PWM (Pulse Width Modulation), or variable frequency) proportional to the applied pressure. Sensors are available with a variety of electrical connector and process connection types.
Features
- Compact size
- Easy to install
- Can be used with integral connectors or a variety of harness lengths
Applications
- High pressure sensors are widely used in various machine applications, such as brake systems, steering systems, and hydraulic systems.
- Cat pressure sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Stainless Steel |
|---|---|
| Connector Type | 3-Pin Ampseal |
| Voltage | +7 to +14 DC Regulated VAC |
| Hole Thread Size | SAE #6M in |
Compatible Equipment
- Motor Graders: 140 GC, 140K, 120, 12K, 160K
- Track Loaders: 982, 972, 990K
- Excavators: 120 GC, 374F L, 390F, 390F L, 374F
- Wheel Loaders: 950, 966, 980, 988K, R1300G
- Off-Highway Trucks: 794 AC, 796 AC, 789, 785, 798 AC, 793, 730, 725, 735, 773
Additional information
| Machine Model | 120, 120 GC, 12K, 140 GC, 140K, 160K, 374F, 374F L, 390F, 390F L, 725, 730, 735, 773, 785, 789, 793, 794 AC, 796 AC, 798 AC, 950, 966, 972, 980, 982, 988K, 990K, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
