Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | M12 mm (0 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Bolt Length | 30 mm (1.181 in) |

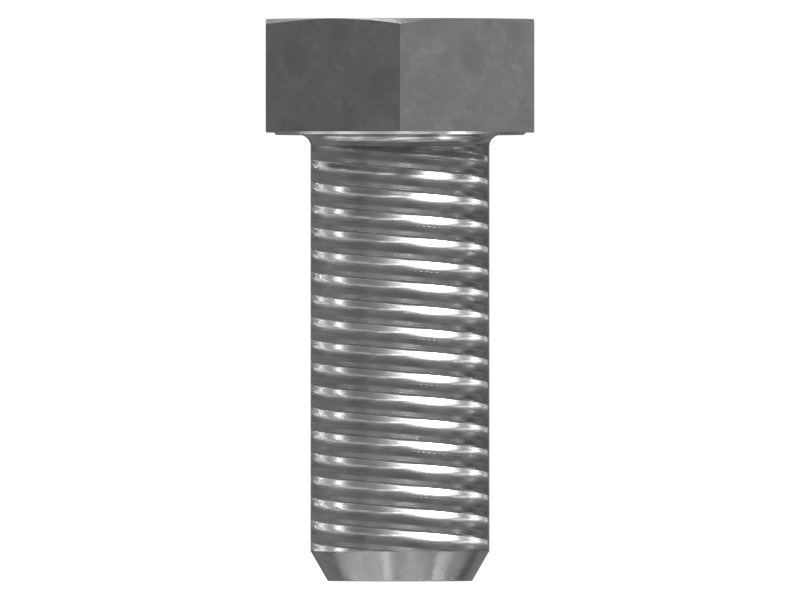

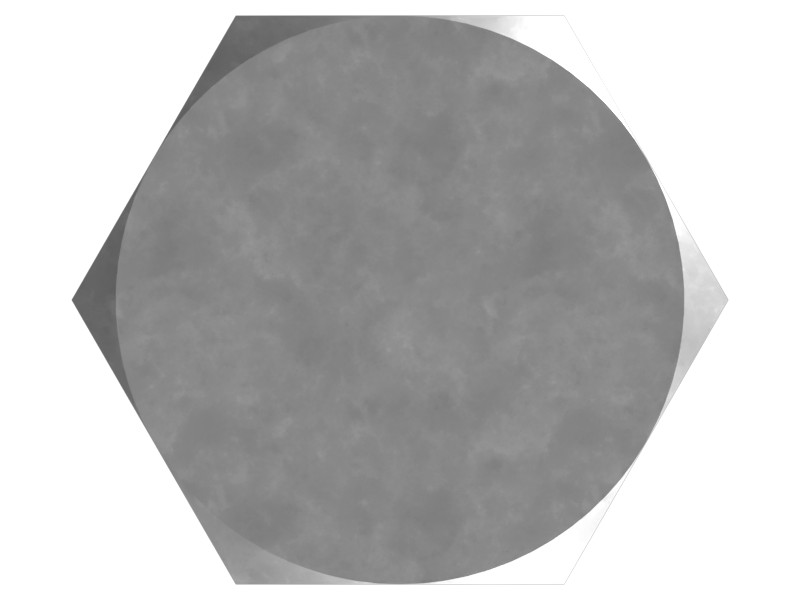

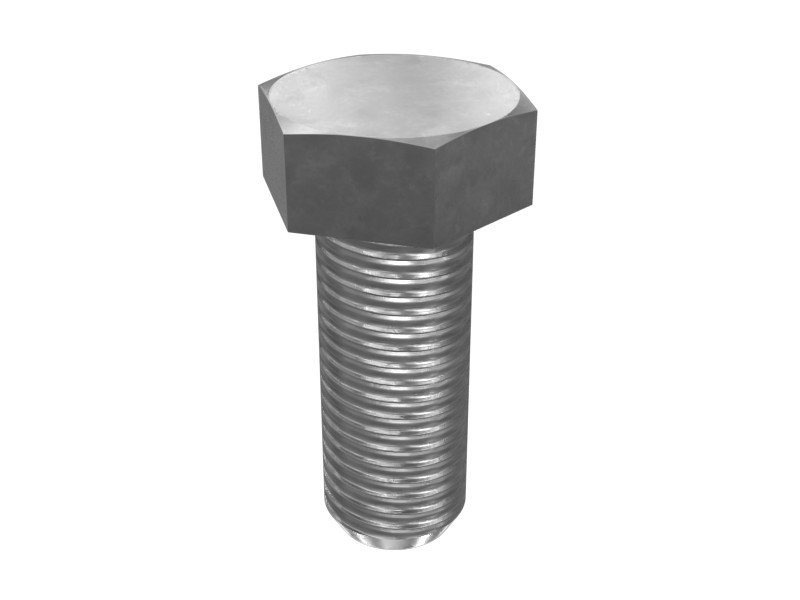

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 5 mm (0.207 in) |
| Material | STEEL |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 330D L, 374, 340, 336 GC, 323D2 L, 323D L, 320 GC, 320D FM, 320D2 L, 336, 330D2 L, 336D L, 320D L, 336D2 L, 320, 323, 320D RR, 326, 330D2, 330 GC, 352, 325, 350, 350MHPU, 333, 395, 320 GX, 330D, 336D2 GC, 326GC, 330GC, 355, 3101, 323 GX, 345 GC, 326 GC, 323GC, 335, 349, 320D GC, 323D2, 323D, 320D2 GC, 374F L, 390F, 340D L, 340D2 L, 333 GC, 336D, 320D, 320D2, 329D2, 329D2 L, 336D2, 326D2, 326D2 L, 330, 390F L, 374F
Additional information
| Machine Model | 3101, 320, 320 GC, 320 GX, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 325, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 330, 330 GC, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 340, 340D L, 340D2 L, 345 GC, 349, 349 GC, 350, 350MHPU, 352, 355, 374, 374F, 374F L, 390F, 390F L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
