Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

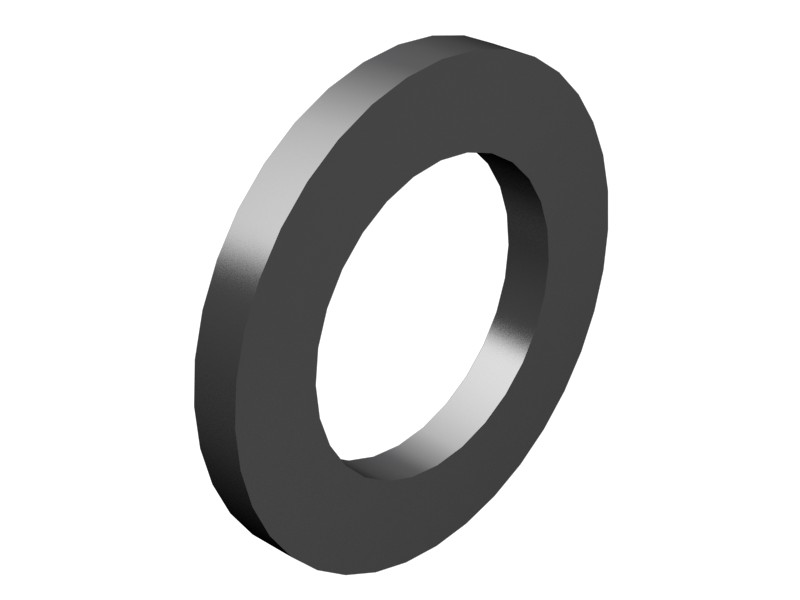

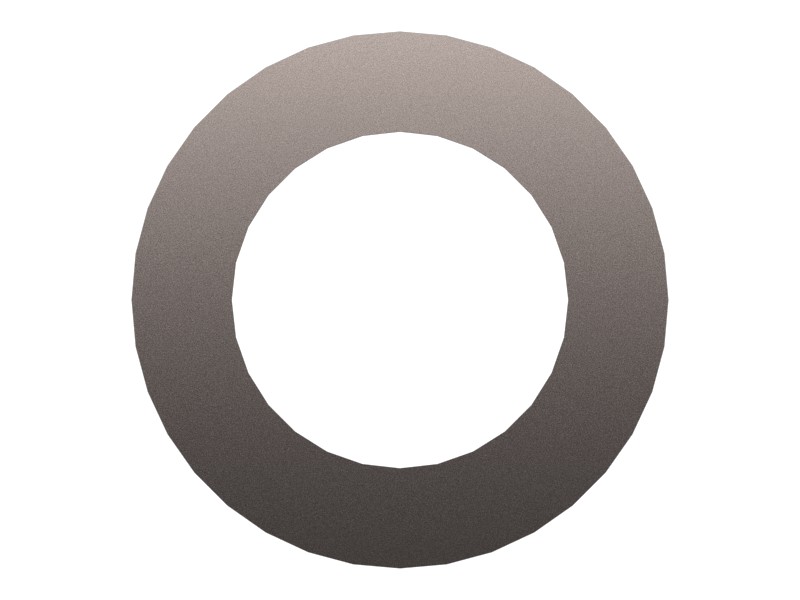

Specifications
| Material | HARDENED STEEL |
|---|---|
| Gasket Type | Flat Washer |
| Outside Diameter | 22 mm (0.866 in) |
| Inside Diameter | 22 mm (0.866 in) |

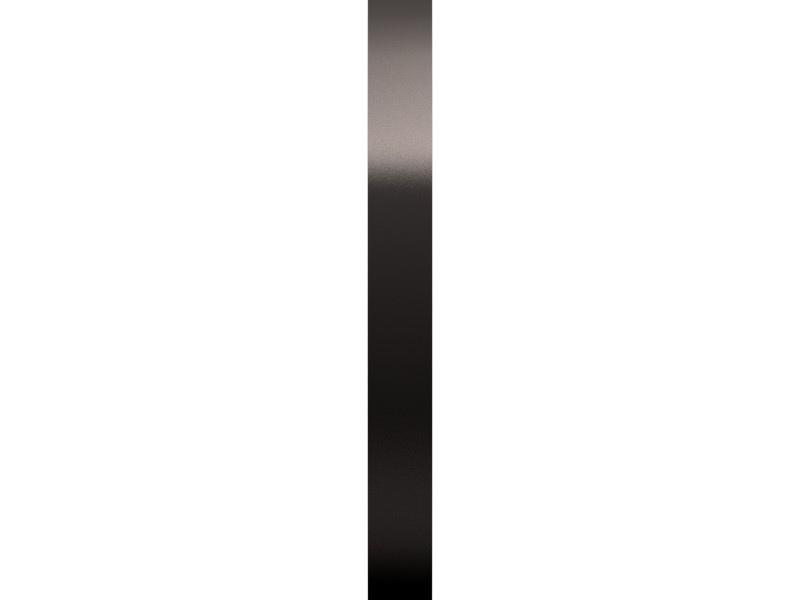

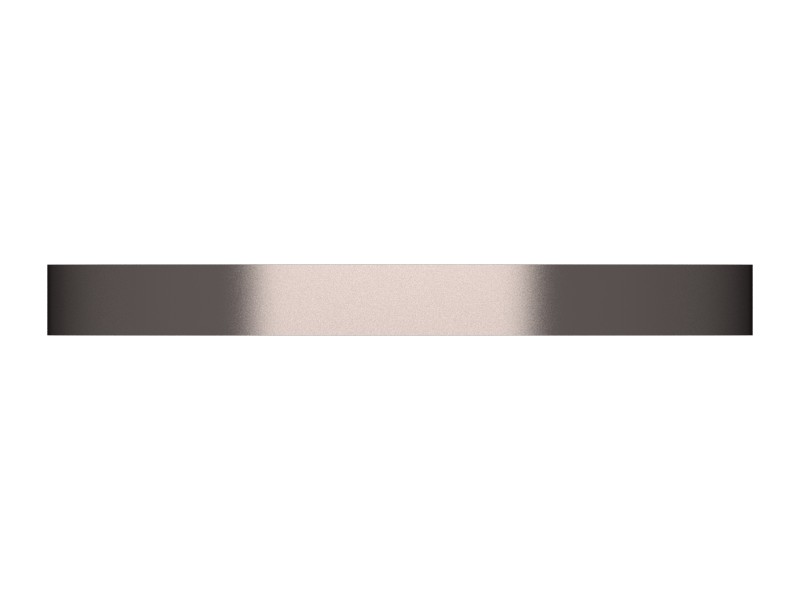

| Thickness | 3.5 mm (0.138 in) |
| Fits Bolt Size | M33 mm (1-1/4 in) |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
Compatible Equipment
- Generator Sets: 3512B, C4.4
- Motor Graders: 316F, 349 GC
- Wheel Excavators: M315, M315GC, M320
- Excavators: 374, 313, 349F L, 330D L, 313 GC, 316 GC, 350, 349, 352, 395, 315 GC, 336, 349D L, 320, 336D L, 326, 336E L, 330 GC, 340, 326D L, 355, 324D L, 329D L, 320D3 GC, 336F L XE, 320 GC, 320 GX, 329E, 329E L, 325, 336 GC, 323 GX, 320D FM, 323GC, 390F, 345 GC, 323D L, 3101, 315, 323, 336E, 330GC, 318D2 L, 325D L, 313D2, 336F L, 336F, 330D2, 320D2 L, 320D L, 330D2 L, 320D2 GC, 314D LCR, 330D, 328D LCR, 320C, 336D2 L, 336E LH, 325B L, 320D RR, 314D CR, 315D L, 324D, 320D GC, 335F LCR, 323D2 L, 320E, 336F LN, 315C, 336D2 GC, 318D2, 325D, 323D2, 320D3, 336D2 XE, 325C, 336E H, 320C L, 323D, 320B, 336E LN, 349E L, 326 GC, 318D L, 315F LCR, 345C, 349E L VG, 385B, 365C L, 345D L, 352F, 385C, 374F L, 349E, 390D, 345D, 345C L, 385C L, 340D L, 365C, 385C FS, 340D2 L, 365B, 365B L, M325D L MH, 326GC, 325C L, 333, 323 GC, 335, 311D LRR, 350MHPU, 333 GC, 320D, 336D, 330, 320D2, 329D, 336D2, 326D2, 326D2 L, 329D2 L, 329D2, 349D, 349D2, 374D L, 390D L, 390F L, 349D2 L, 374F
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
