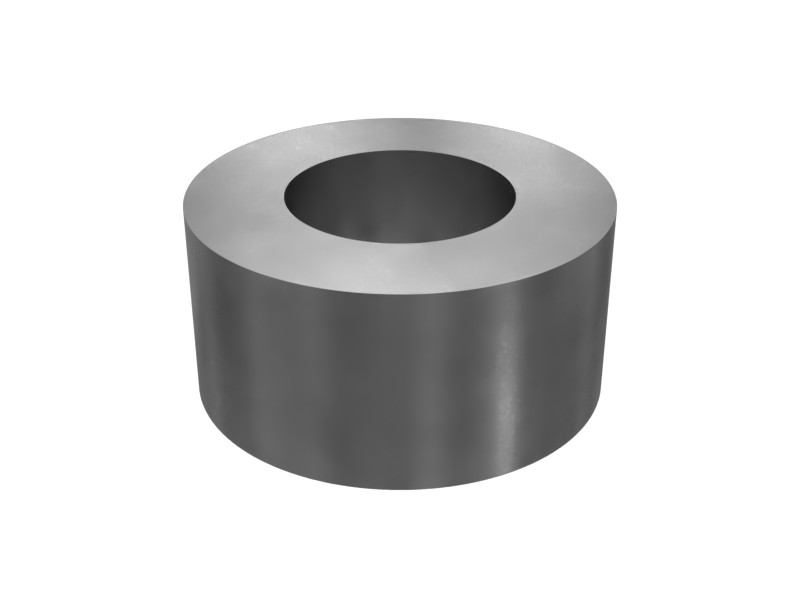

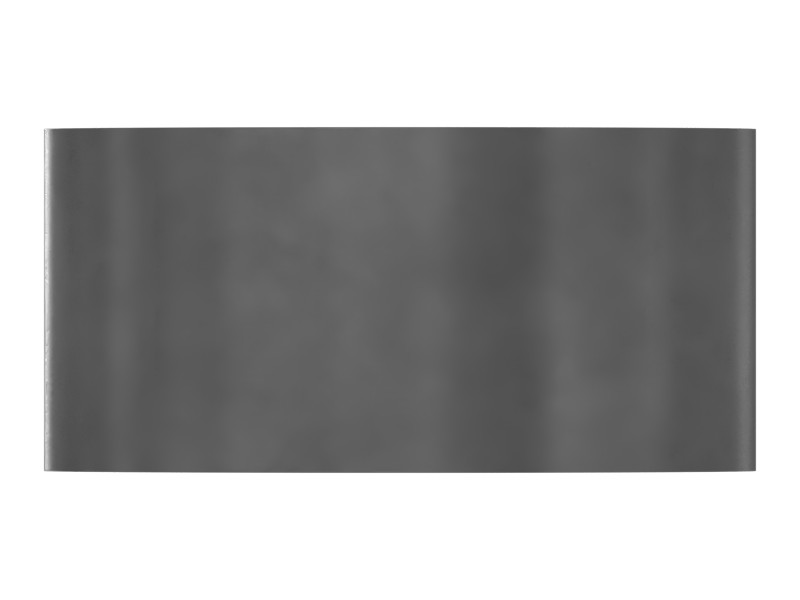

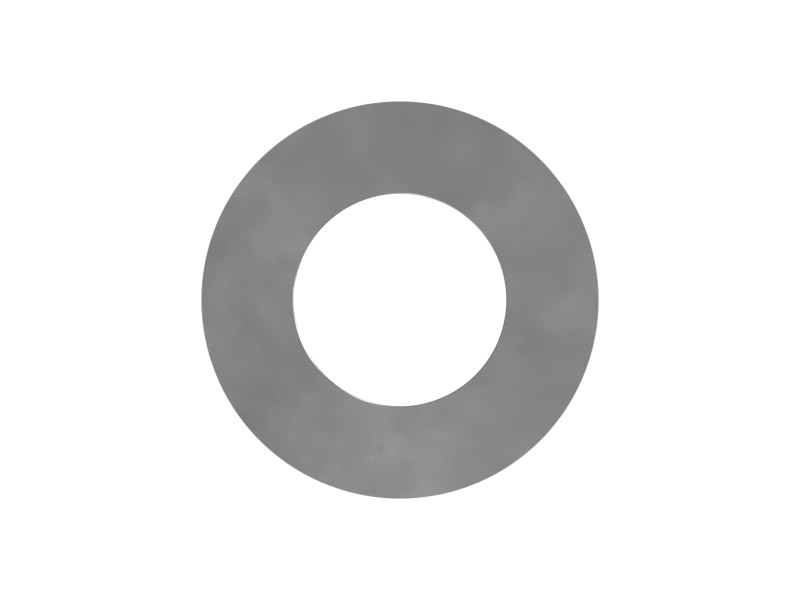

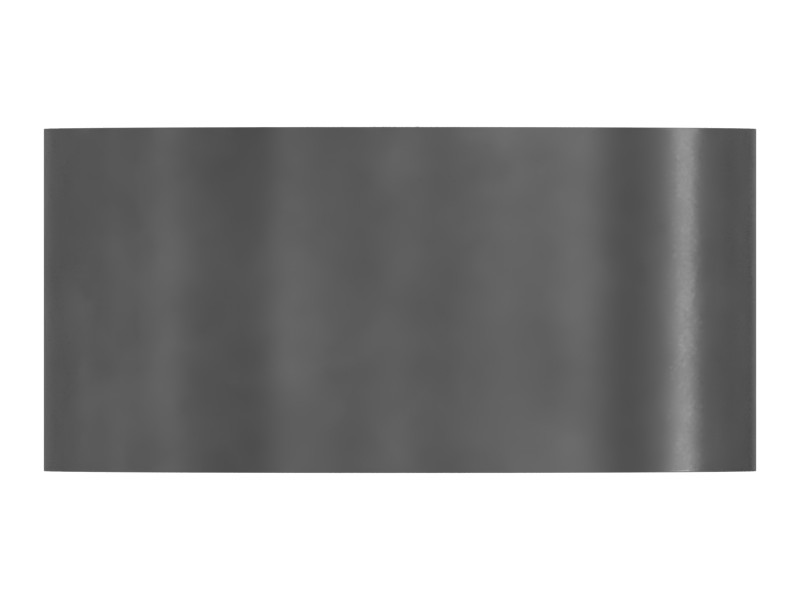

450-0998 12 mm Thick Engine Mount Round Hard Shim
Cat® 12 mm Thick Engine Mount Round Hard Shim
Description
Spacers are commonly used to provide additional stretch length. They are usually a section of tube with a fastener inserted through it; therefore, a short spacer may resemble a thick washer. Washers are sometimes used as small spacers in a fastener to reduce preload loss or narrow the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system. The spacer has a through hole through which the bolt is inserted. This means the spacer does not engage the threads of the bolt. Because a spacer cannot be tightened directly, a round outer profile is typically used.
Features
- Zinc electroplating provides a protective layer against corrosion caused by water and other elements in the air.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
The shim is used with bolts to secure the engine mount.
Specifications
| Center Hole Shape | Non-Threaded |
|---|---|
| Gasket Type | Flat |
| Outside Diameter | 25 mm (0.98 in) |
| Inside Diameter | 13.5 mm (531 in) |
| Material | Steel |
| Thickness | 12 mm (0.47 in) |
| Coating | Zinc |
Compatible Equipment
- Generator Sets: 3512B, C4.4, C7.1, G3516
- Track Loaders: 963, 953, 963K, 953K, 994K, 995
- Cold Planers: SE50 VT
- Dozers: D6T, D6N, D6T LGP, D3K2 LGP, D1, D6R II
- Excavators: 345D L, 352, 345C L, 349, 345C, 355, 349D L, 345D, 637K, 349D2 L, 349D2, 349D
- Off-Highway Trucks: 730, 735, 725, 793F, 794 AC, 796 AC, 797F, 785D, 793, 785, 740B, 725C2, 789
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 3512B, 352, 355, 637K, 725, 725C2, 730, 735, 740B, 785, 785D, 789, 793, 793F, 794 AC, 796 AC, 797F, 953, 953K, 963, 963K, 994K, 995, C4.4, C7.1, D1, D3K2 LGP, D6N, D6R II, D6T, D6T LGP, G3516, SE50 VT |
|---|---|
| Equipment Type | Excavators, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
