Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size | M30 mm (0 in) |
| Thread Size (Diameter × Pitch) | M30X3.5 mm |
| Bolt Length | 120 mm (4.724 in) |

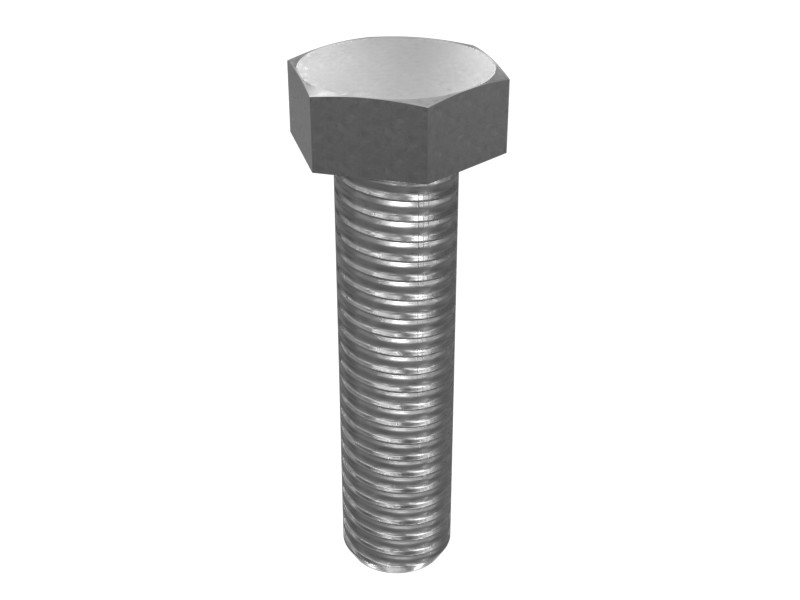

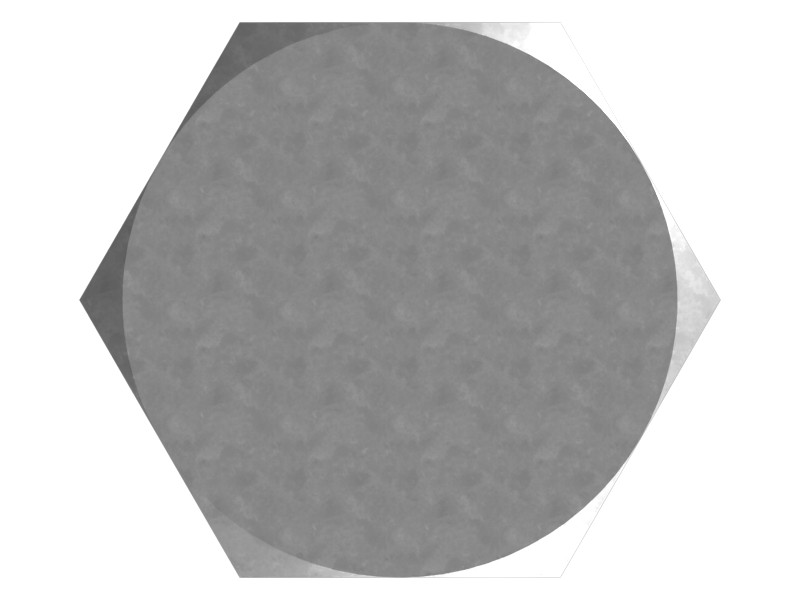

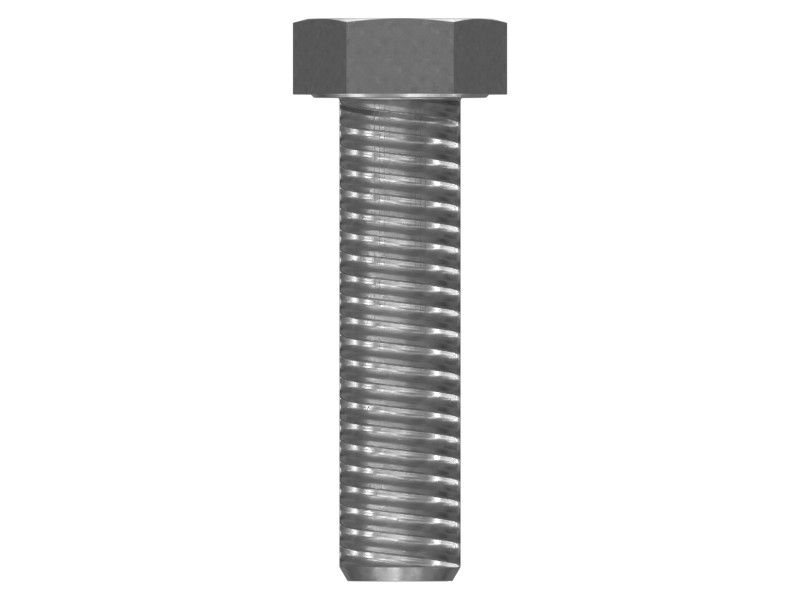

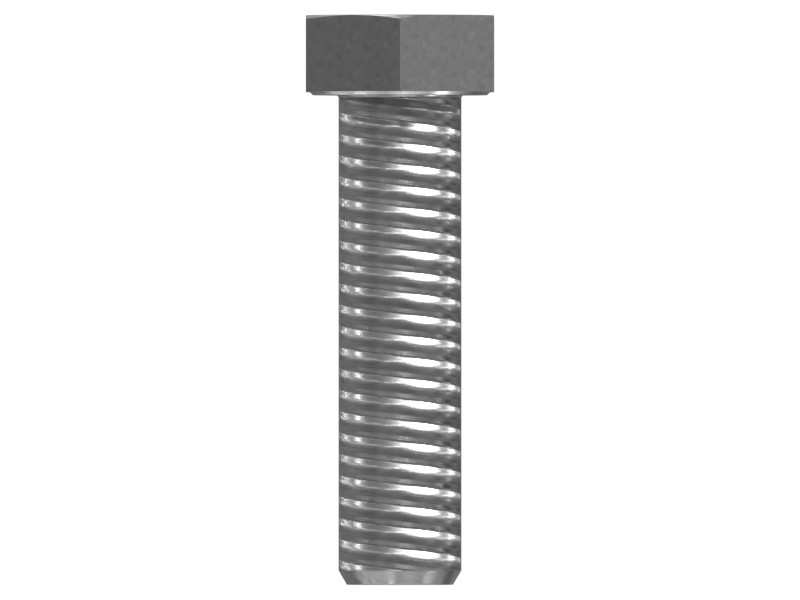

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 54 mm (2.126 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 349F L, 316 GC, 350, 352, 323 GX, 355, 349, 320D3 GC, 323D L, 320D FM, 320D GC, 320D2 L, 320D2 GC, 320D L, 315D L, 323D2 L, 318D2, 323D, 318D2 L, 336F, 320D3, 352F, 349D L, 345D L, 340, 320 GX, 349E L, 349E L VG, 336, 316 GX, 320D2, 320D, 349D2, 349D2 L, 349D
Additional information
| Machine Model | 315D L, 316 GC, 316 GX, 318D2, 318D2 L, 320 GX, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 323 GX, 323D, 323D L, 323D2 L, 336, 336F, 340, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 350, 352, 352F, 355 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
