Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

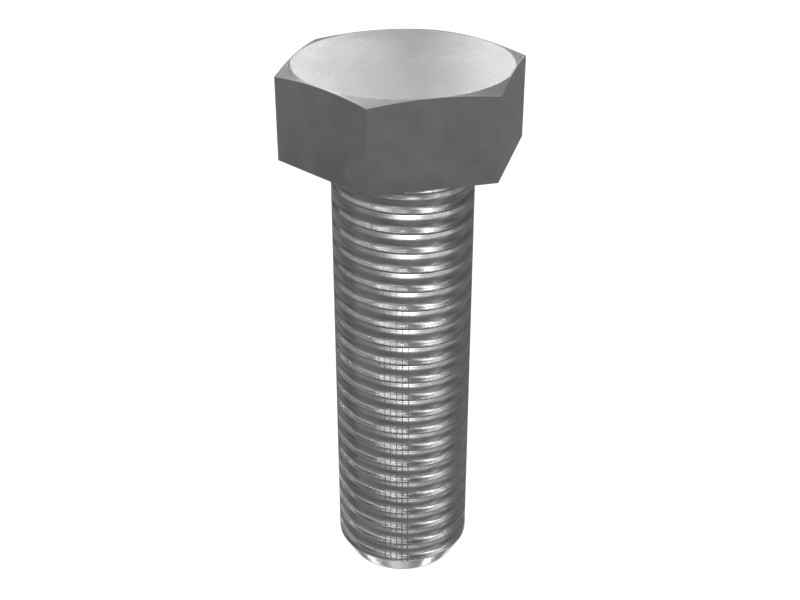

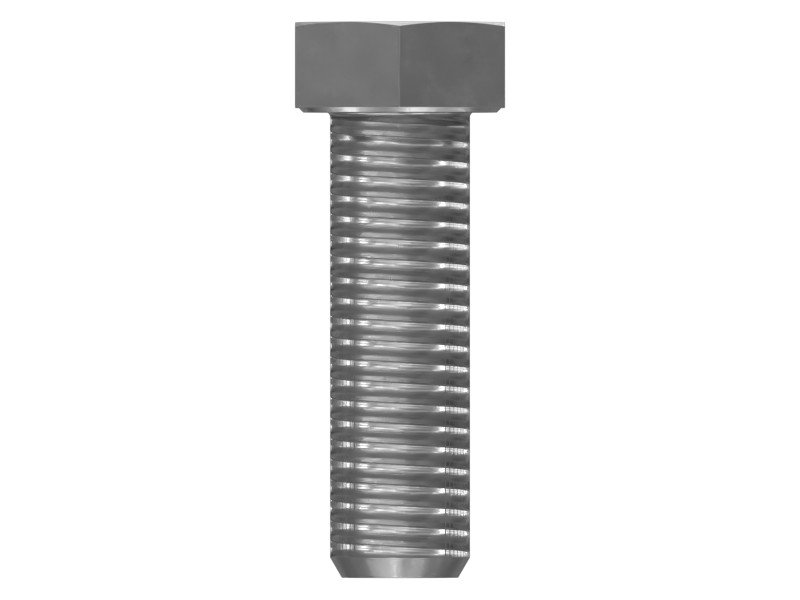

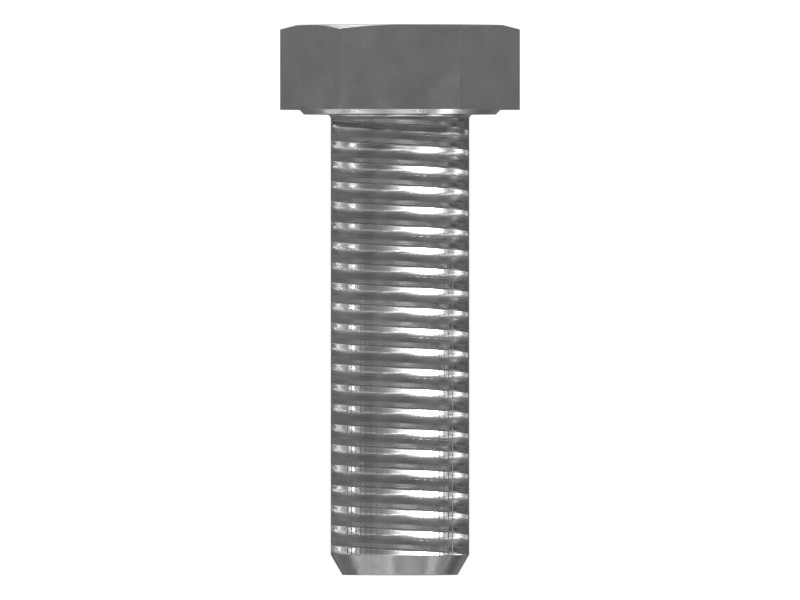

Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M24 mm (0 in) |
| Thread Size (Diameter × Pitch) | M24X3 mm |
| Bolt Length | 80 mm (3.15 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 9 mm (0.354 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512B
- Motor Graders: 349 GC, 316F
- Excavators: 374, 313 GC, 313, 316 GC, 349F L, 350, 349, 352, 352F, 395, 315 GC, 320 GX, 320 GC, 320, 323 GX, 320D3, 326, 326 GC, 336, 355, 312D2, 329D L, 324D L, 326D L, 349E L, 312 GC, 320D3 GC, 320D2 L, 312D L, 330D2 L, 312E, 318D2 L, 325D L, 329E L, 320D L, 323, 324D, 330D2, 315D L, 313F L, 314D LCR, 312D2 GC, 312D, 313D2 GC, 320E, 313D2, 323D L, 313D, 312D2 L, 312E L, 313F LGC, 320D GC, 314D CR, 320D2 GC, 330 GC, 329E, 323D, 323D2 L, 326GC, 313D2-GC, 312F, 323D2, 320D FM, 315, 311D LRR, 323GC, 318D L, 330GC, 315F LCR, 318D2, 325, 390D, 374F L, 345D L, 385C, 349E, 365B, 345C L, 365C, 385C L, 345C, 385B, 390F, 365B L, 349D L, 365C L, 312 GX, 333, 313 GX, 385C FS, 345D, 349E L VG, 340, 323 GC, 3101, 316 GX, 390F L, 320D2, 330, 320D, 326D2, 329D2 L, 326D2 L, 329D, 329D2, 374D L, 374F, 390D L, 349D
Additional information
| Machine Model | 3101, 311D LRR, 312 GC, 312 GX, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2-GC, 313F L, 313F LGC, 314D CR, 314D LCR, 315, 315 GC, 315D L, 315F LCR, 316 GC, 316 GX, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 336, 340, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 350, 3512B, 352, 352F, 355, 365B, 365B L, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
