Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M16 mm (0 in) |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Locking Feature | None |
| Material | Low Alloy Steel |
| Bolt Length | 50 mm (1.969 in) |
| Thread Size (Diameter × Pitch) | M16X2 mm |

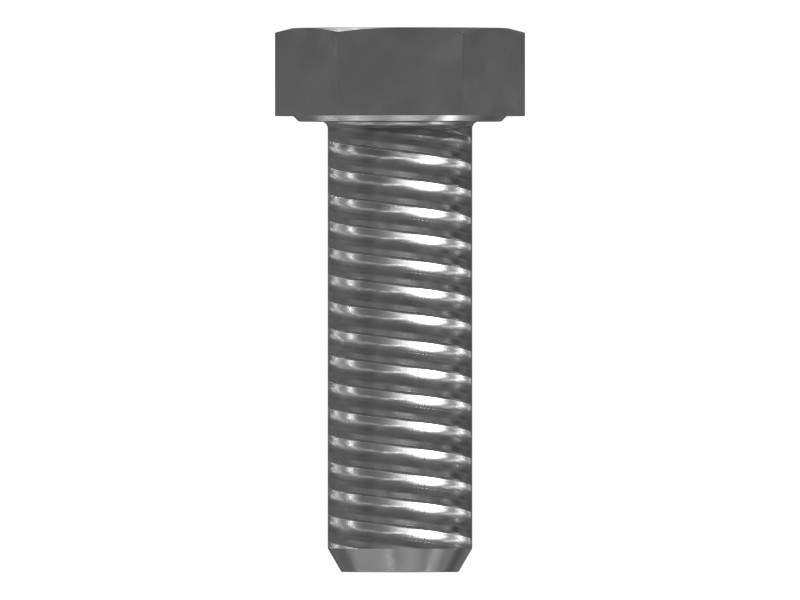

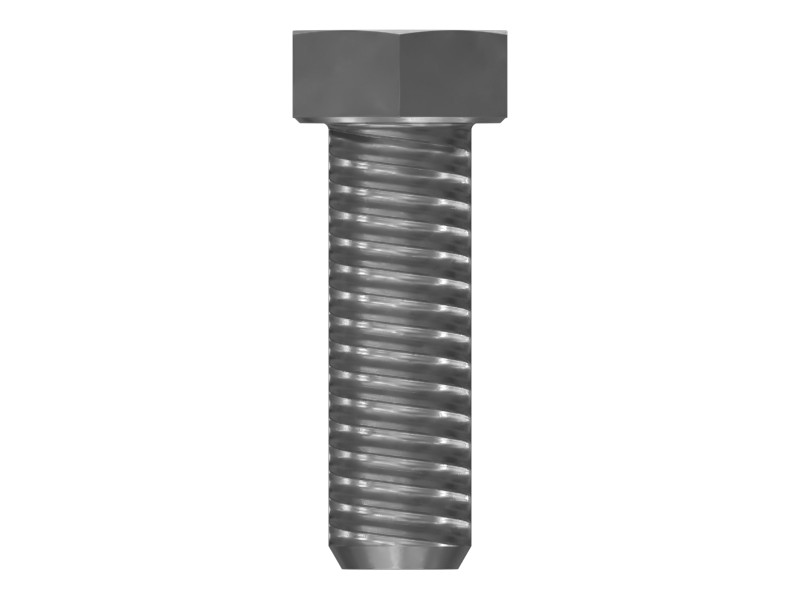

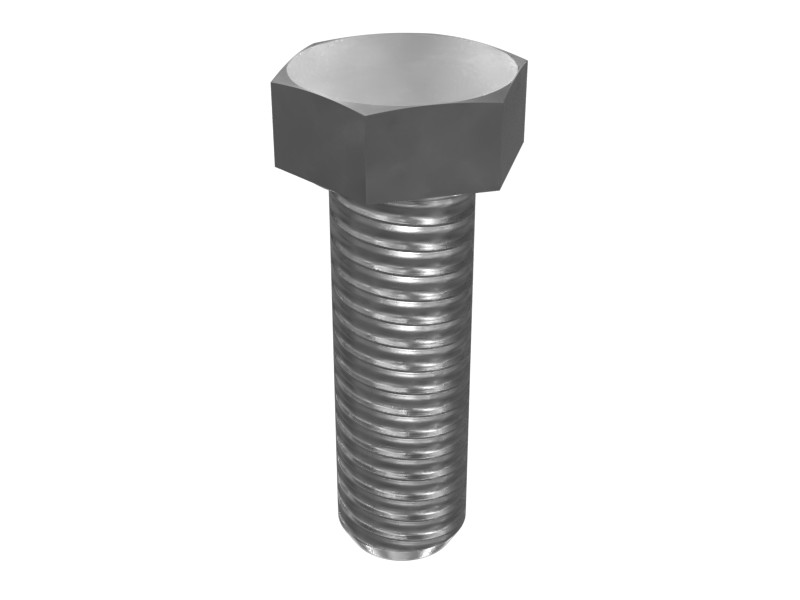

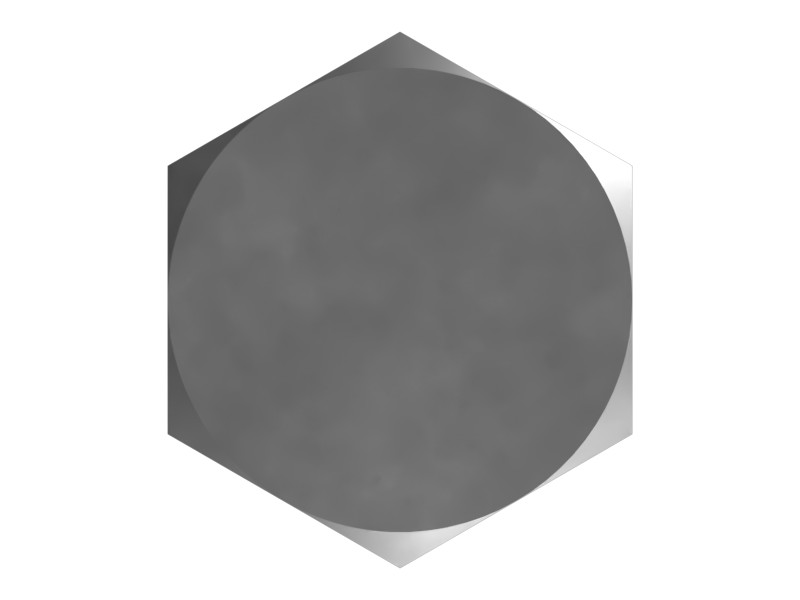

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 12 mm (0.472 in) |
Compatible Equipment
- Motor Graders: 316F, 349 GC
- Generator Sets: C7.1, 3512B
- Mini Excavators: 307C, 307D
- Excavators: 349F L, 374, 330D L, 340, 350, 336F, 352, 323D, 324D L, 323D L, 336F L, 395, 336, 3101, 336D2 L, 355, 365C, 349D L, 345C, 345D L, 349E L, 345 GC, 340D2 L, 349, 390F, 345C L, 385B, 352F, 349E L VG, 390D, 320D FM, 320 GC, 320, 320D3, 326, 336 GC, 326 GC, 333 GC, M325D L MH, 313D2, 333, 325D L, 312D L, 323, 312D2 L, 329E L, 312E, 336D2 GC, 336E LH, 329D L, 329E, 320D GC, 311D LRR, 312D, 326GC, 323D2 L, 312E L, 336E, 330D2, 313F L, 328D LCR, 336E L, 320D L, 314C, 323D2, 312D2, 320D2 GC, 325C, 320E, 336D L, 320D2 L, 325D, 336E H, 318D2 L, 314D LCR, 315F LCR, 312C L, 336F LN, 330 GC, 324D, 336F L XE, 330GC, 312D2 GC, 320D RR, 312C, 311C, 313D2 GC, 330D2 L, 313D, 330D, 312F, 313F LGC, 350MHPU, 336E LN, 314D CR, 315D L, 335F LCR, 349E, 374F L, 365C L, 345D, 365B, 365B L, 336D2, 374D L, 349D2, 390F L, 349D2 L, 320D2, 329D2 L, 320D, 336D, 374F, 330, 329D, 329D2, 326D2 L, 326D2, 390D L, 349D
Additional information
| Machine Model | 307C, 307D, 3101, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315D L, 315F LCR, 316F, 318D2 L, 320, 320 GC, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325D, 325D L, 326, 326 GC, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D2 L, 345 GC, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350MHPU, 3512B, 352, 352F, 355, 365B, 365B L, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 390D, 390D L, 390F, 390F L, 395, C7.1, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
