Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M16 mm (0 in) |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 45 mm (1.772 in) |

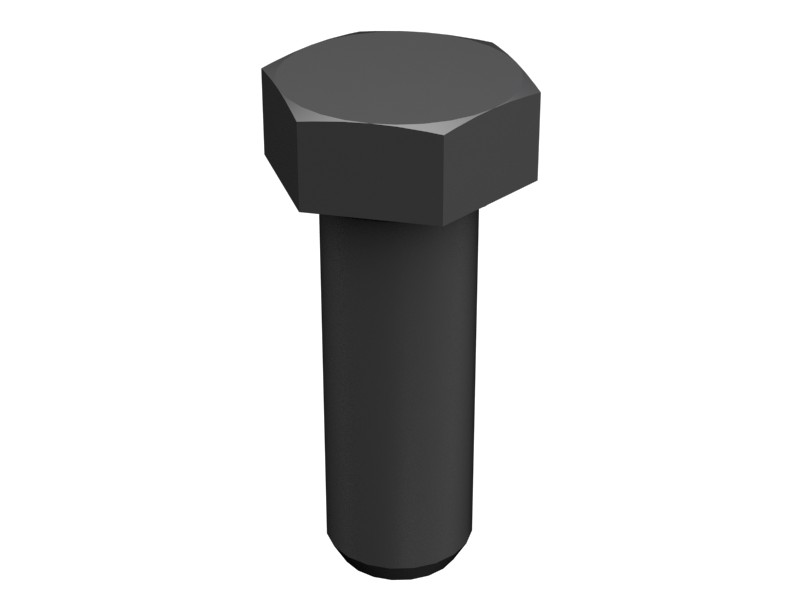

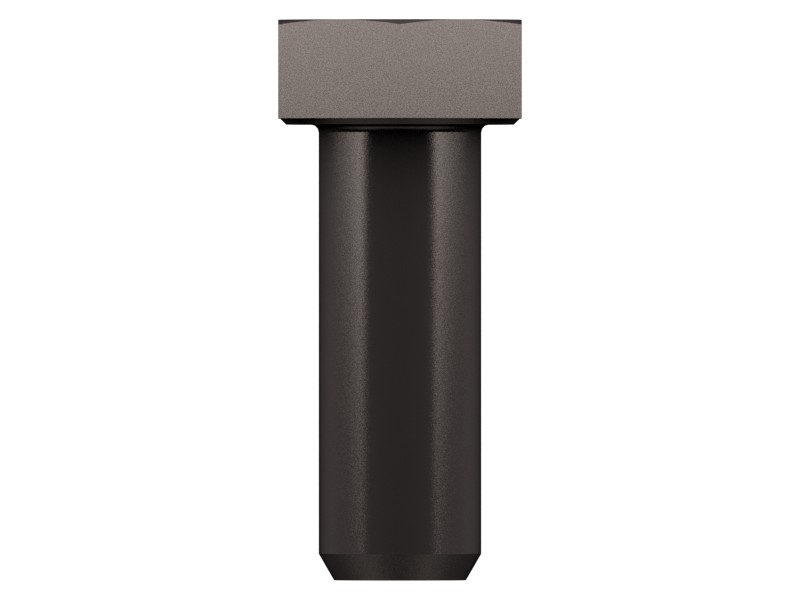

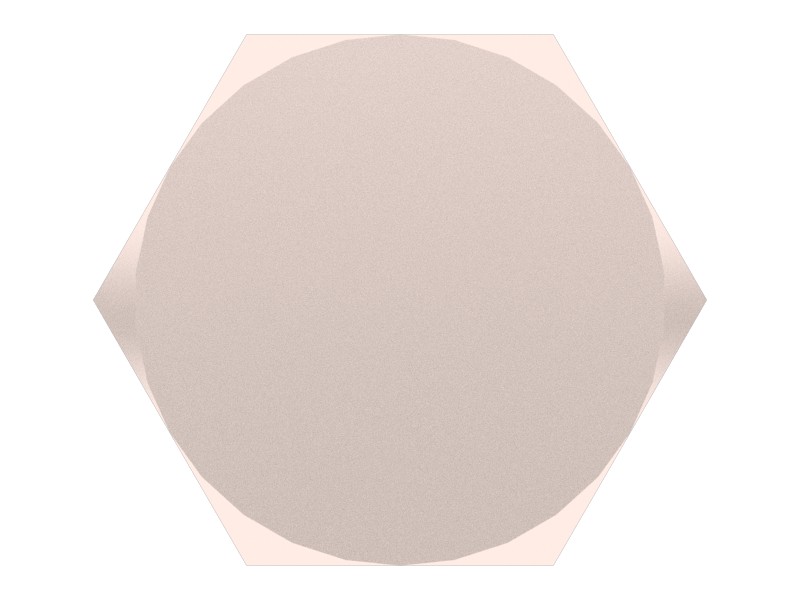

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 5 mm (0.197 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Motor Graders: 316F, 349 GC
- Generator Sets: 3512B
- Wheel Excavators: M320, M315, M315GC
- Excavators: 313 GC, 349F L, 374, 330D L, 313, 316 GC, 340, 395, 316 GX, 312 GX, 328D LCR, 329E L, 336D2 L, 314D LCR, 336D L, 336F L XE, 320D L, 336E LN, 336F L, 336, 336D2 GC, 325D L, 318D2 L, 323, 336F, 330D, 311D LRR, 320D2 L, 330D2, 330 GC, 312C L, 320D GC, 323D L, 336E L, 320, 314D CR, 336 GC, 329D L, 330GC, 336D2 XE, 312C, 324D L, 335F LCR, 315D L, 336E H, 336E, 345D L, 345C, 345D, 390F, 352F, 349D L, 365C L, 340D2 L, 349E L, 352, 349E, M325D L MH, 325, 345 GC, 335, 320D3 GC, 320 GX, 315 GC, 323 GX, 313 GX, 312E, 312D L, 323D2 L, 329E, 326, 325D, 312D2, 336E LH, 320D3, 313D2, 323D2, 324D, 320E, 312F, 326D L, 320D2 GC, 313F LGC, 336F LN, 315F LCR, 312E L, 320D FM, 312 GC, 320 GC, 350, 349, 333 GC, 326 GC, 333, 355, 323 GC, 312D, 318D2, 323GC, 318D L, 312D2 L, 374F L, 350MHPU, 330D2 L, 320D RR, 3101, 315, 326GC, 313F L, 323D, 313D, 349E L VG, 390D, 340D L, 320D2, 326D2, 336D2, 320D, 329D2 L, 329D2, 390D L, 374D L, 390F L, 349D2 L, 349D2, 326D2 L, 330, 374F, 336D, 329D, 349D
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
