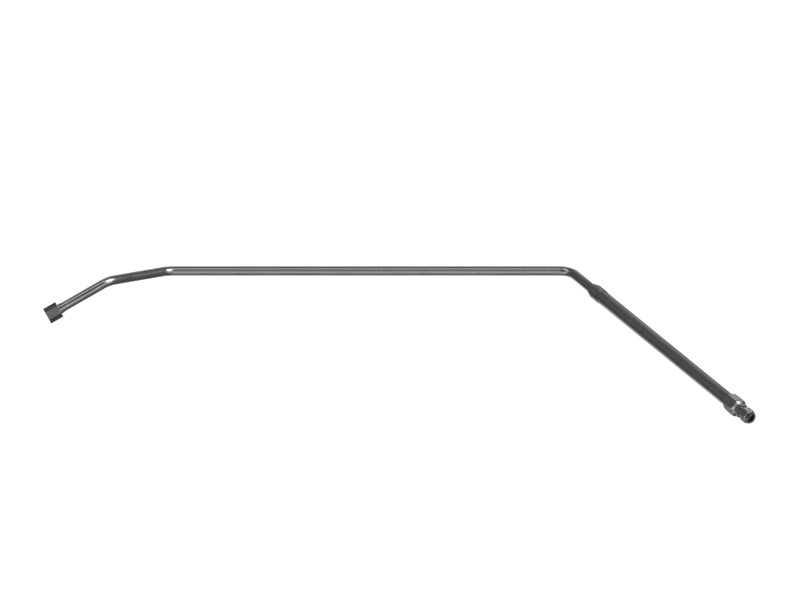

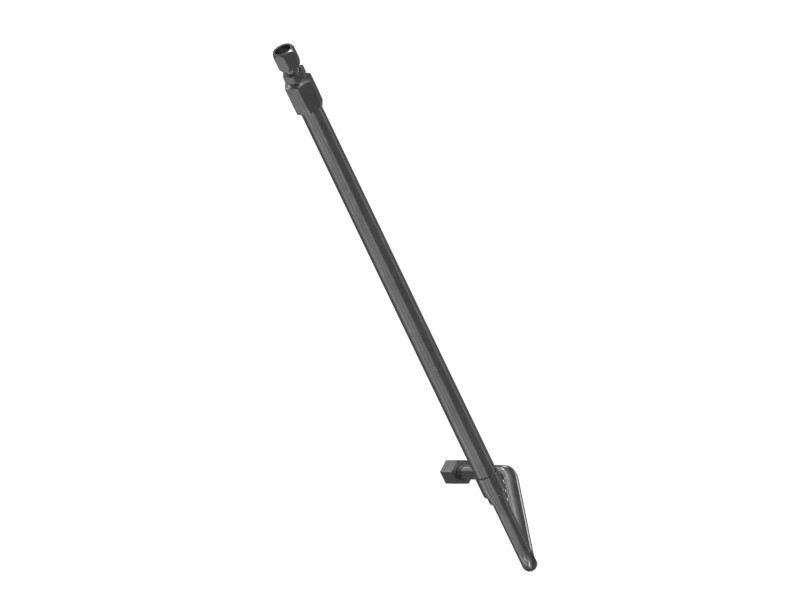

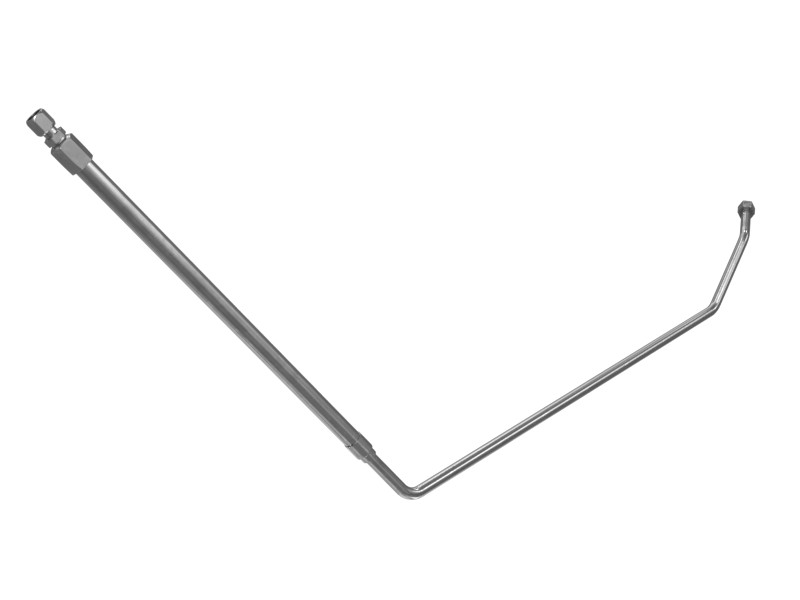

436-5801 Fuel Line Hybrid Assembly
Cat® Fuel Filter Line Hybrid Group with 7/8" 37° Flare Nut X 3/4" 37° Flare Straight Coupling
Description
Hybrid line assemblies use both flexible reinforced hydraulic hose sections and rigid tube sections and are designed to direct liquids and gases through machine systems. These hybrid assemblies are made of premium materials and can withstand the application-specific pressures of Cat heavy-duty equipment, meeting vibration resistance and flow requirements.
Specifications
| Hose Warning | Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer's couplings or the use of Caterpillar couplings with other manufacturer's hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3. |
|---|---|
| Connector Type | Fitting (both ends) |
| Fitting Size | -8 Female 37° Flare; -10 Female 37° Flare in |
| Flange Type | N/A |
| Hose Size, Minimum Inside Diameter | 13 mm (0.50 in) |
| Length | Not Specified mm (Not Specified in) |
| Material | Stainless Steel; Medium Pressure Fuel and Oil Hose |
| Nut Model | Flared |
| Thread | 3/4-16; 7/8-14 |
Compatible Equipment
- Dozers: D11T, D11R
