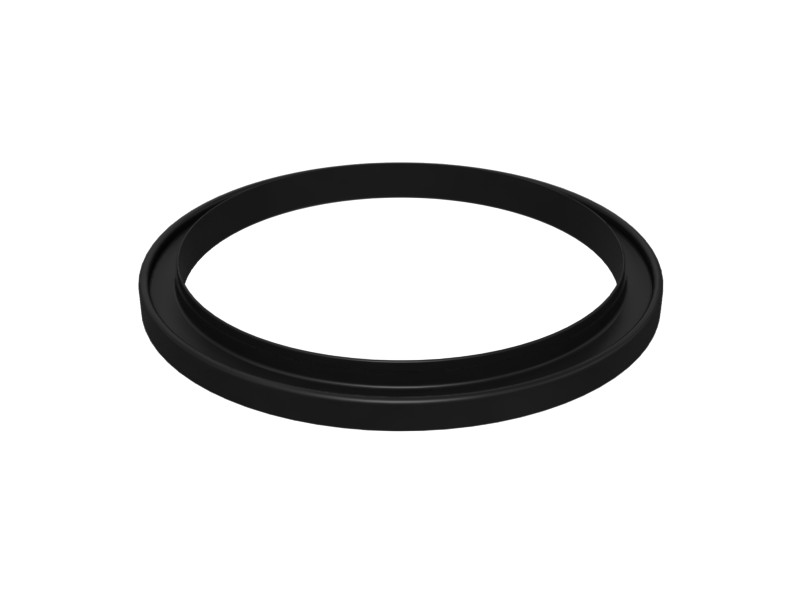

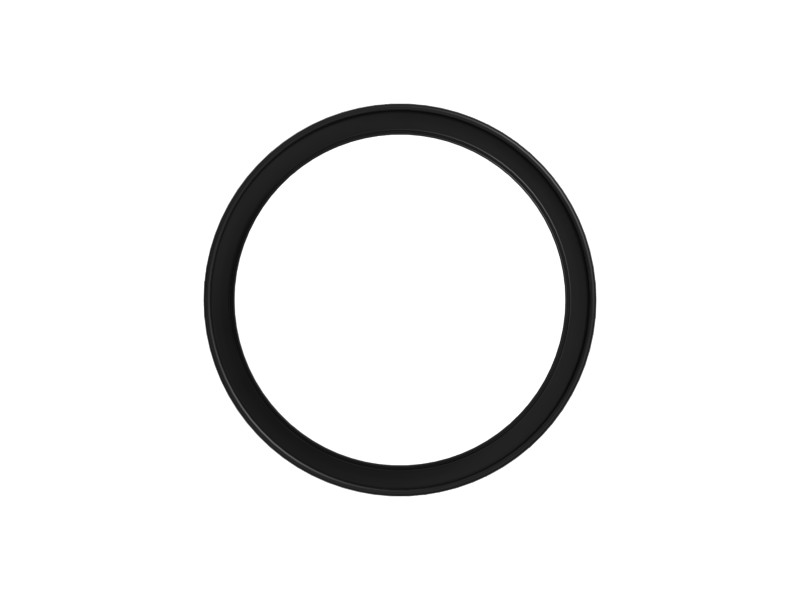

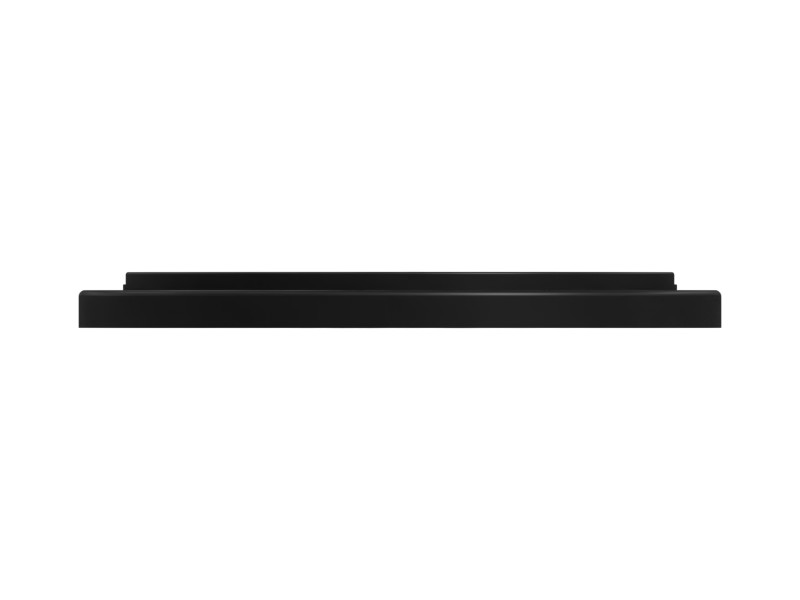

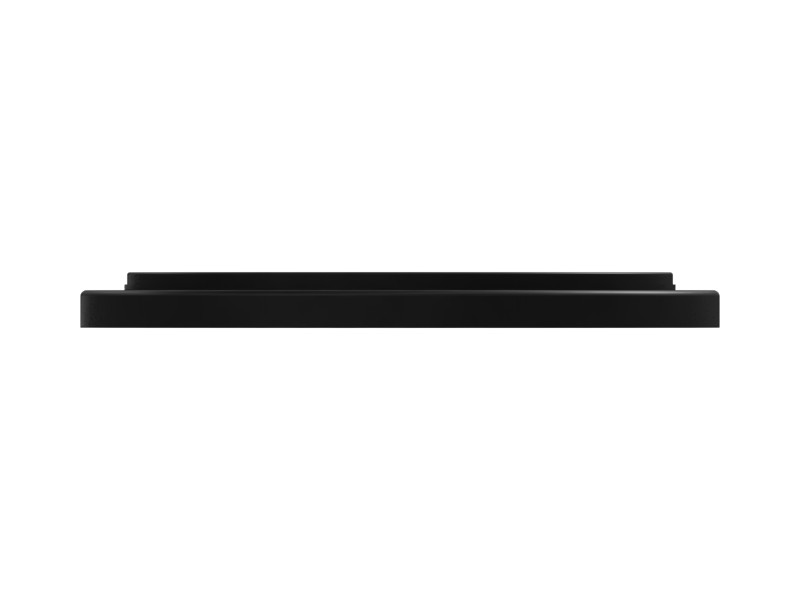

Description
The crankshaft seal is used to retain engine oil and prevent external contaminants from entering the engine oil system.
Seals for dry applications (air-to-oil interface) typically include a primary sealing lip that prevents engine oil leakage and a dust lip. In wet applications (oil-to-oil interface), the dust lip is replaced with an auxiliary lip that can pump external fluid away from the engine. Some seals have a plastic sleeve to assist with the installation process.
Features
- For counterclockwise crankshaft rotation
- Material: Plastic (Polytetrafluoroethylene) (PTFE)
- Air-to-oil interface
- Shaft Diameter: 230 mm (9.05 in)
- Bore Diameter: 272 mm (10.74 in)
- Outside Diameter: 272.33 mm (10.72 in)
- Cat crankshaft seals are precision-engineered for this extremely demanding application. They must withstand high rotational speeds, high temperatures and high-frequency axial movement.
- Cat sealing systems undergo a robust design, testing and validation process. Protect your investment with the latest Genuine Cat seals.
Applications
Used as needed for servicing Cat engine crankshafts. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polytetrafluoroethylene (PTFE) Plastic |
|---|
Compatible Equipment
- Generator Sets: 3512B, 3516C
- Engines: C175-16
- Dozers: D11N, D11R
- Excavators: 3516B, 3512C, 3508B
