Description

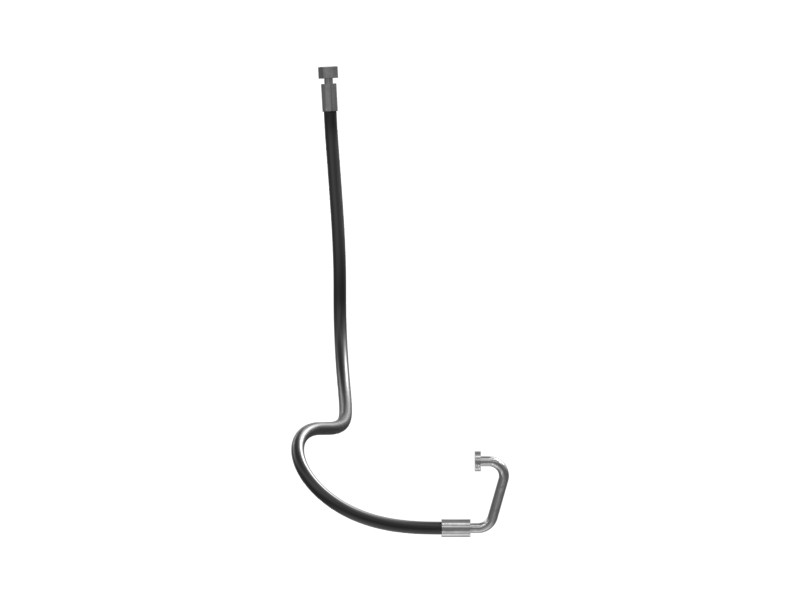

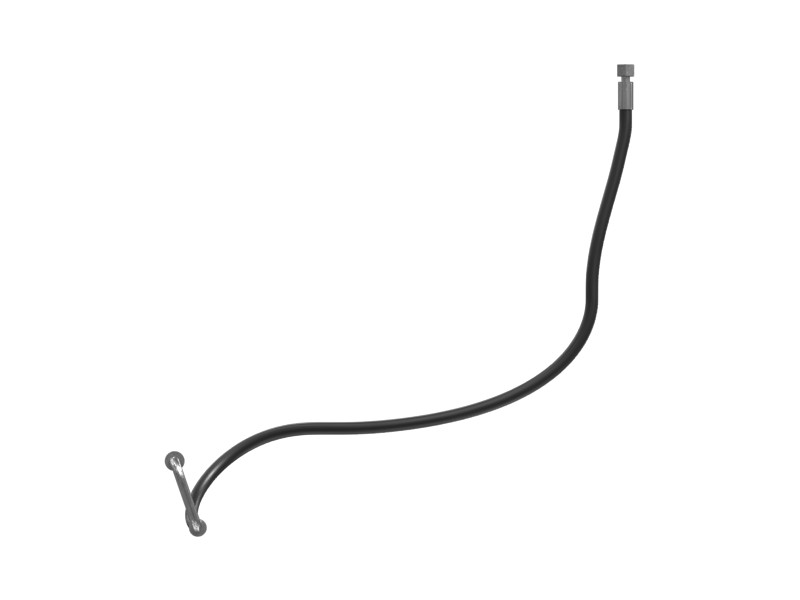

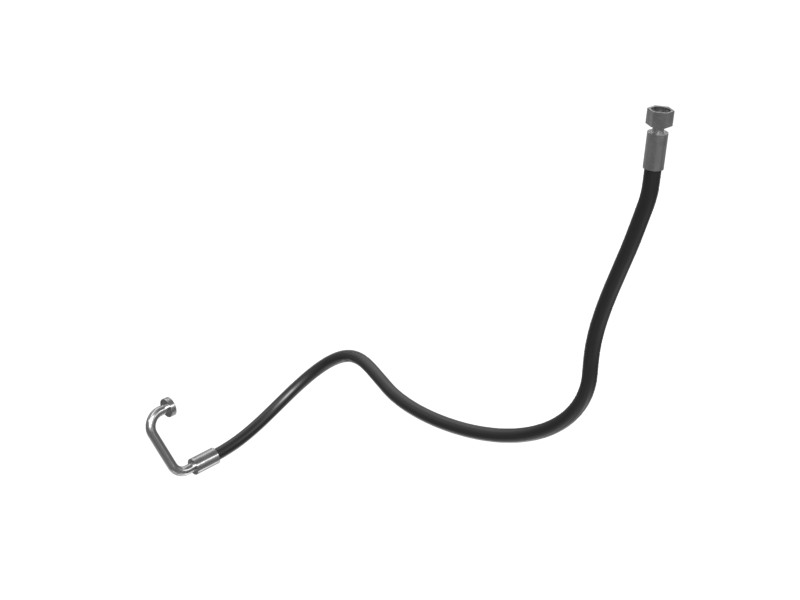

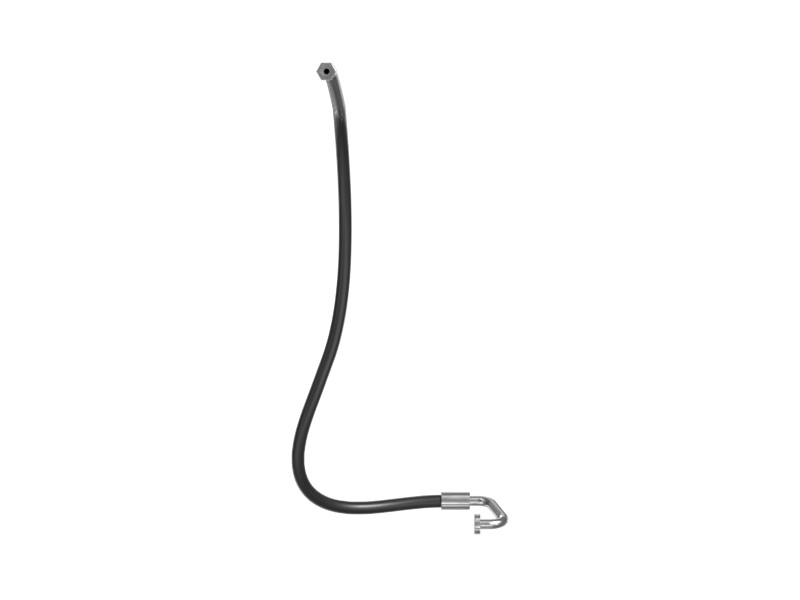

Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.
The Cat XT ES hose family is designed and manufactured by Caterpillar for high-pressure hydraulic applications. Pressure ratings range from 2500 to 6000 psi (17.5 to 42.0 MPa). The ES (Enhanced Spiral) construction is a Caterpillar proprietary design that is impulse tested to twice the industry standard. Cat hose has a working radius of only half the SAE bend radius, allowing tighter routing in a wide range of applications.
Cat ToughGuard™ hose features an abrasion-resistant cover for use in extremely harsh operating conditions. Tested to more than 2000,000 SAE abrasion cycles, it offers outstanding resistance to the leading cause of hose failure — abrasion.
The hose is made with a fabric-reinforced synthetic rubber tube and four or six layers of spiral-wrapped high-tensile steel wire reinforcement (separated by layers of synthetic rubber). The rubber cover is oil-, weather- and abrasion-resistant.
Specifications
| Hose Type | 4 or 6 Wire Spiral – XT-6ESTG Hose |
|---|---|
| Hose Inside Diameter | 19.05 mm (0.75 in) |
| Material | High Pressure Hose |
| Overall Length | 2188 mm (86.142 in) |
| Weight | 4.31 kg |
Compatible Equipment
- Motor Graders: 14
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
