Description

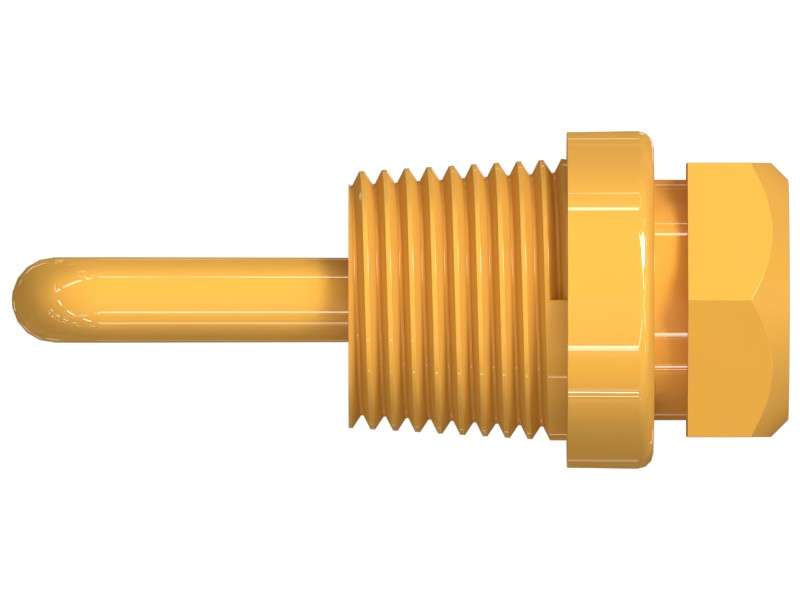

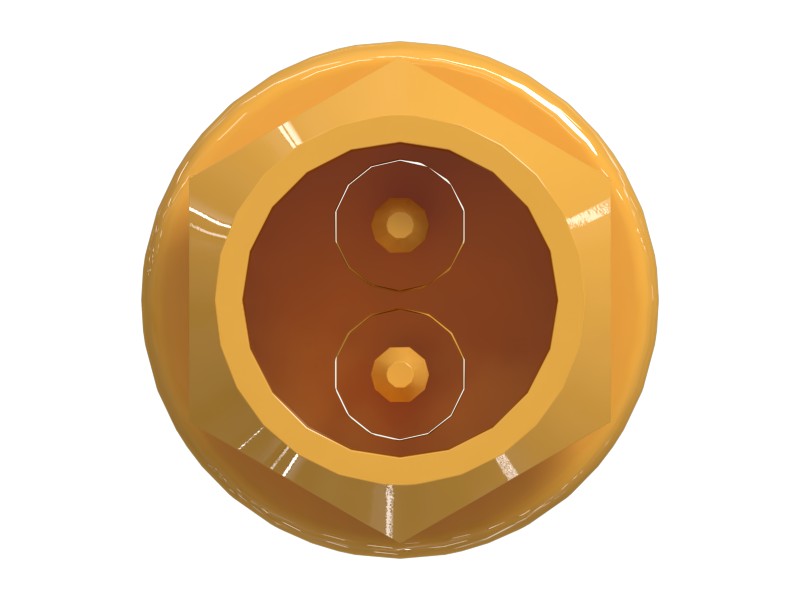

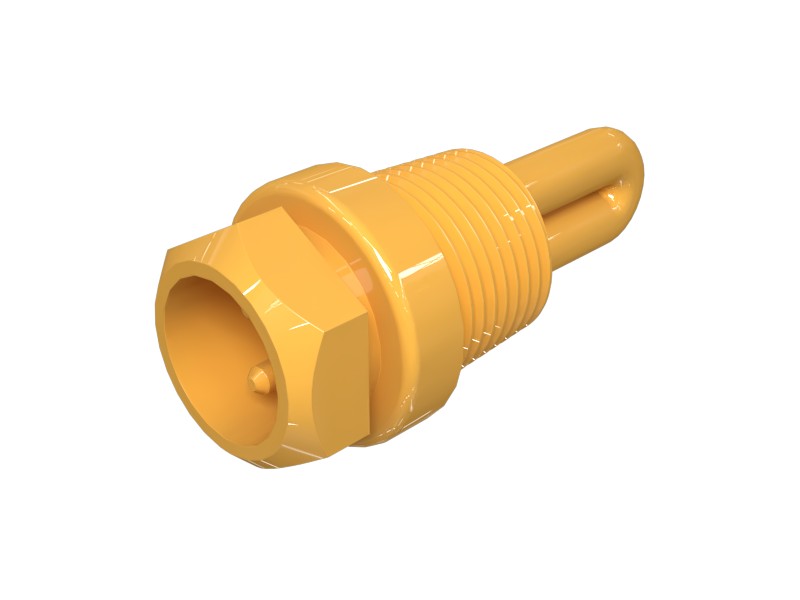

The heater core (for example, part number 431-6672) is an important component of the jacket water heater, which is an immersion heater installed in the water jacket around the engine block to heat the coolant in cold weather.
Features
- Jacket water heater core
- Power: 600 W
- Voltage: 230 Volts
- Core thread size: 3/4-14 NPT
- Hex Size: 26 mm (1.01 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Current | Not Specified Amps |
| Hex Size | 26 mm (1.01 in) |
| Outside Diameter | 31.8 mm (1.25 in) |
| Length | 58 (Filter Element) mm (2.28 (Filter Element) in) |
| Thread Size (in – TPI) | 3/4-14 NPT in |
| Overall Length | Not Specified mm (Not Specified in) |
| Power | 600 Watts |
| Thread Size | 3/4-14 NPT in |
| Voltage | 230 Volts |
| Weight | 0.3 kg (0.66 lb) |
Compatible Equipment
- Generator Sets: C4.4
- Cold Planers: PL61
- Dozers: D4
- Mini Excavators: 305.5E, 305.5E2
- Excavators: 120 GC, 434F2, 428F, 323 GX, 306E2
- Asphalt Pavers: AP655F
Additional information
| Machine Model | 120 GC, 305.5E, 305.5E2, 306E2, 323 GX, 428F, 434F2, AP655F, C4.4, D4, PL61 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Dozers, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
