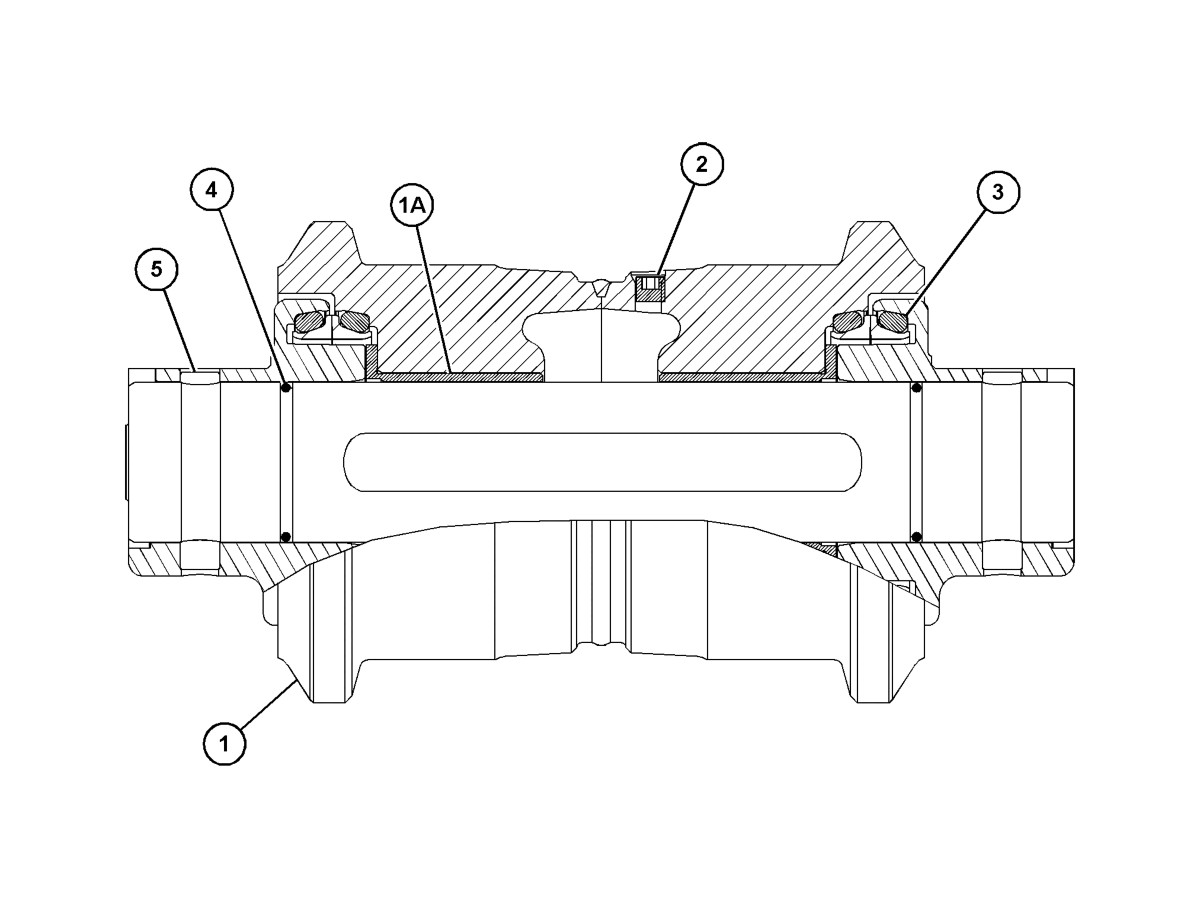

431-5566 Single Flange Track Roller Assembly
Cat® Track Roller Assembly (Single Flange) (Heavy Duty)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The track roller assembly guides the lower portion of the track belt between the front and rear idlers. The quality is suited to the equipment's requirements and meets your expectations.
Features
Type: Single Flange
Applications
Undercarriage system for Cat heavy duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Shaft Outside Diameter | 64.91 mm (2.556 in) |
|---|---|
| Mounting Width | 264.6 mm (10.417 in) |
| Application | Standard Application |
| Mounting Cap Bolt Hole Diameter | 21.5 mm (0.846 in) |
| Outer Flange Diameter | 195 mm (7.677 in) |
| Link Outside Spacing | 194 mm (7.638 in) |
| Inside Spacing | 86 mm (3.386 in) |
| Tread Diameter | 160 mm (6.299 in) |
| Shaft Length | 384 mm (15.118 in) |
| Mounting Cap Bolt Thread Size | M20 |
| Material | Sealants / Adhesives Adhesive |
| Compatible Carrier Roller | No |
| Flange Type | SINGLE FLANGE |
| Mounting Bolt Axial Spacing | 339 mm (13.346 in) |
| Mounting Bolt Lateral Spacing | 106 mm (4.173 in) |
Compatible Equipment
- Excavators: 330D2, 325D L, 329D L, 330D2 L, 329E L, 329D2 L, 329D2
