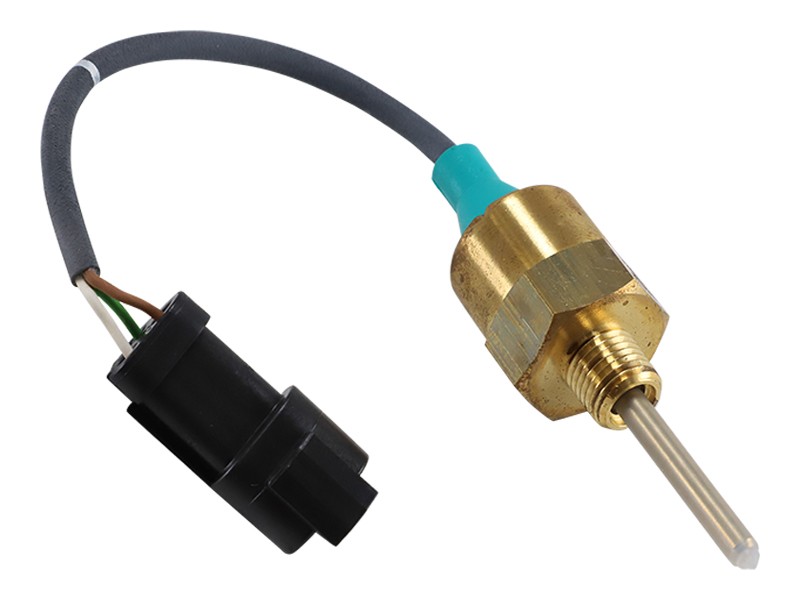

430-9454 4.5-36 Volt DC Coolant Level Sensor
The Cat® aftercooler coolant tank level sensor accurately monitors fluid level, ensuring the cooling system operates properly and dissipates heat efficiently
Description
A reliable level switch for engine and tank applications that provides a low-level warning. It uses a capacitive principle and a reliable design with no moving parts. Active sensors require an external power supply. Can be used as a ground switch or a high-side switch. Suitable for applications with engines.
Features
- For use in coolant or water
- Can be mounted vertically or horizontally
- Switch-to-ground logic
Applications
- Suitable for use in severe conditions (high vibration and high temperature)
- Cat fluid level sensors vary by application or tank. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Brass |
|---|---|
| Thread Size | 1/4-18 NPT in |
| Lead Length | 210 mm (8.3 in) |
| Connector Type | 3-Pin DT |
Compatible Equipment
- Generator Sets: 3516C, C9, C7.1, 3512E
- Track Loaders: 993, 990K, 826K, 994K, 995, 992
- Cold Planers: PL83, PL87
- Compactors: 824K, 834K, 825K, C13B
- Engines: C15, C32, C7
- Asphalt Pavers: AP655F, AP655F L
- Skid Steer Loaders: 24
- Motor Graders: 18, 16, 16M3
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D10T2, D8T, D9T, D8
- Excavators: 3512C, 3516E, 3508B
- Wheel Loaders: 988K, R3000H, R2900G
- Off-Highway Trucks: 789D, 777, 773, 770G, 775G, 772G, 789
Additional information
| Machine Model | 16, 16M3, 18, 24, 3508B, 3512C, 3512E, 3516C, 3516E, 770G, 772G, 773, 775G, 777, 789, 789D, 824K, 825K, 826K, 834K, 988K, 990K, 992, 993, 994K, 995, AP655F, AP655F L, C13B, C15, C32, C7, C7.1, C9, D10T2, D8, D8T, D9T, MD6200, MD6250, MD6310, PL83, PL87, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
