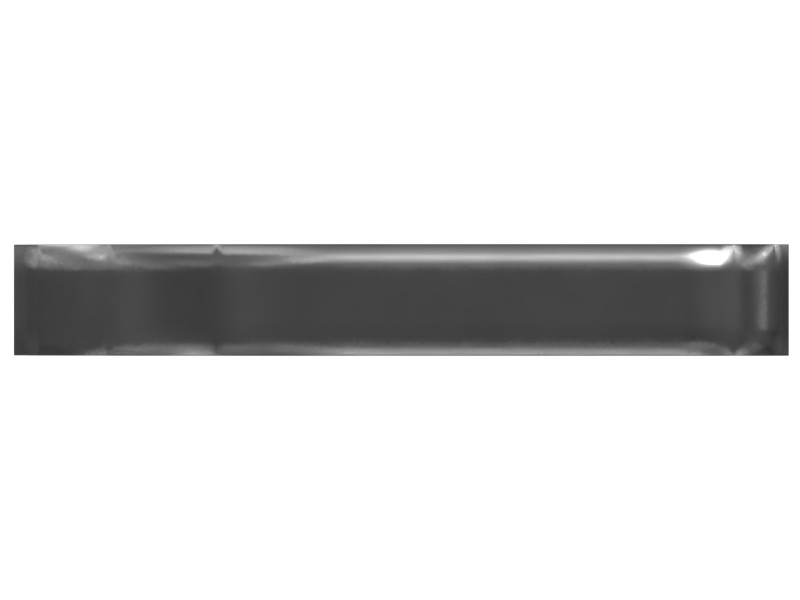

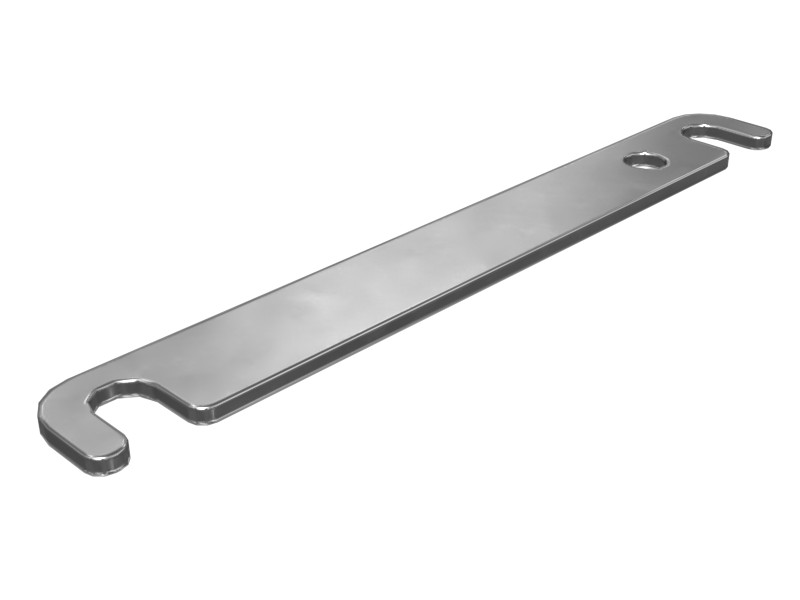

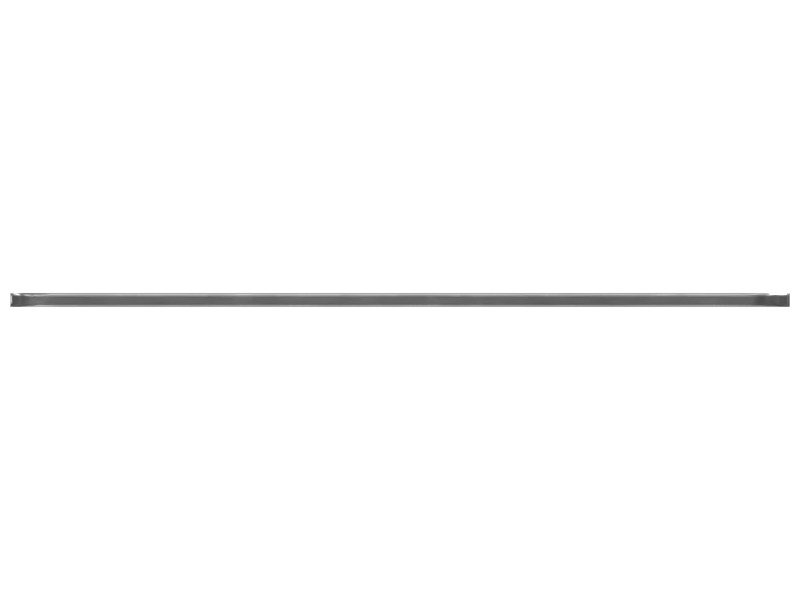

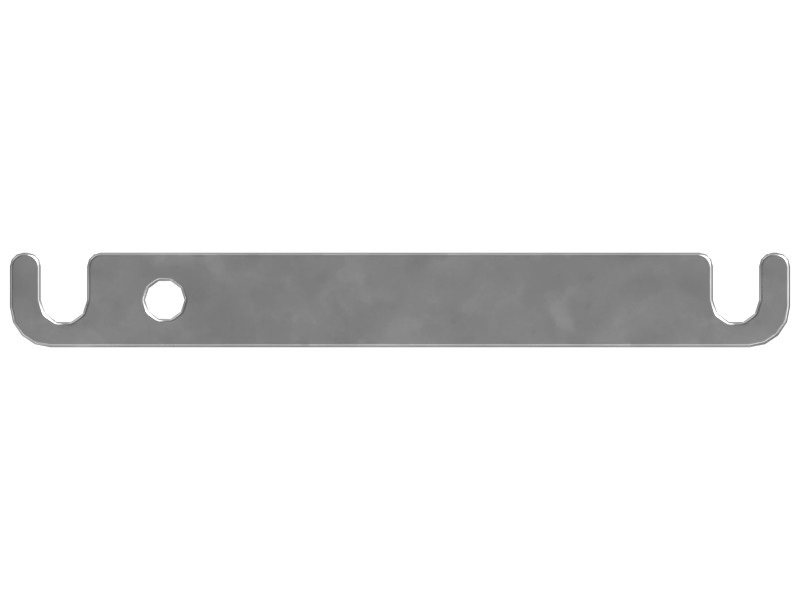

430-5703 2 mm Thick Cab Window Steel Shim
Cat® 2mm Thick Steel Shim for Cab Front Upper Windows
Description
Steel shims are used to fill gaps or spaces between objects or surfaces. Steel shims are versatile and are commonly used in applications where precise adjustment, alignment or leveling is required. They are designed in different shapes, sizes and materials to meet specific needs and are important for achieving precise results. They are used to create a tight fit between machined parts and securely hold machine components in place to prevent excessive wear on parts and fasteners.
Features
- Compensator adjusts the tolerance between mating parts
- A cost-effective solution compared to other alignment or clearance adjustment methods
- Reduces excessive wear on parts and fasteners
- High wear resistance
- Designed to withstand heavy loads and high pressure
- Distributes load evenly across multiple locations, reducing stress concentrations and avoiding localized damage.
Applications
This shim is used to adjust the axial clearance between the door and window used in the operator cab and the frame.
Specifications
| Inside Diameter | 4.09 in |
|---|---|
| Length | 116 mm |
| Outside Diameter | 6.26 in |
| Thickness | 2 mm (0.08 in) |
| Width | 14 mm |
Compatible Equipment
- Motor Graders: 349 GC, 316F
- Generator Sets: C7.1, 3512B
- Wheel Excavators: M320, M315
- Excavators: 374, 313 GC, 313, 349F L, 352, 3101, 336D L, 323, 336 GC, 323D, 320, 333, 340, 333 GC, 326, 326 GC, 336, 355, 323 GC, 320 GC, 349, 350, 330 GC, 395, 325, 315 GC, 350MHPU, 320D3 GC, 336F L, 323D2 L, 329D L, 324D L, 336F, 320E, 312F, 312E, 330D2, 320D RR, 324D, 336E L, 326GC, 329E, 336D2 L, 329E L, 312D L, 330D2 L, 312D2, 336F L XE, 312E L, 336E, 320D L, 336E H, 315D L, 312D, 313F L, 330GC, 335F LCR, 323GC, 336E LH, 336F LN, 323D2, 330D, 336E LN, 315, 328D LCR, 323D L, 374F L, 349E L, 390F, 345D, 345D L, 352F, 349E, 6015B, 349E L VG, 349D L, 345 GC, 335, 320D3, 6015, 329D, 329D2 L, 326D2 L, 330, 336D2, 326D2, 336D, 320D, 349D2 L, 390F L, 374F, 349D2
- Wheel Loaders: M314
Additional information
| Machine Model | 3101, 312D, 312D L, 312D2, 312E, 312E L, 312F, 313, 313 GC, 313F L, 315, 315 GC, 315D L, 316F, 320, 320 GC, 320D, 320D L, 320D RR, 320D3, 320D3 GC, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 326, 326 GC, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2 L, 329E, 329E L, 330, 330 GC, 330D, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 345D, 345D L, 349, 349 GC, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350MHPU, 3512B, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, C7.1, M314, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
