Description

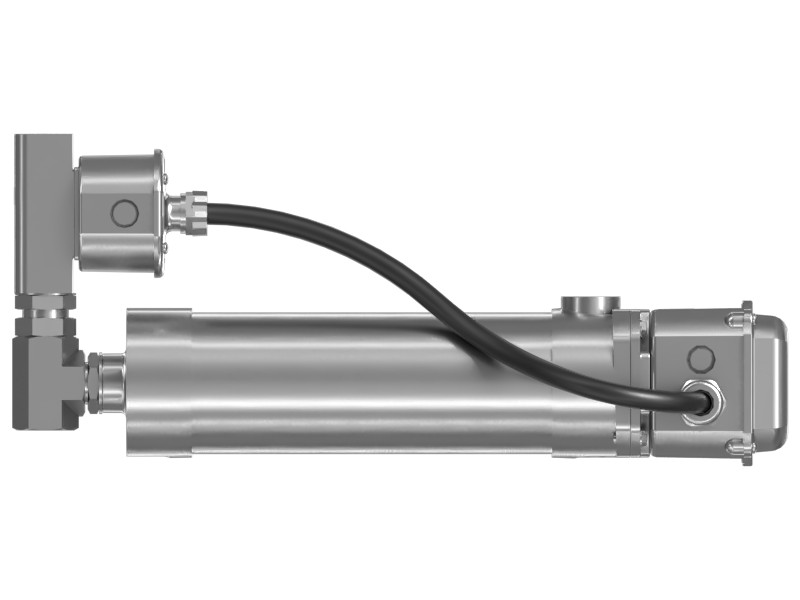

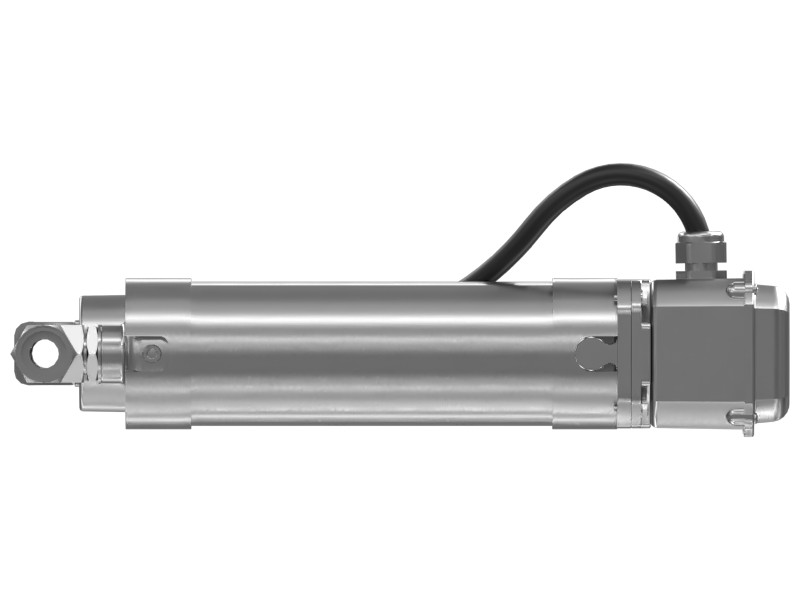

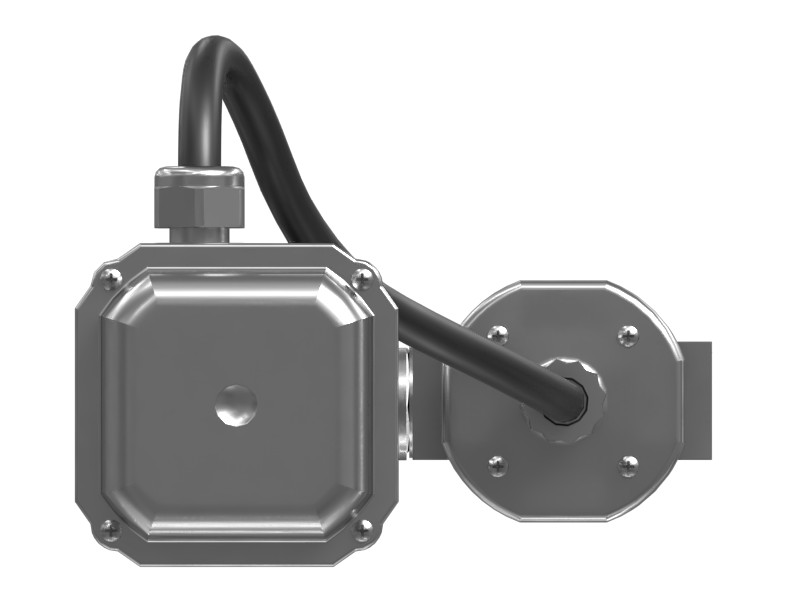

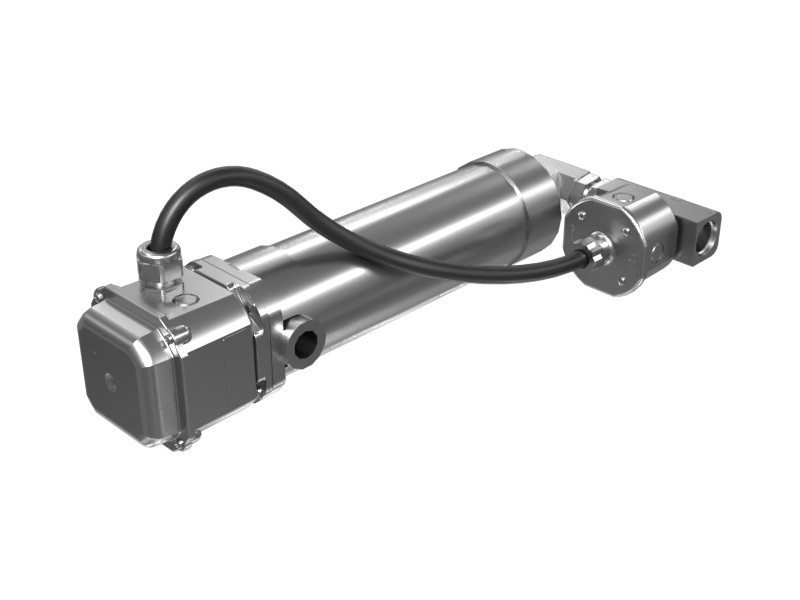

The jacket water heater is used to heat the coolant circulating in the engine cooling system. It consists of a heating element that transfers heat to the coolant and a thermostat that monitors and controls the coolant temperature. A T-shaped adapter is used to connect the heater to the cooling system. The housing protects the heating element, and the seal provides a leak-proof seal.
Attributes
- The upper limit of the coolant temperature range is between 73.9°C and 96.1°C
- Coolant temperature is controlled within a range of 37.8°C to 48.9°C
- Includes an adhesive plastic label containing information about the heater
- Housing is made of die-cast aluminum
Applications
The jacket water heater keeps the engine at the optimal temperature for continuous operation.
Specifications
| Material | Alloy Aluminum |
|---|
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E, G3516
- Excavators: 3516B, 3508B, 3512C, 6060
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
